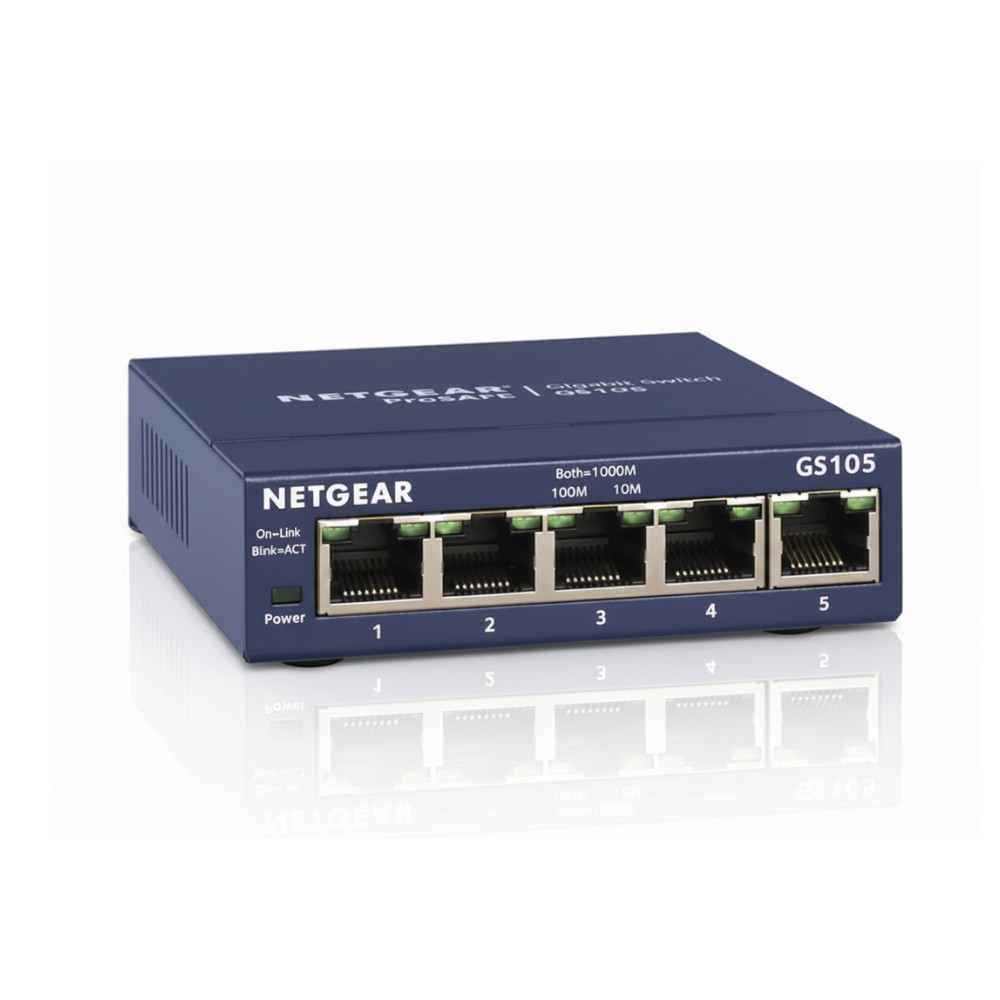

NETGEAR GS105NA 5-Port Gigabit Ethernet Unmanaged Switch Desktop or Wall Mount View larger

Netgear GS105NA 5-Port Gigabit Unmanaged Switch

New

In Stock

5-Port Gigabit Unmanaged Metal Switch
×




$38.00

  • New

Detailed Specifications

Netgear GS105NA 5-Port Gigabit Unmanaged Switch

Overview

The Netgear GS105NA is a foundational component for small-scale network expansion, providing five 10/100/1000 Mbps auto-sensing ports in a rugged, compact form factor. Engineered for reliability in high-traffic environments, this unmanaged switch is a "plug-and-play" solution that requires zero configuration, making it ideal for branch offices, retail points of sale, and edge deployments where technical oversight is minimal.

Its durable metal chassis acts as a passive heat sink, allowing for a fanless design that ensures silent operation in noise-sensitive areas like conference rooms or open-plan offices. From an infrastructure perspective, the GS105NA supports 802.3az Energy Efficient Ethernet to reduce operational costs and features a non-blocking switching architecture for maximum throughput. It integrates seamlessly into existing Cat5e or Cat6 cabling plants, providing a cost-effective way to eliminate bottlenecks at the network edge without the complexity of managed software layers. This unit is frequently deployed as a reliable desktop or wall-mounted solution for connecting workstations, printers, and NAS devices.

Specifications

Brand Netgear
Part Number GS105NA
Product Type Unmanaged Gigabit Switch
Total Ports 5 x RJ45
Speed 10/100/1000 Mbps
Bandwidth/Switching Capacity 10 Gbps
MAC Address Table 2K entries
Packet Buffer 128 KB
MTBF 3,197,945 hours
Power Consumption 2.7W (Max)
Input Power 12V / 0.5A DC
Dimensions (WxDxH) 94 x 101 x 27 mm
Weight 0.26 kg
Operating Temperature 0° to 50°C

Key Features

- Durable metal housing for superior heat dissipation.
- Fanless design ensures silent operation in any space.
- Energy Efficient Ethernet (IEEE 802.3az) compliance.
- Auto-MDI/MDIX eliminates the need for crossover cables.

Frequently Asked Questions

Does the GS105NA support Power over Ethernet (PoE)?

No, the GS105NA is a standard Gigabit Ethernet switch for data only. If you require PoE for IP cameras or access points, you should consider the GS105LP or GS305P models.

Is this switch rack-mountable?

The GS105NA is designed as a compact desktop switch. While it includes a wall-mount kit, it does not include brackets for standard 19-inch rack mounting due to its small physical footprint.

What is the benefit of the metal casing over plastic alternatives?

The metal chassis provides significantly better durability in commercial environments and acts as a passive heat sink. This allows the unit to operate reliably without internal fans, ensuring silent operation and a longer MTBF.
