Detailed Specifications

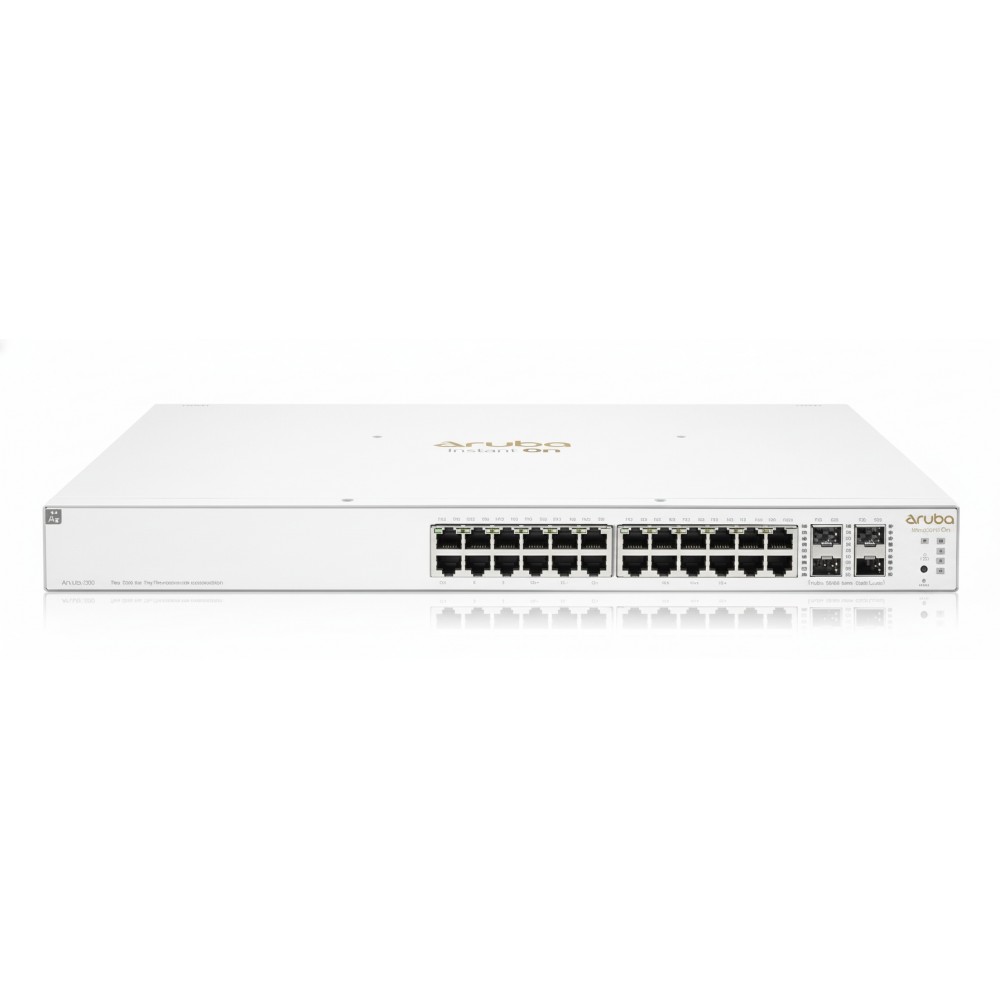

HPE JL683A Aruba Instant On 1930 24-Port Class-4 PoE+ Switch
Overview
The HPE JL683A is a 24-port Gigabit access switch with Class-4 PoE+ capability and four dedicated SFP+ uplink ports (1 Gb/10 Gb) built for small-to-medium business access-layer deployments where you need to power devices such as WiFi access points, IP cameras and VoIP phones. It offers a 195 W PoE budget across the 24 RJ-45 ports, and fibre uplink capacity via the four SFP+ ports to connect into a distribution or core switch without bottlenecks. It suits wiring closets, branch office networks or retail deployments supporting up to ~100 devices and integrates into the Instant On ecosystem for simple management.the 24 RJ-45 ports, and fibre uplink capacity via the four SFP+ ports to connect into a distribution or core switch without bottlenecks. It suits wiring closets, branch office networks or retail deployments supporting up to ~100 devices and integrates into the Instant On ecosystem for simple management.
Key Features
24× 10/100/1000 Mbps RJ-45 auto-sensing ports with Class-4 PoE+ (supports up to 30 W per port) × powers access points, cameras, phones.
Four dedicated SFP+ ports (1 Gb/10 Gb) for uplinks to distribution/core layer, eliminating copper uplink bottlenecks.
195 W total PoE budget allows powering dozens of PoE devices without external injectors.
Web, mobile-app and cloud-based management through the Instant On platform × simple deployment and monitoring with little full-time IT overhead.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Part Number | JL683A |
| Product Type | Access-Layer Managed Switch - 24-port Gigabit with PoE+ |
| Key Specification | Port Configuration: 24× 10/100/1000 RJ-45 + 4× SFP+ (1/10 Gb) |
| Key Specification | PoE Power Budget: 195 W Class-4 PoE |
| Key Specification | Switching Capacity: 128 Gbps |
| Management | Web GUI, Mobile App, Cloud Portal (Aruba Instant On) |
| Power Requirements | AC input 100-240 V, internal PSU; PoE budget 195 W |
| Dimensions & Weight | 17.42″ W × 10.42″ D × 1.73″ H (≈ 44.25 × 26.47 × 4.39 cm) |
| Warranty | Limited lifetime warranty (per Instant On series) |
