Overview

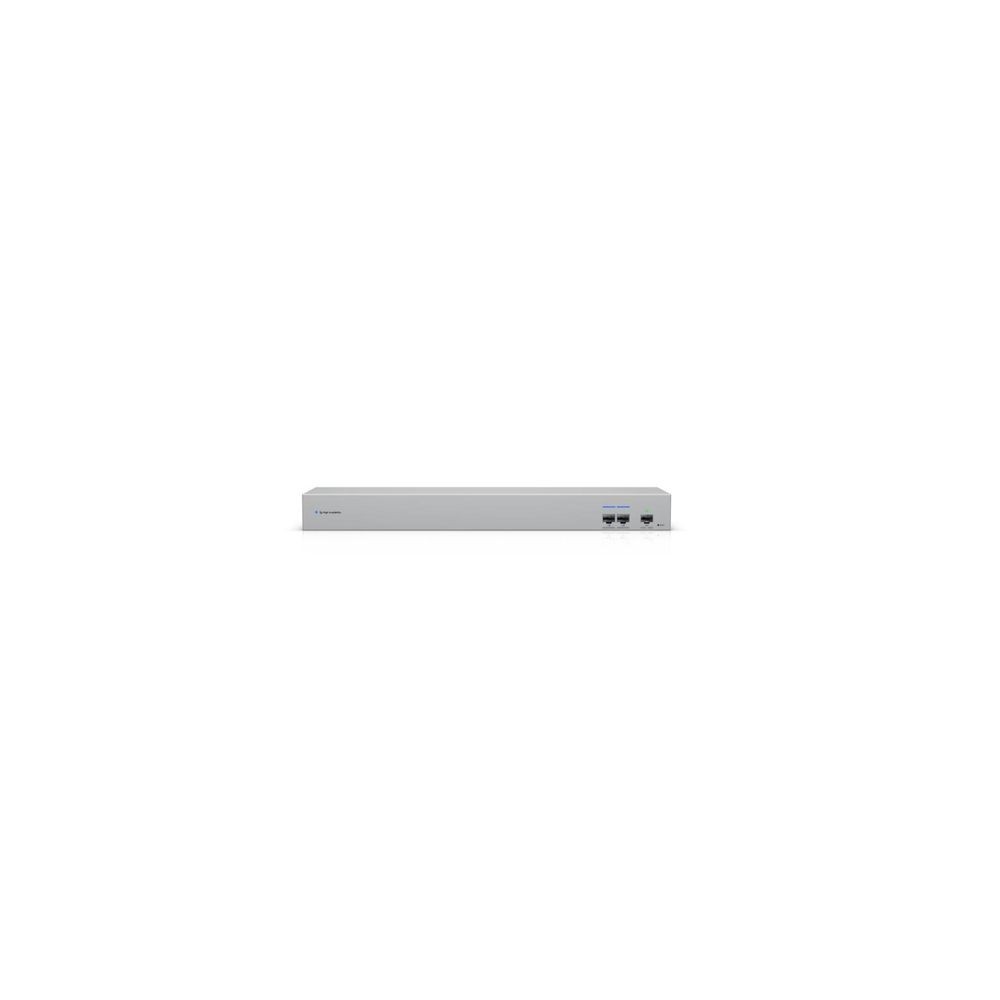

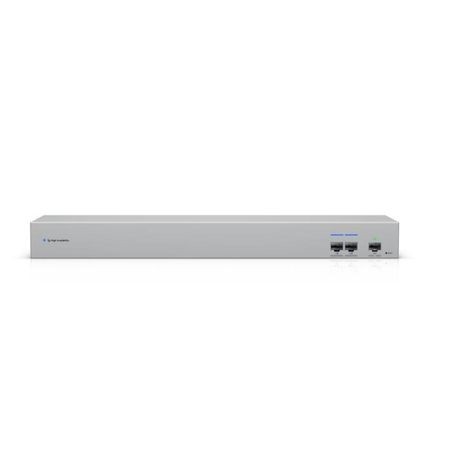

The Ubiquiti USW-WAN is a 1U UniFi WAN switch designed to connect two Shadow Mode High Availability UniFi Gateways to a single ISP connection. It provides three 10G SFP+ ports, one Gigabit Ethernet management interface, and dual internal AC power inputs for power redundancy.
Network Connectivity
The USW-WAN provides three 10G SFP+ ports supporting 10G and 1G connections, plus one Gigabit Ethernet RJ45 port supporting 1G, 100M, and 10M Ethernet. The switch delivers a 20 Gbps switching capacity, 10 Gbps total non-blocking throughput, and a 15 Mpps forwarding rate.
WAN High Availability
The switch is designed for Shadow Mode High Availability deployments where two compatible UniFi Gateways share connectivity to a single ISP. Ubiquiti recommends using an additional USW-WAN when a deployment requires multiple ISPs.
Power and Rack Installation
Two internal AC/DC power supplies provide redundant AC inputs. The switch accepts 100–240V AC at 50/60 Hz and has a maximum power consumption of 13W. Its 1U rack-mount form factor is suited to standard network racks.
Key Features
- Three 10G SFP+ ports with 10G/1G support
- One Gigabit Ethernet RJ45 management port
- 20 Gbps switching capacity and 10 Gbps non-blocking throughput
- Dual internal AC/DC power supplies and AC inputs
- 1U rack-mount construction for WAN infrastructure
Applications
The USW-WAN is intended for high-availability UniFi WAN deployments, particularly installations connecting two Shadow Mode UniFi Gateways to a shared ISP connection. For environments with multiple ISPs, additional WAN switches can be deployed as required.
DC Supplies Product Note
The USW-WAN is purpose-built for the WAN-side interconnection of compatible UniFi Gateway redundancy deployments rather than serving as a conventional multi-port access-layer switch.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | USW-WAN |
|---|
| Product Type | WAN Switch |
|---|
| Product Line | UniFi |
|---|
| Form Factor | 1U Rack Mount |
|---|
| Network Ports | 1 × GbE RJ45, 3 × 10G SFP+ |
|---|
| GbE RJ45 Port Speeds | 1G / 100M / 10M |
|---|
| SFP+ Port Speeds | 10G / 1G |
|---|
| Switching Capacity | 20 Gbps |
|---|
| Total Non-Blocking Throughput | 10 Gbps |
|---|
| Forwarding Rate | 15 Mpps |
|---|
| Power Inputs | 2 × AC inputs |
|---|
| Power Supply | 2 × internal 36W AC/DC |
|---|
| AC Input | 100–240V AC, 50/60 Hz |
|---|
| Maximum Power Consumption | 13W |
|---|
| Enclosure Material | SGCC steel |
|---|
| Operating Temperature | -5°C to 40°C |
|---|
| Operating Humidity | 10–90% noncondensing |
|---|
| Management | Ethernet, UniFi Network |
|---|
| UniFi Network Requirement | Version 9.1.119 or later |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, Anatel |
|---|
FAQs
What is the USW-WAN designed for?
It is designed to connect two Shadow Mode High Availability UniFi Gateways to a single ISP connection.
How many 10G ports does the USW-WAN have?
It provides three 10G SFP+ ports supporting 10G and 1G connections.
Does the USW-WAN have redundant power?
Yes. It has two AC inputs supplied by two internal AC/DC power supplies.
What is the switching capacity?
The switch provides 20 Gbps switching capacity, 10 Gbps total non-blocking throughput, and a 15 Mpps forwarding rate.
Can the USW-WAN be used with multiple ISPs?
Ubiquiti specifies that an additional USW-WAN should be used for deployments requiring multiple ISPs.
