Overview

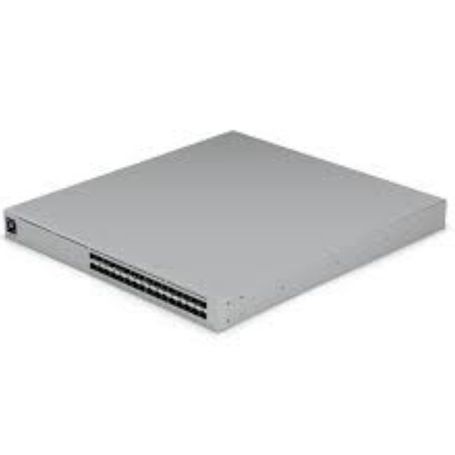

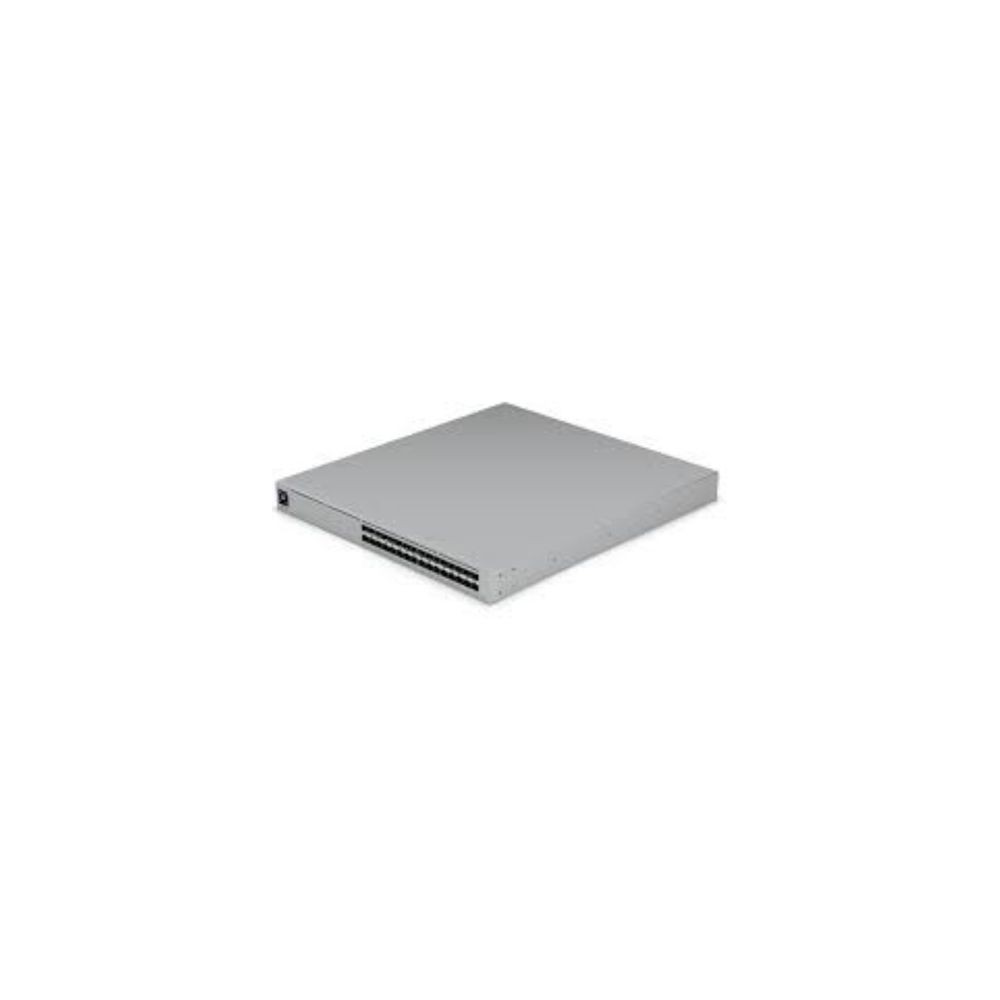

The Ubiquiti USW-PRO-XG-AGGREGATION, also identified by Ubiquiti as USW-Pro-XG-Aggregation, is a 1U Layer 3 aggregation switch designed for high-capacity fiber networking. It provides 32 SFP28 ports supporting 25G, 10G, and 1G connections, with 1.6 Tbps switching capacity and 800 Gbps non-blocking throughput. :contentReference[oaicite:1]{index=1}
Port Connectivity
All 32 network interfaces are SFP28 ports supporting 25G, 10G, and 1G Ethernet connectivity. The high-density fiber interface design makes the switch suitable for aggregation, backbone, and high-bandwidth data-center network layers.
Switching and Layer 3
The switch provides a 1.6 Tbps switching capacity and 1.2 Bpps forwarding rate. Layer 3 capabilities include local-network DHCP server and relay functions, inter-VLAN routing, and static routing. It supports up to 1,000 VLANs, a 32,000-entry MAC address table, and 512 IPv4 static routes. :contentReference[oaicite:2]{index=2}
Redundancy and Power
The USW-PRO-XG-AGGREGATION uses an internal 200W AC/DC power supply with a universal 100–240V AC input. A USP RPS DC input provides DC power backup capability for increased power resilience. Maximum power consumption is specified at 200W. :contentReference[oaicite:3]{index=3}
Network Management and Features
Supported networking features include LACP port aggregation, STP/RSTP, advanced IGMP configuration, IGMP snooping, 802.1X control, DHCP snooping and guarding, MAC- and IP-based ACLs, port isolation, port mirroring, storm control, multicast and broadcast rate limiting, jumbo frames, LLDP-MED, voice VLAN, loop protection, and Pro AV profiles. :contentReference[oaicite:4]{index=4}
Key Features
- 32 × 25G SFP28 ports supporting 25G, 10G, and 1G
- 1.6 Tbps switching capacity and 800 Gbps non-blocking throughput
- Layer 3 routing with inter-VLAN and static routing support
- Etherlighting for port identification, speed/link, and network visibility
- USP RPS DC power backup input
Applications
The USW-PRO-XG-AGGREGATION is suited to high-density fiber aggregation, data-center backbone connectivity, enterprise core and distribution layers, server and storage networks, and other deployments requiring multiple 25G interfaces in a compact 1U chassis.
DC Supplies Product Note
With 32 SFP28 interfaces and 1.6 Tbps switching capacity, this model is positioned for aggregation rather than conventional copper access switching. Its USP RPS input also provides a separate DC backup-power option for deployments where power continuity is important.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | USW-PRO-XG-AGGREGATION |
| Product Type | Layer 3 Aggregation Switch |
| Product Line | UniFi Pro XG Aggregation |
| SFP28 Ports | 32 |
| Supported Port Speeds | 25G / 10G / 1G |
| Switching Capacity | 1.6 Tbps |
| Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer | 8 MB |
| Power Input | 100–240V AC, 50/60 Hz |
| Power Supply | Internal 200W AC/DC |
| DC Backup | USP RPS |
| Maximum Power Consumption | 200W |
| Form Factor | 1U Rack Mount |
| Enclosure Material | SGCC Steel |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Management | Ethernet in-band |
| Display | 1.3-inch touchscreen |
| Etherlighting | Yes |
| NDAA Compliant | Yes |
Specifications are based on Ubiquiti's current technical specifications for the Pro XG Aggregation. :contentReference[oaicite:5]{index=5}
FAQs
How many ports does the USW-PRO-XG-AGGREGATION have?
It has 32 SFP28 ports.
What speeds are supported by the SFP28 ports?
Each port supports 25G, 10G, and 1G connectivity. :contentReference[oaicite:6]{index=6}
Does the switch support Layer 3 routing?
Yes. It supports DHCP server and relay functions, inter-VLAN routing, and static routing.
Does it support redundant power?
The switch has an internal 200W AC/DC power supply and a USP RPS DC input for power backup. :contentReference[oaicite:7]{index=7}
What rack space does it require?
The USW-PRO-XG-AGGREGATION is a 1U rack-mount switch and measures 442.4 × 43.7 × 480 mm.
