Overview

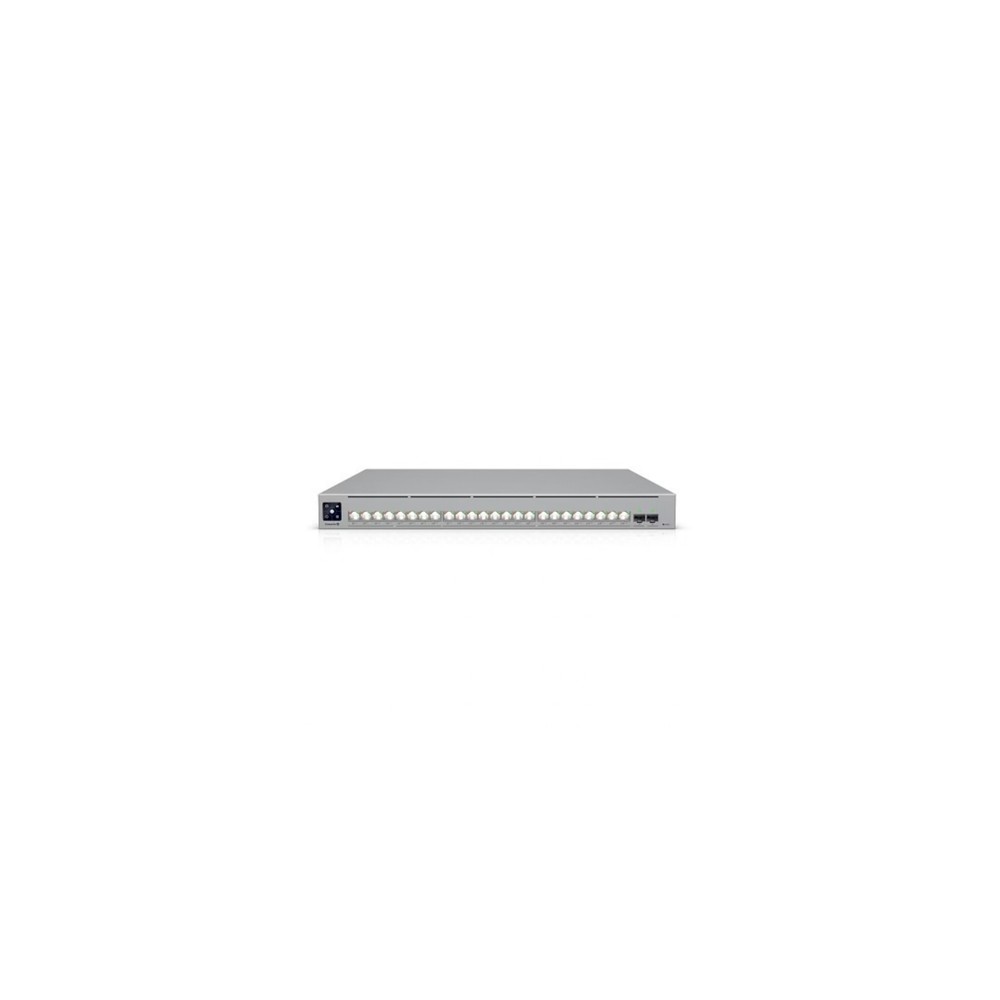

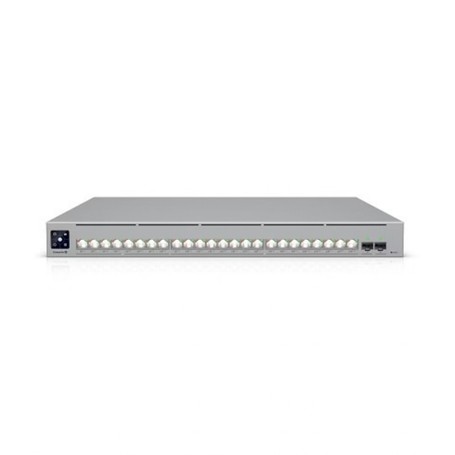

The Ubiquiti ECS-24-PoE Enterprise Campus 24 PoE is a 1U, full-depth Layer 3 managed switch built for high-capacity enterprise network deployments. It provides 24 multi-gigabit PoE+++ RJ45 ports, including 16 10GbE ports and 8 2.5GbE ports, plus two 25G SFP28 uplink interfaces. The switch supports high-availability designs with hot-swappable power supplies and fan modules.
Multi-Gigabit PoE+++ Connectivity
All 24 RJ45 ports support PoE+++ with up to 90W per port. Eight ports operate at up to 2.5GbE, while the remaining 16 ports support up to 10GbE. The interfaces also support lower Ethernet speeds, allowing the switch to connect a range of network and powered devices.
High-Speed Uplinks
Two 25G SFP28 ports provide high-speed uplink connectivity and support 25G, 10G, and 1G operation. These interfaces can be used for high-bandwidth connections between the Enterprise Campus 24 PoE and aggregation or other network infrastructure.
PoE Capacity and Power Redundancy
The switch uses two hot-swappable AC/DC power modules and can provide different total PoE availability depending on input voltage, module configuration, and shared or redundant operating mode. With two 600W modules in 100–240V AC shared mode, Ubiquiti specifies 1,050W of total PoE availability. Higher-capacity 1,200W modules can provide up to 2,250W in 200–240V AC shared mode.
Layer 3 Network Features
ECS-24-PoE provides Layer 3 networking capabilities including DHCP server and relay functions, inter-VLAN routing, and static routing. Additional switching features include LACP port aggregation, STP/RSTP, QoS, IGMP snooping, 802.1X control, DHCP snooping and guarding, port isolation, port mirroring, jumbo frames, and network access controls.
Etherlighting and Management
The switch includes Ubiquiti Etherlighting for visual status indication across Ethernet and SFP28 interfaces. Management is provided through Ethernet, and a 1.3-inch touchscreen provides local system information.
Key Features
- 24 PoE+++ RJ45 ports with up to 90W per port
- 16 × 10GbE and 8 × 2.5GbE RJ45 interfaces
- 2 × 25G SFP28 uplink ports
- Layer 3 switching with inter-VLAN and static routing
- Two hot-swappable power modules and four hot-swappable fan modules
Applications
ECS-24-PoE can serve as a high-capacity access or campus switch for enterprise networks, high-speed wireless deployments, IP surveillance, access control, VoIP, and other installations requiring multi-gigabit connectivity and high-power PoE delivery.
DC Supplies Product Note
The available PoE budget depends on the installed power modules, AC input voltage, and selected shared or redundant power mode. The standard 600W modules provide up to 1,050W total PoE availability in 100–240V AC shared mode, while optional 1,200W modules support higher total PoE availability under specified input conditions.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | ECS-24-PoE |
|---|
| Product Type | Layer 3 Enterprise Managed PoE+++ Switch |
|---|
| Form Factor | 1U Rack Mount, Full Depth |
|---|
| 2.5GbE RJ45 Ports | 8, all PoE+++ |
|---|
| 10GbE RJ45 Ports | 16, all PoE+++ |
|---|
| 25G SFP28 Ports | 2 |
|---|
| Total PoE Ports | 24 |
|---|
| Maximum PoE Output per Port | 90W PoE+++ |
|---|
| PoE Availability with 2 × 600W Modules | Up to 1,050W in 100–240V AC shared mode |
|---|
| Switching Capacity | 460 Gbps |
|---|
| Non-Blocking Throughput | 230 Gbps |
|---|
| Forwarding Rate | 342 Mpps |
|---|
| Supported VLANs | 1,000 |
|---|
| MAC Address Table | 32,000 |
|---|
| IPv4 Static Routes | 512 |
|---|
| Packet Buffer | 8 MB |
|---|
| Power Supply | 2 × hot-swappable AC/DC 600W modules |
|---|
| Power Input | 2 × 100–240V AC, 50/60 Hz |
|---|
| Hot-Swappable Fans | 4 |
|---|
| Management | Ethernet |
|---|
| Display | 1.3-inch touchscreen |
|---|
| Dimensions | 442.4 × 43.7 × 496 mm |
|---|
| Weight | 9.46 kg without mounting brackets; 9.56 kg with mounting brackets |
|---|
| Enclosure Material | SGCC steel |
|---|
| Operating Temperature | -5 to 40°C |
|---|
| Operating Humidity | 10–90% non-condensing |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
How many PoE ports does the ECS-24-PoE have?
It has 24 PoE+++ RJ45 ports: 16 ports supporting up to 10GbE and 8 ports supporting up to 2.5GbE.
How much power can each PoE port provide?
Each RJ45 port supports up to 90W through PoE+++.
Does the switch have 25G uplinks?
Yes. It has two SFP28 ports supporting 25G, 10G, and 1G operation.
Does the ECS-24-PoE support Layer 3 routing?
Yes. It supports features including inter-VLAN routing, static routing, DHCP server, and DHCP relay.
Does it have redundant power?
Yes. The switch uses two hot-swappable AC/DC power modules and supports shared and redundant operating modes.
Is the ECS-24-PoE rack mountable?
Yes. It is a 1U full-depth rack-mount switch designed for 19-inch four-post racks with supported rack depths from 650 to 1,000 mm.
