Overview

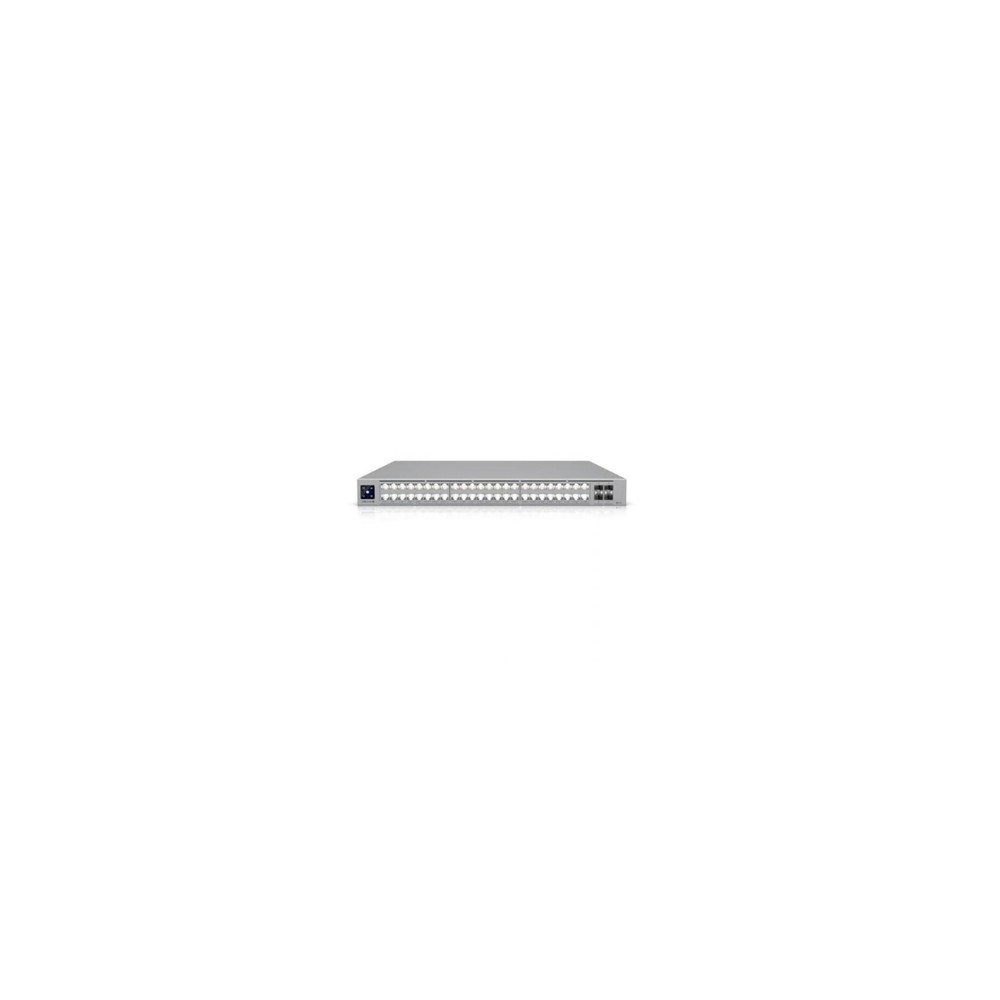

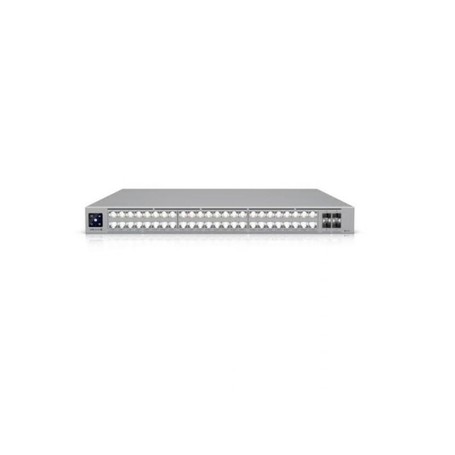

The Ubiquiti Pro XG 48 PoE is a professional-grade 48-port Layer 3 managed switch designed for high-density networks requiring multi-gigabit Ethernet and high-power PoE. It combines 32 10GbE PoE+++ ports, 16 2.5GbE PoE+++ ports, and four 25G SFP28 ports in a 1U rack-mount form factor.
High-Speed Port Connectivity
The switch provides 32 10GbE RJ45 ports supporting 10G, 5G, 2.5G, 1G, 100M, and 10M Ethernet, plus 16 2.5GbE RJ45 ports supporting 2.5G, 1G, 100M, and 10M connectivity. Four 25G SFP28 ports provide high-speed fiber or direct-attach uplink options.
PoE+++ Power
All 48 RJ45 ports support PoE+++ with up to 90W per port. Total PoE availability is rated at 1080W when operating from 200–240V AC and 972W with 100–120V AC input. This provides substantial power capacity for high-demand access points, cameras, and other PoE-powered network equipment.
Layer 3 Switching
The Pro XG 48 PoE supports Layer 3 networking features including DHCP Server, DHCP Relay, inter-VLAN routing, and static routing. It also provides 1,000 supported VLANs, a 32,000-entry MAC address table, and up to 512 IPv4 static routes.
Enterprise Network Features
Advanced switching functions include LACP link aggregation, STP/RSTP, QoS with DSCP, IGMP snooping, 802.1X control, DHCP snooping and guarding, ACLs, network isolation, port isolation, port mirroring, storm control, and multicast and broadcast rate limiting. The switch also provides Pro AV profiles for platforms and protocols including Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron.
Etherlighting and Rack Installation
Etherlighting provides illuminated port identification for supported UniFi Ethernet and SFP28 connections. The 1U chassis is designed for four-post 19-inch rack installation and supports rack depths from 600 to 1,066 mm.
Key Features
- 48-port Layer 3 managed switch with Etherlighting
- 32 × 10GbE RJ45 and 16 × 2.5GbE RJ45 PoE+++ ports
- 4 × 25G SFP28 ports for high-speed uplinks
- Up to 1080W total PoE availability at 200–240V AC
- 920 Gbps switching capacity and 684 Mpps forwarding rate
Applications
The Pro XG 48 PoE can serve as a high-capacity access switch for enterprise networks, high-density WiFi deployments, surveillance systems, AV-over-IP environments, and other installations requiring multi-gigabit connectivity, high PoE power availability, and Layer 3 network management.
DC Supplies Product Note
This is a 1U rack-mount enterprise switch with an internal 1,350W AC/DC power supply and support for a USP RPS DC input. When planning a deployment, account for the total PoE budget as well as the available rack depth and AC input conditions, since the maximum PoE availability varies between 100–120V and 200–240V operation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | USW-Pro-XG-48-PoE |
|---|
| Product Type | 48-Port Layer 3 PoE+++ Managed Switch |
|---|
| 2.5GbE RJ45 Ports | 16, all PoE+++ |
|---|
| 10GbE RJ45 Ports | 32, all PoE+++ |
|---|
| 25G SFP28 Ports | 4 |
|---|
| Maximum PoE Output Per Port | 90W PoE+++ |
|---|
| Total PoE Availability | 1080W at 200–240V AC; 972W at 100–120V AC |
|---|
| Switching Capacity | 920 Gbps |
|---|
| Non-Blocking Throughput | 460 Gbps |
|---|
| Forwarding Rate | 684 Mpps |
|---|
| Supported VLANs | 1,000 |
|---|
| MAC Address Table | 32,000 |
|---|
| IPv4 Static Routes | 512 |
|---|
| Packet Buffer | 8 MB |
|---|
| Power Supply | Internal AC/DC, 1,350W |
|---|
| AC Input | 100–240V AC, 50/60 Hz |
|---|
| Additional Power Input | USP RPS DC input |
|---|
| Maximum Power Consumption | 200W excluding PoE output |
|---|
| Form Factor | 1U rack mount |
|---|
| Dimensions | 442 × 480 × 44 mm |
|---|
| Weight | 8.7 kg without mounting brackets; 8.8 kg with brackets |
|---|
| Enclosure Material | SGCC steel |
|---|
| Operating Temperature | -5°C to 40°C |
|---|
| Operating Humidity | 10–90% non-condensing |
|---|
| Management | Ethernet |
|---|
| LCM Display | 1.3-inch touchscreen |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, Anatel |
|---|
FAQs
How many ports does the USW-Pro-XG-48-PoE have?
It has 48 RJ45 ports: 32 ports support 10GbE and 16 ports support 2.5GbE. It also includes four 25G SFP28 ports.
How much PoE power can the switch provide?
Each RJ45 port can deliver up to 90W using PoE+++. Total PoE availability is up to 1080W at 200–240V AC and 972W at 100–120V AC.
Does the switch support Layer 3 networking?
Yes. It supports functions including DHCP Server, DHCP Relay, inter-VLAN routing, and static routing.
Is the USW-Pro-XG-48-PoE rack mountable?
Yes. It uses a 1U rack-mount chassis designed for four-post 19-inch racks with supported rack depths from 600 to 1,066 mm.
Does it have 25G uplinks?
Yes. Four 25G SFP28 ports provide high-speed uplink connectivity and support 25G, 10G, and 1G operation.
