Detailed Specifications

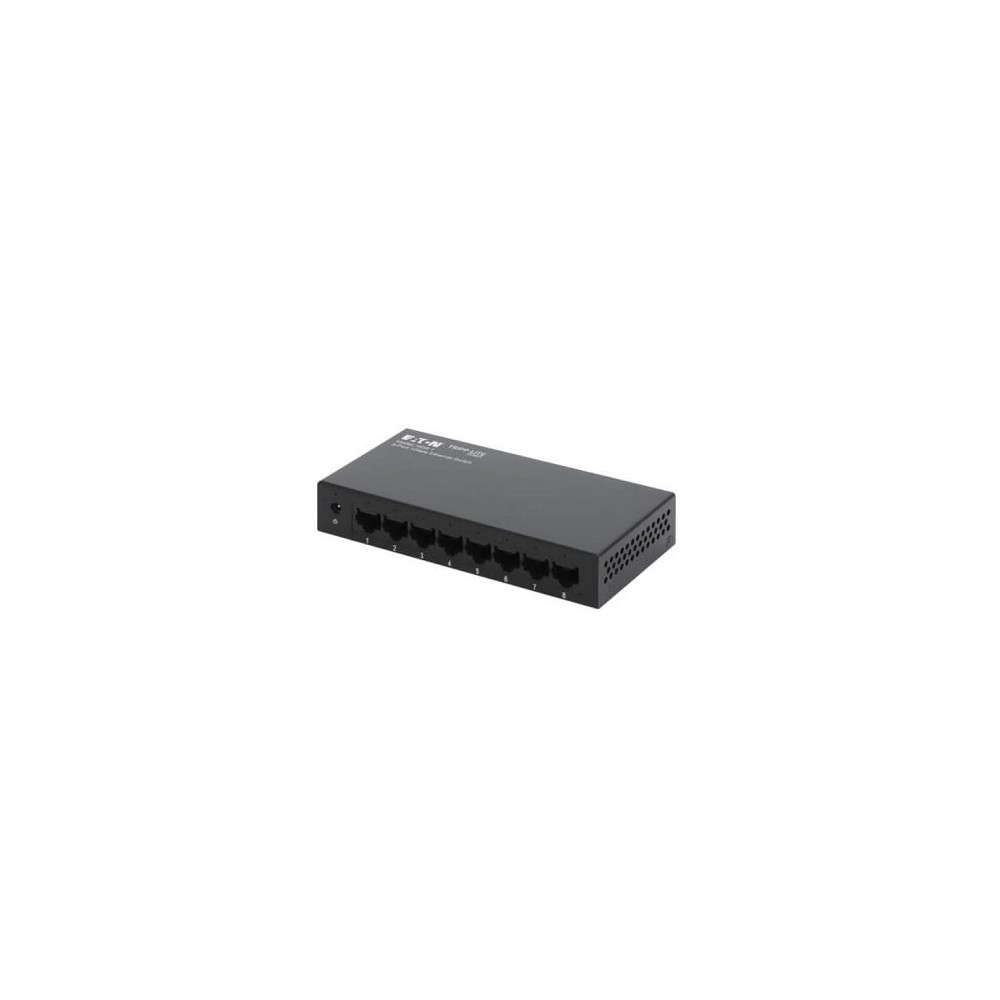

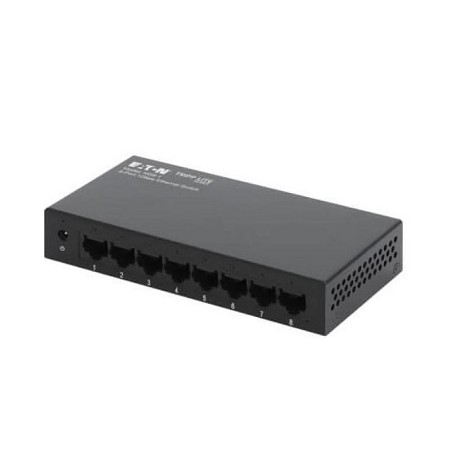

Eaton NG8-1 8-Port Gigabit Ethernet Unmanaged Switch Compatible Tripp Lite
Overview :
The Eaton NG8-1 is an 8-port unmanaged Gigabit Ethernet switch designed for small offices, workgroups, data centers, and other wired network deployments. It provides eight auto-negotiating RJ45 ports supporting 10/100/1000 Mbps Gigabit Ethernet.
The switch is plug-and-play and supports auto MDI/MDIX, IEEE 802.3x flow control, and IEEE 802.3az Energy Efficient Ethernet. Its fanless metal enclosure supports desktop or wall-mounted installation.
Key Features :
- 8 × 10/100/1000 Mbps RJ45 Gigabit Ethernet ports
- Unmanaged Layer 2 operation
- 16 Gbps switching capacity
- Auto-negotiation and auto MDI/MDIX
- IEEE 802.3az Energy Efficient Ethernet
- Fanless design
- Heavy-duty metal housing
- Desktop or wall-mount installation
- Supports up to 9K jumbo frames
- Plug-and-play operation
- External power supply included
- 3-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | NG8-1 |
| Product Type | 8-Port Gigabit Ethernet Unmanaged Switch |
| Network Ports | 8 × RJ45 |
| Port Speed | 10/100/1000 Mbps |
| Network Technology | Gigabit Ethernet |
| Switch Type | Unmanaged |
| Switching Capacity | 16 Gbps |
| Switching Capacity per Port | 2 Gbps full duplex |
| SFP Ports | 0 |
| Jumbo Frames | 9K |
| MAC Address Learning | Automatic |
| Flow Control | IEEE 802.3x |
| Energy Efficiency | IEEE 802.3az |
| Fan | Fanless |
| Material | Metal |
| Color | Black |
| Form Factor | Desktop / Wall Mount |
| Input Voltage | 100-240 VAC |
| Power Consumption | 2.75 W maximum |
| Power Adapter Output | 5 V DC, 1000 mA |
| Input Plug | NEMA 1-15P |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 10%-90% RH, non-condensing |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
