Detailed Specifications

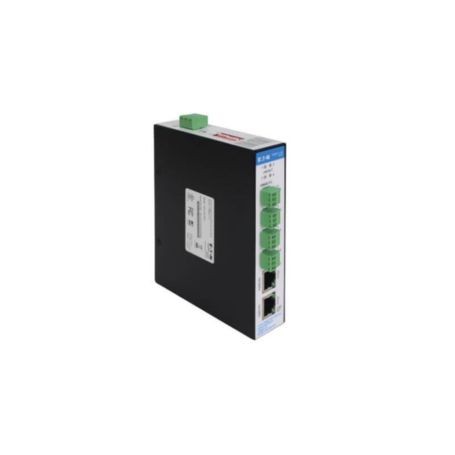

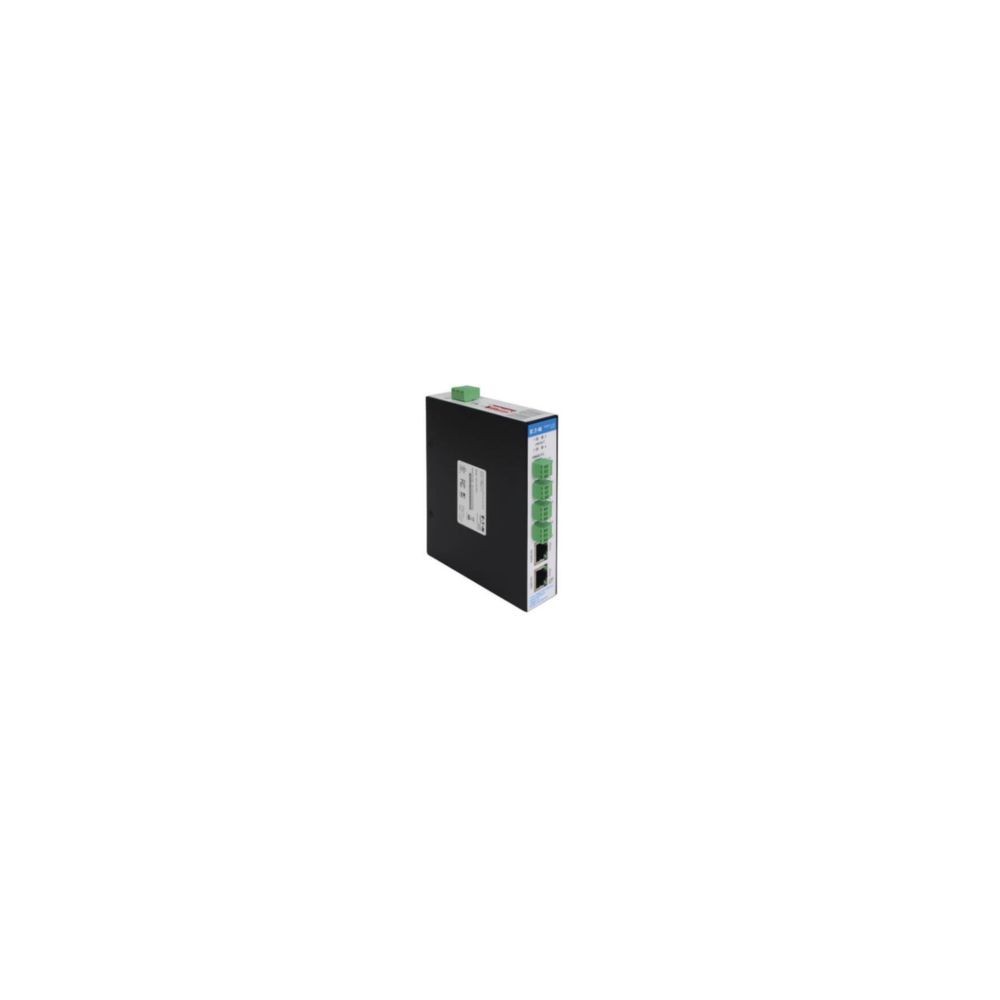

Eaton NFI-U04-SPE Tripp Lite by Eaton 4-Port Industrial SPE Ethernet Switch
Overview
The Eaton NFI-U04-SPE is a Tripp Lite by Eaton 4-port Single-Pair Ethernet (SPE) industrial switch designed for connecting 10BASE-T1L field devices to broader Ethernet networks. It supports 10BASE-T1L communication over distances up to 1,000 meters.
The switch provides four 10BASE-T1L SPE ports plus two 10/100BASE-TX uplink ports for integration with conventional Ethernet infrastructure. It operates as an unmanaged Layer 2 switch, providing plug-and-play connectivity for industrial sensors, cameras and control equipment.
Its metal enclosure, DIN-rail or wall-mount installation, 12-48V DC input and -40°C to 75°C operating range make the NFI-U04-SPE suitable for industrial control cabinets, field installations and edge networking environments.
Key Features
- Four 10BASE-T1L Single-Pair Ethernet ports
- Up to 1,000 m SPE transmission distance
- Two 10/100BASE-TX RJ45 uplink ports
- Unmanaged Layer 2 industrial Ethernet operation
- DIN-rail or wall-mountable metal housing with -40°C to 75°C operating range
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite by Eaton |
| Model | NFI-U04-SPE |
| Product Type | 4-Port Single-Pair Ethernet Industrial Switch |
| Ethernet Standard | IEEE 802.3cg 10BASE-T1L |
| SPE Ports | 4 × 10BASE-T1L |
| Uplink Ports | 2 × 10/100BASE-TX |
| SPE Data Rate | 10 Mbps |
| Uplink Speed | 10/100 Mbps |
| Maximum SPE Distance | 1,000 m |
| Switching Layer | Layer 2 |
| Management | Unmanaged |
| Media | Twisted Pair |
| LED Indicators | Yes |
| Input Voltage | 12-48 VDC |
| Power Consumption | 4 W |
| Form Factor | DIN Rail / Desktop |
| Wall Mounting | Yes |
| Housing Material | Metal |
| Housing Protection | IP30 |
| Operating Temperature | -40°C to 75°C |
| Product Color | Black |
| Height | 3.9 in |
| Width | 2.0 in |
| Depth | 4.6 in |
| Weight | 15.52 oz / 0.97 lb |
| Country of Origin | Taiwan |
| Certifications | UL Listed, CSA, ICES |
| Compliance | TAA, RoHS, WEEE |
| Applications | Industrial, Network, IP Camera, Sensor |
| UPC | 037332300393 |
