Detailed Specifications

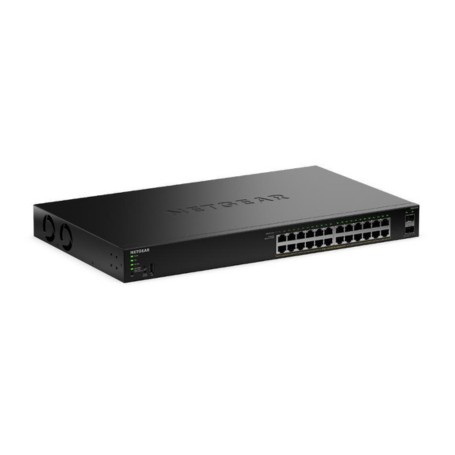

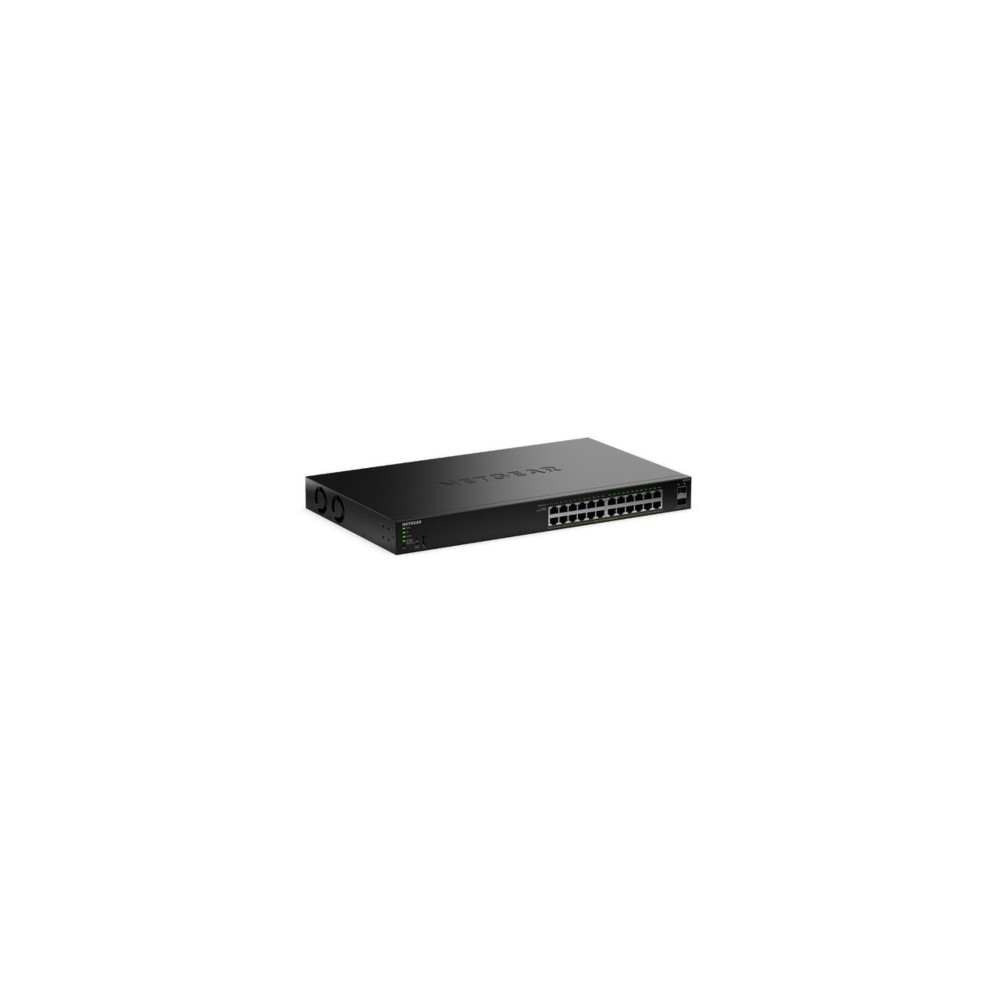

NETGEAR GS324TP-200NAS 24-Port Gigabit PoE Smart Managed Switch
Overview :
The NETGEAR GS324TP-200NAS is an S350 Series GS324TPv2 smart managed switch with 24 Gigabit PoE+ Ethernet ports and two dedicated Gigabit SFP ports. It is designed for SMB networks carrying data, voice, video, IP surveillance, and wireless access-point traffic. NETGEAR identifies GS324TP-200NAS as the North American SKU.
All 24 RJ45 ports support IEEE 802.3at PoE+ and provide up to 30W per port, with a 190W total PoE budget. The two SFP ports provide Gigabit fiber uplink capability. Switching capacity is 52Gbps with a forwarding rate of 38.6Mpps.
The switch supports smart management features including VLANs, QoS, LACP, ACLs, IGMP snooping, RMON, SNMP, DHCP snooping, and 802.1X. It is rack-mountable and intended for indoor deployments. It should not be selected where 10GbE uplinks, PoE++/802.3bt, or unmanaged plug-and-play operation is required.
Key Features :
- 24 Gigabit PoE+ ports support powered network devices
- 190W PoE budget supports cameras, APs and VoIP phones
- Two SFP ports provide Gigabit fiber uplink connectivity
- Smart management enables VLAN, QoS and security controls
- Rack-mount design supports centralized network deployment
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | GS324TP-200NAS |
| Product Type | Smart Managed PoE+ Ethernet Switch |
| Product Series | S350 |
| Product Model | GS324TPv2 |
| RJ45 Ports | 24 x 10/100/1000BASE-T PoE+ |
| SFP Ports | 2 x 1000BASE-X |
| PoE Standard | IEEE 802.3at PoE+ |
| Maximum PoE Per Port | 30W |
| Total PoE Budget | 190W |
| Switching Capacity | 52Gbps |
| Forwarding Rate | 38.6Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 1.5MB |
| Management | Smart Managed |
| Form Factor | Desktop / Rack-mountable |
