Detailed Specifications

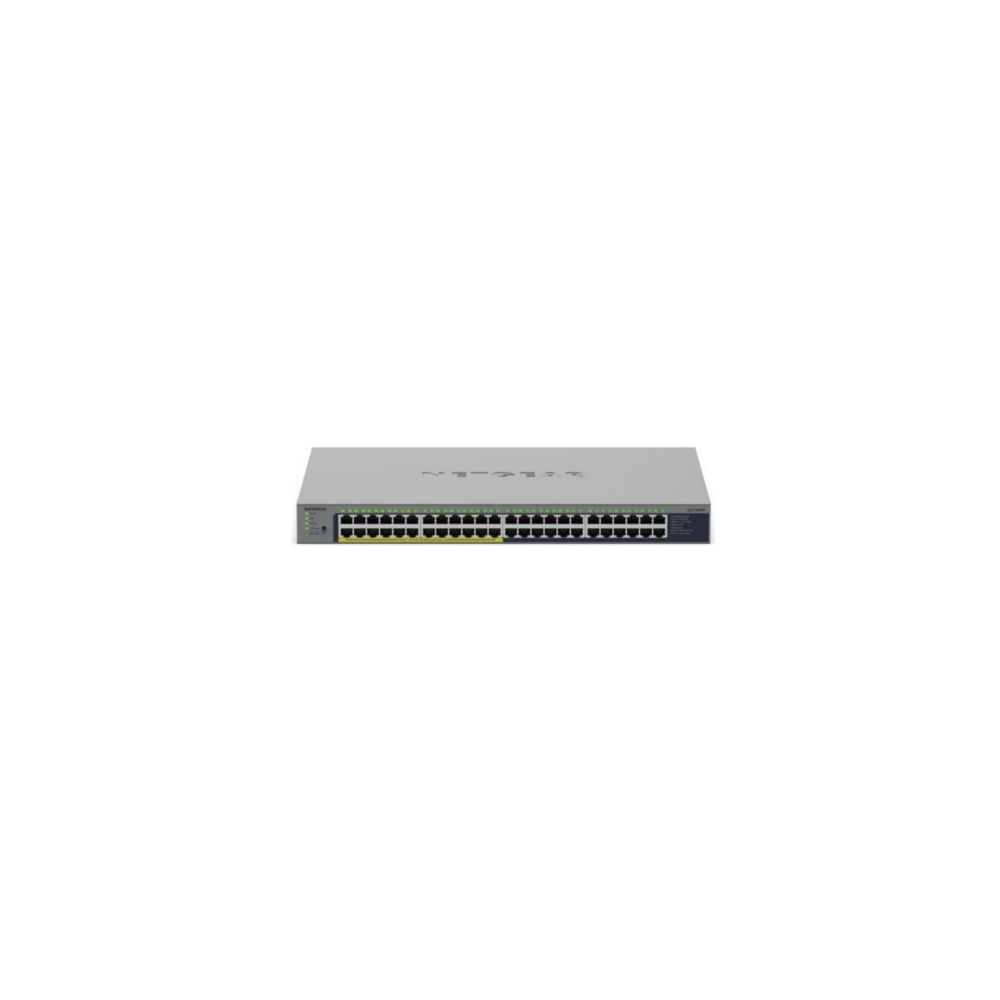

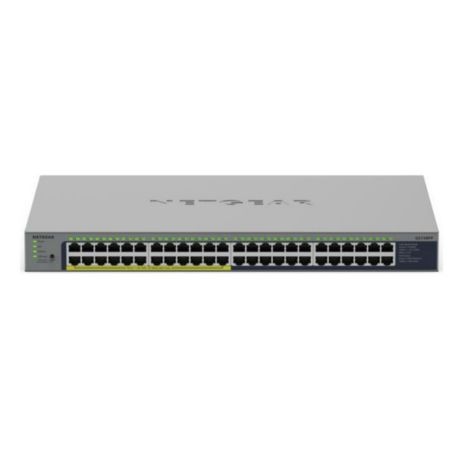

NETGEAR GS748PP-100NAS 48-Port Gigabit Unmanaged PoE Switch
Overview :
The NETGEAR GS748PP-100NAS is a 48-port Gigabit unmanaged Ethernet switch designed for business networks, surveillance systems, wireless access points, VoIP, and other PoE deployments. It provides plug-and-play connectivity without requiring switch management or configuration.
The switch provides 48 × 10/100/1000 Mbps RJ45 ports. Ports 1-24 support IEEE 802.3at PoE+ at up to 30 W per port, while ports 25-48 support IEEE 802.3af PoE. The total PoE budget is 380 W.
With 96 Gb/s non-blocking switching bandwidth, 1.5 MB packet buffering, 8K MAC address capacity, and 12,288-byte jumbo-frame support, it is suited to high-density Gigabit edge deployments. The rackmount/desktop chassis and dynamic fans support installation in equipment racks or local network areas.
This is an unmanaged Layer 2 switch with no SFP fiber ports or configurable Layer 3 routing. It should not be selected where VLAN configuration, advanced routing, centralized switch management, or fiber uplinks are required.
Key Features :
- 48 Gigabit RJ45 ports provide high-density network access
- 24 PoE+ ports deliver up to 30 W per connected device
- 380 W PoE budget supports multiple powered endpoints
- 96 Gb/s switching provides non-blocking Gigabit throughput
- Rackmount or desktop installation supports flexible deployment
Specifications :
| Specification | Verified Value |
|---|
| Brand | NETGEAR |
| Part Number | GS748PP-100NAS |
| Product Type | 48-Port Gigabit Unmanaged PoE+ Switch |
| Ethernet Ports | 48 × 10/100/1000BASE-T RJ45 |
| PoE Ports | 48 |
| PoE+ Ports | 24 × IEEE 802.3at |
| PoE Ports | 24 × IEEE 802.3af |
| PoE Power per PoE+ Port | Up to 30 W |
| Total PoE Budget | 380 W |
| Switching Bandwidth | 96 Gb/s |
| Packet Buffer | 1.5 MB |
| MAC Address Table | 8K |
| Jumbo Frame Support | 12,288 bytes |
| Management | Unmanaged / Plug-and-Play |
| Form Factor | Rackmount / Desktop |
| Operating Temperature | 0-50°C |
| Cooling | 2 dynamic fans |
| Power Supply | Internal, 110-240 VAC, 50/60 Hz, 8 A max |
