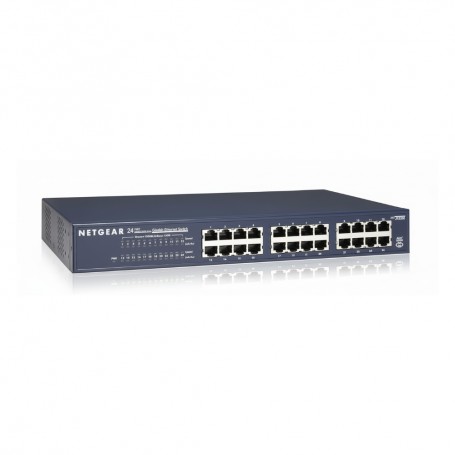

NETGEAR JGS524NA Ethernet 10/100/1000 Rackmount Switch View larger

NETGEAR JGS524NA 24-Port Gigabit Ethernet Switch

New

24-Port Gigabit Unmanaged Switch
×




  • New

Detailed Specifications

NETGEAR JGS524NA – 24-Port Gigabit Ethernet Unmanaged Switch

Overview :

The NETGEAR JGS524NA is a 24-port Gigabit Ethernet unmanaged switch designed for small to medium business networks that require reliable, high-speed connectivity without configuration complexity. It delivers full-duplex 10/100/1000 Mbps performance on all ports, enabling fast data transfer for workstations, servers, and storage devices. Ideal for office, retail, or small data center environments, it provides plug-and-play installation with automatic speed and duplex detection. The fanless metal chassis ensures quiet operation and long-term reliability in rack or desktop setups.

Key Features

  • 24 auto-sensing Gigabit Ethernet ports

  • Fanless metal housing for silent operation

  • Supports IEEE 802.3x flow control

  • Plug-and-play, no configuration required

Specification :

SpecificationDetail
Brand NETGEAR
Part Number JGS524NA
Product Type Unmanaged Gigabit Ethernet Switch
Total Ports 24 RJ-45 Gigabit Ethernet ports
Port Speed 10/100/1000 Mbps auto-sensing
Switching Capacity 48 Gbps
MAC Address Table 8K entries
Jumbo Frame Support Up to 9,720 bytes
Flow Control IEEE 802.3x compliant
Mounting Options Rackmount or desktop
Power Consumption Approx. 15.5 W (maximum)
Noise Level Fanless (0 dB)
Dimensions (W x D x H) 330 x 206 x 43 mm
Weight 2.1 kg
Operating Temperature 0°C to 50°C
