Detailed Specifications

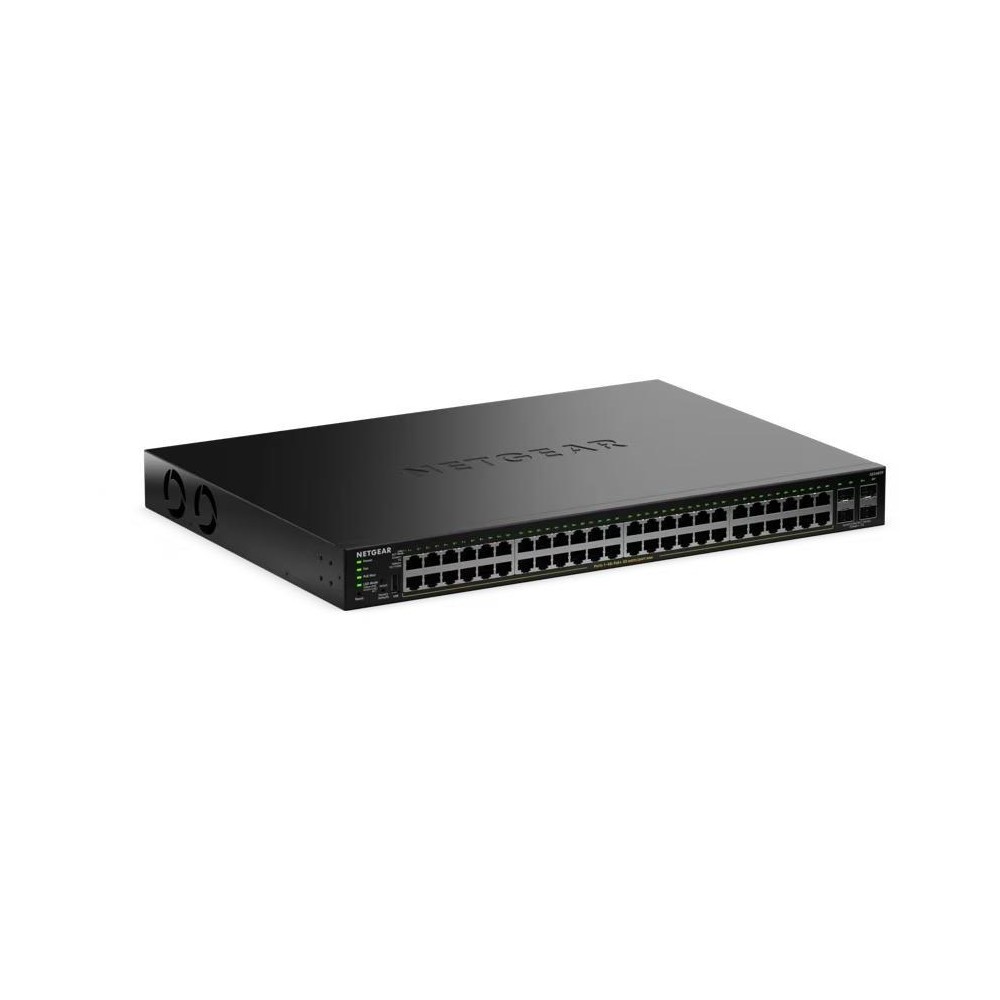

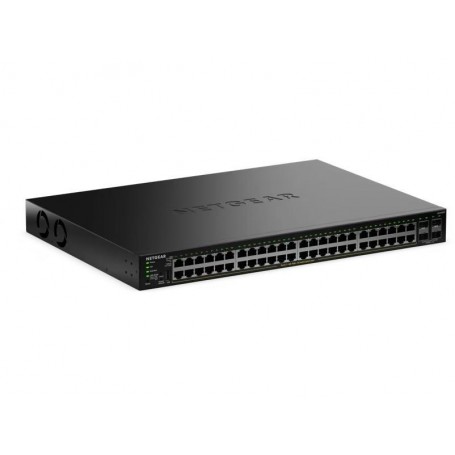

NETGEAR GS348TP-200NAS - Smart Managed Pro Switch
Overview :
The NETGEAR GS348TP-200NAS (S350 Series) is a 48-port Gigabit Ethernet PoE+ Smart Managed Pro Switch engineered for SMBs and enterprise edge environments.Network administrators, AV integrators, and security deployment teams utilize this switch to consolidate high-density end devices×such as IP surveillance cameras, VoIP phones, and wireless access points×onto a single managed network backbone.
It features 48 auto-sensing 10/100/1000 BASE-T RJ45 ports that deliver up to 30W of PoE+ power per port (802.3at) backed by a 380W total power budget.Four dedicated 1G SFP slots provide non-blocking fiber uplinks for long-distance connectivity.Operating on a 104 Gbps switching fabric with a 77.38 Mpps forwarding rate, it eliminates backplane bottlenecks under heavy traffic loads.
Designed for standard 19-inch rack mounting or desktop installation in MDF/IDF closets, server rooms, and distributed network hubs.It supports Layer 2 features including VLAN segmentation, QoS traffic prioritization, ACLs, IGMP snooping, and static routing. Do not deploy where non-PoE total load exceeds 380W or where 10GbE uplinks are required.
Key Features :
48 Gigabit PoE+ ports deliver 380W total power budget
4 dedicated SFP slots enable high-speed fiber uplinks
104 Gbps switching capacity prevents network congestion
Web GUI provides easy L2 management and traffic VLANs
Energy Efficient Ethernet reduces power draw automatically
Specifications :
| Parameter | Detail |
| Brand | NETGEAR |
| Part Number | GS348TP-200NAS |
| Product Type | Smart Managed Pro Switch |
| Product Series | S350 |
| Total Network Ports | 52 (48 x RJ-45, 4 x SFP) |
| PoE Standards & Budget | IEEE 802.3at PoE+, 380W Total Budget |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Packet Buffer Memory | 1.5 MB |
| MAC Address Table Size | 16K entries |
| Layer Support | Layer 2 / L2+ Lite |
| Max Power Consumption | 431 W |
| Acoustic Noise Level | 36.3 dB |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
