Detailed Specifications

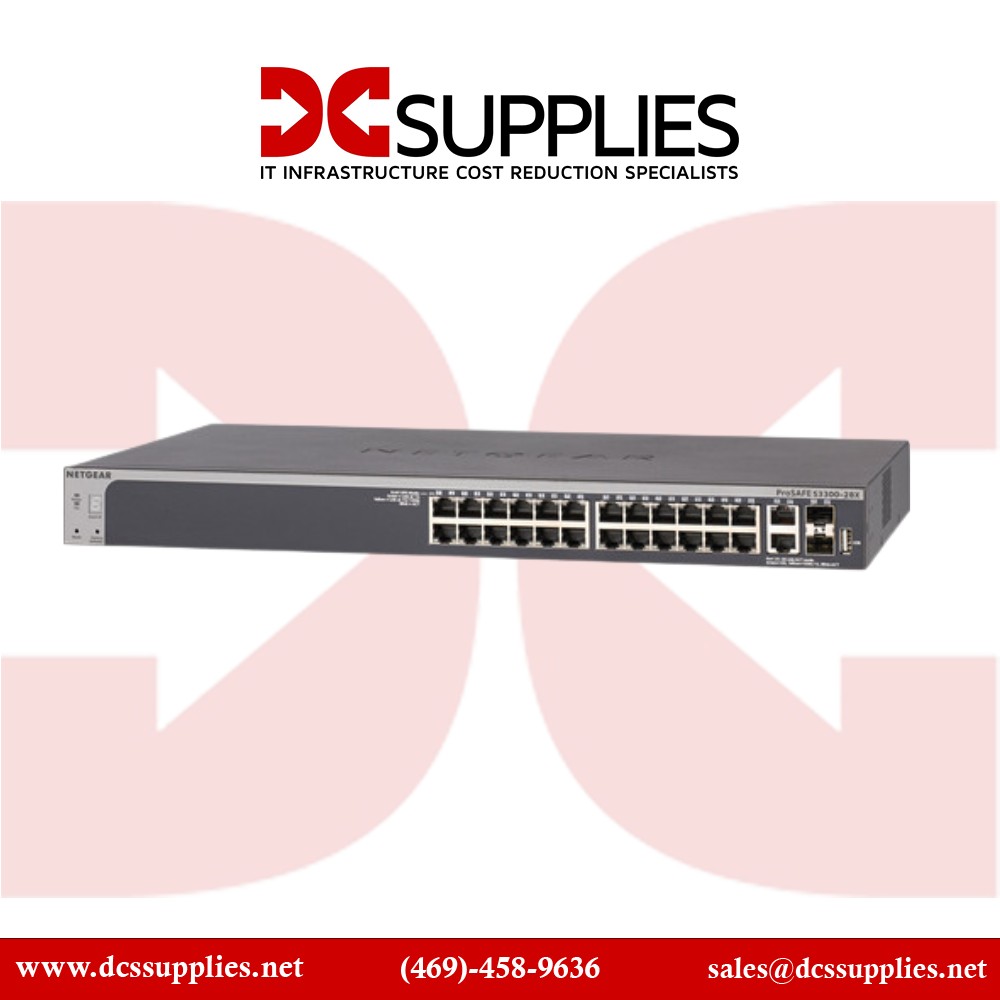

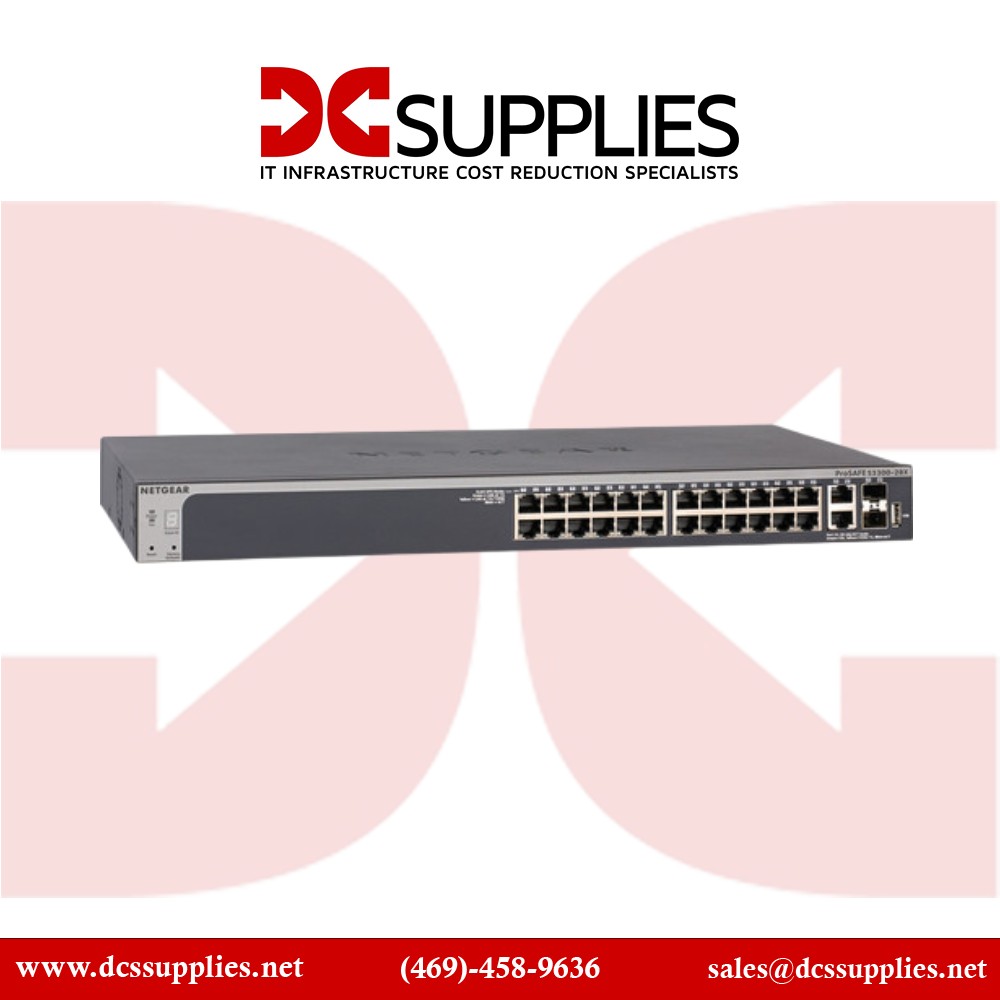

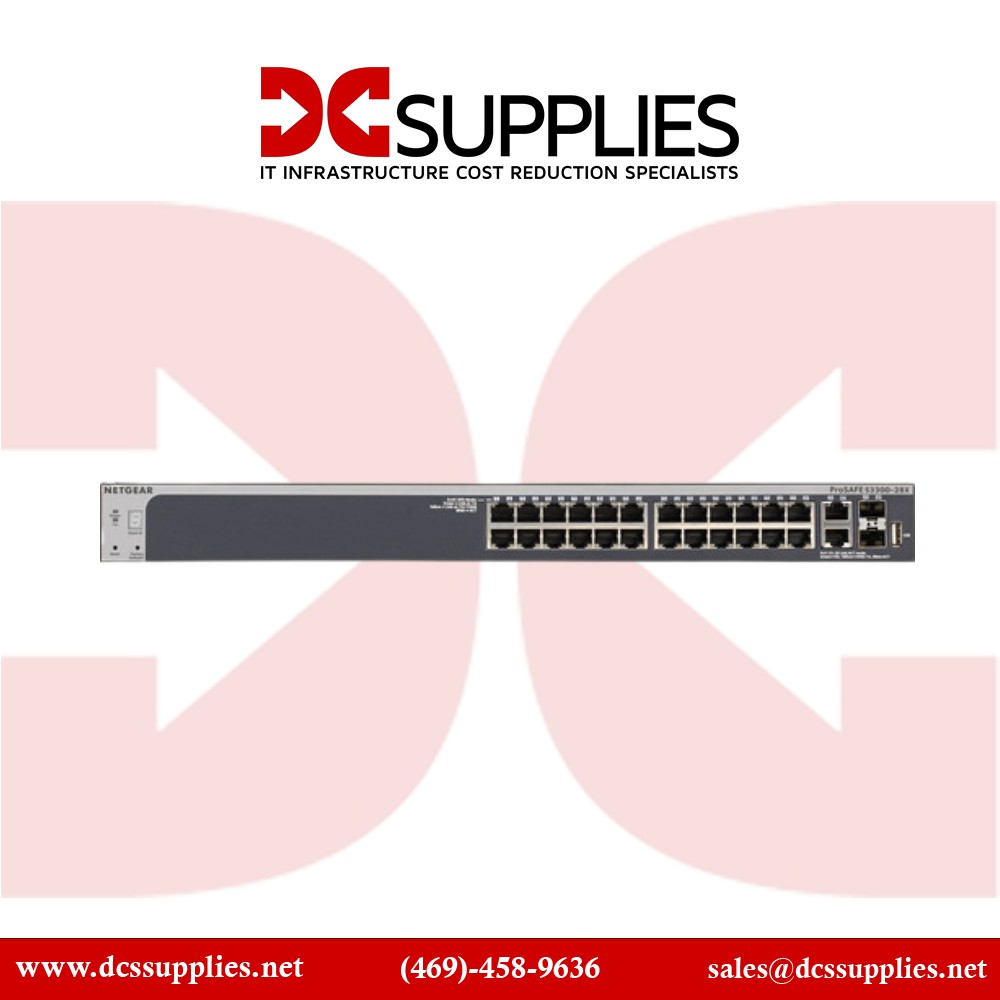

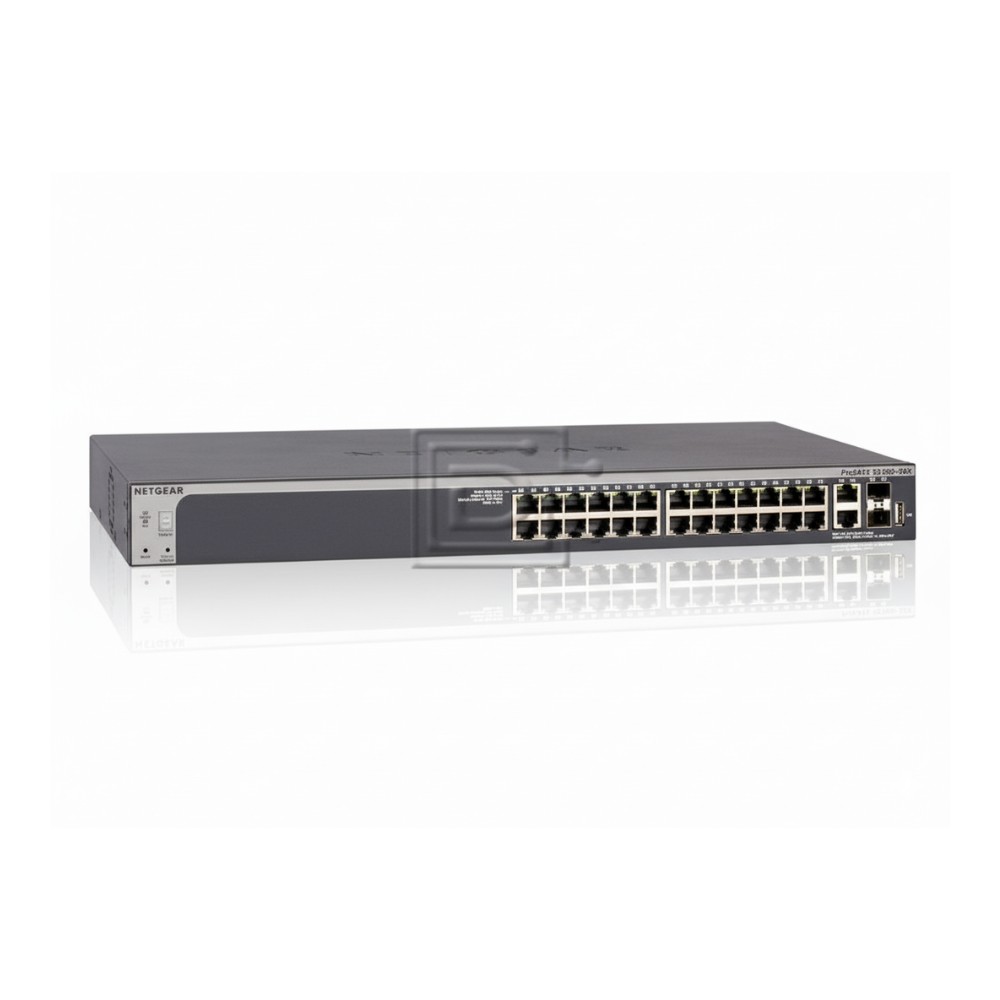

Netgear GS728TX-100NES - Stackable Smart Switch
Overview :
The Netgear GS728TX-100NES is a stackable smart managed switch used in small to medium networks to provide both gigabit access and 10 Gbps uplink capacity. It has 24 gigabit RJ-45 ports plus four 10G ports (two copper 10GBase-T and two SFP+). It is suited for deployment at the access or aggregation layer in a campus, branch office, or data closet. It can be managed individually or as a stack in a multi-switch deployment under Netgear's management interfaces.
Key Features :
24 × 1 G RJ-45 access ports + 4 × 10 G uplink ports
Supports stacking up to 6 switches (40 Gbps stacking)
Layer 2+ features: VLANs, ACLs, static routing
Non-blocking 128 Gbps switching fabric
Specifications :
| Parameter | Value |
|---|
| Brand | Netgear |
| Part Number | GS728TX-100NES |
| Product Type | Stackable Smart Managed Switch |
| Access Ports | 24 × 10/100/1000 RJ-45 |
| 10G Ports | 2 × 10GBase-T + 2 × 10G SFP+ |
| Switching Capacity | 128 Gbps |
| Stack Bandwidth | 40 Gbps (bi-directional) |
| VLAN Support | Up to 256 VLANs |
| ACL / Security | 480 shared ACL entries |
| Static Routes | 32 IPv4 static routes |
| Multicast Groups | Up to 1,024 |
| MAC Address Table | 8,192 (8K) entries |
| Power Consumption (Active) | ≈ 28.18 W |
| Dimensions (W × D × H) | 440 × 257 × 43 mm |
| Weight | ≈ 3.14 kg |
| Operating Temp | 0 °C to 50 °C |
