Detailed Specifications

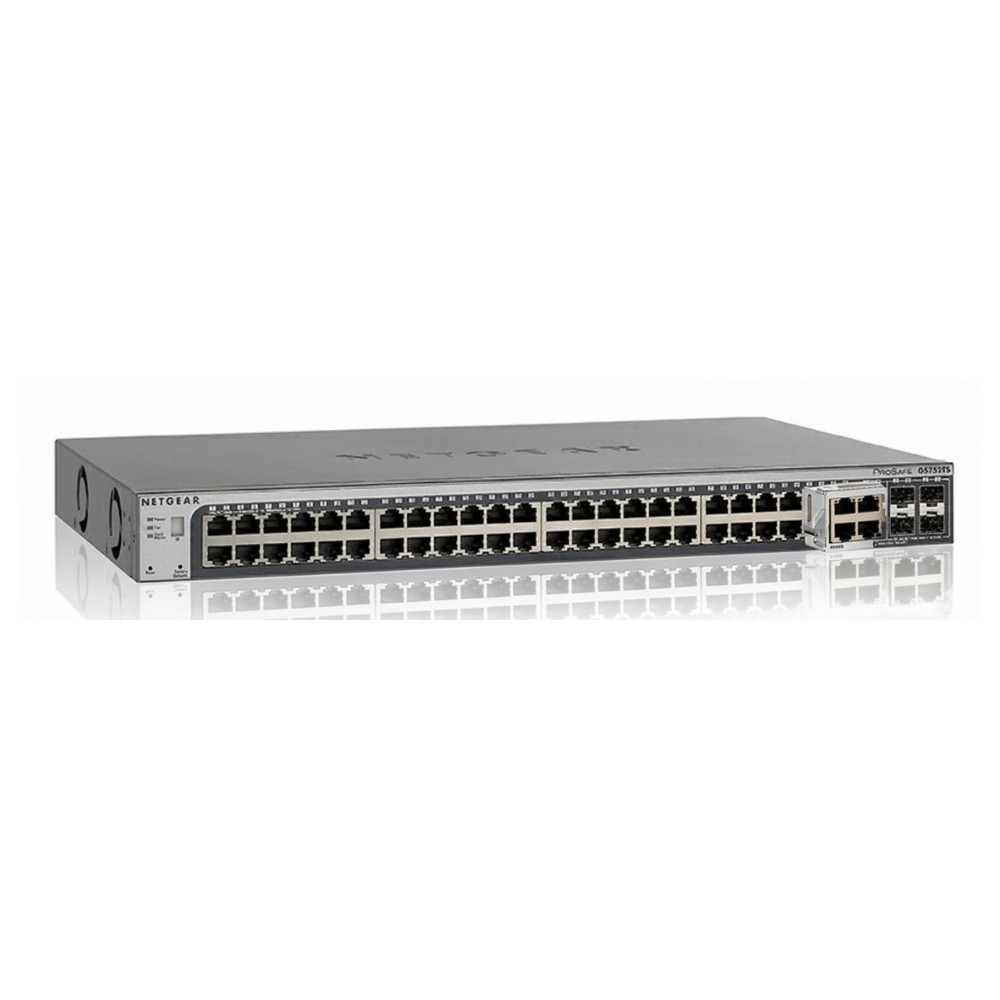

Netgear GS752TSB-100NAS - Stackable Smart Switch
Overview :
The Netgear GS752TSB-100NAS is a managed, stackable gigabit switch targeted at SMB and campus networks. It offers 48 copper Gigabit ports plus multiple SFP fiber links and a dedicated stacking bus to scale multiple units under a single management plane. Its stacking capability (up to 6 units) supports a resilient dual-ring 10 Gb/s interconnect. The switch fits in wiring closets or small data center access layers, supporting advanced VLAN, QoS, and L3-lite features for converged traffic.
Key Features :
48 × 10/100/1000BASE-T ports + 6 SFP slots (2 shared)
Dedicated 10 Gb stacking ports (dual-ring)
Layer 2 features with IPv4/IPv6 static routing
Hot-swappable stacking and modular management
Specifications :
| Spec | Value |
|---|
| Brand | Netgear |
| Part Number | GS752TSB-100NAS |
| Product Type | Stackable Smart Switch |
| Number of Access Ports | 48 × 10/100/1000 Mbps RJ-45 |
| Dedicated SFP Uplink Ports | 4 SFP ports |
| Stacking Ports | 2 front ports (dual purpose) at 10 Gbps (stacking/uplink) |
| Stack Maximum | Up to 6 units or 300 ports |
| Switching Capacity | (not officially disclosed) |
| MAC Address Table | 16K entries |
| Supported VLANs | Up to 256 VLANs |
| Link Aggregation | 8 LAGs, up to 8 members each |
| Operating Temperature | 0 °C to 50 °C |
| Power Supply | 100-240 V AC, 50-60 Hz |
| Power Consumption | ~77 W |
| Dimensions (W×D×H) | 440 × 257 × 43 mm |
| Weight | 3.88 kg |
