Detailed Specifications

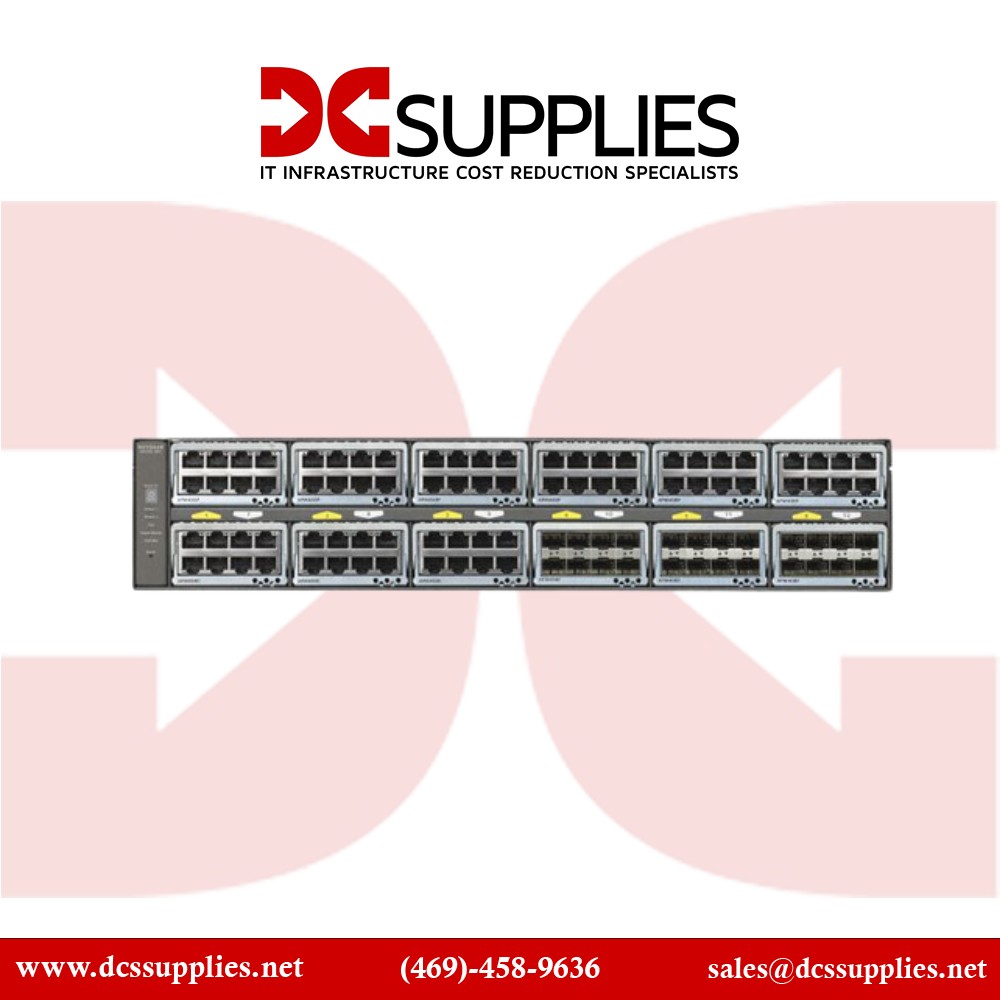

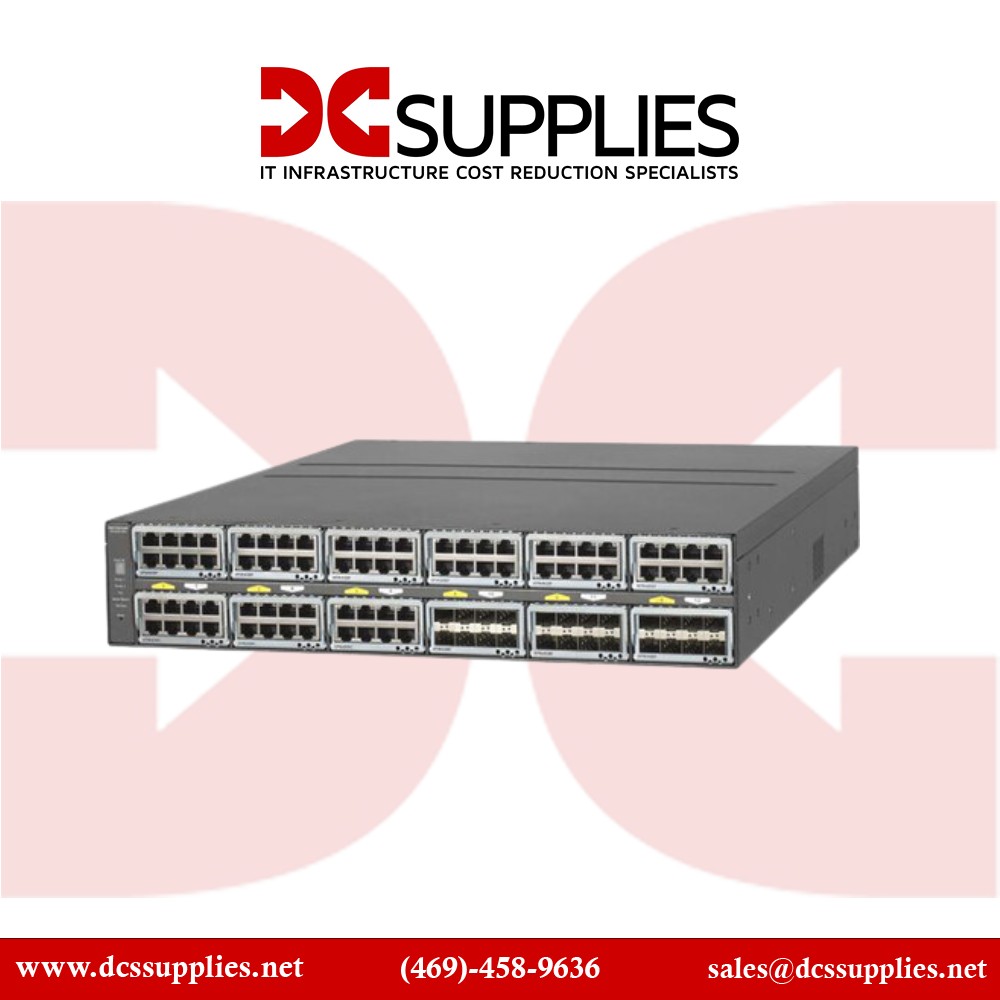

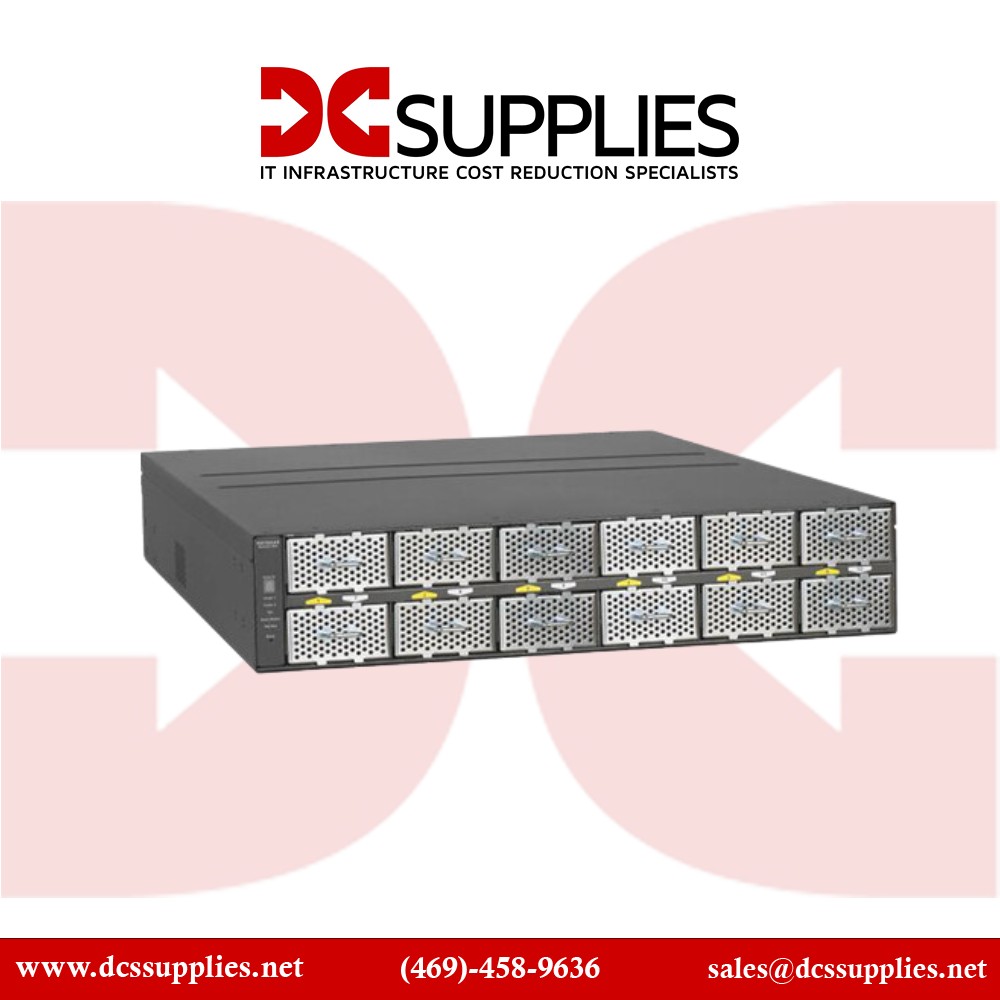

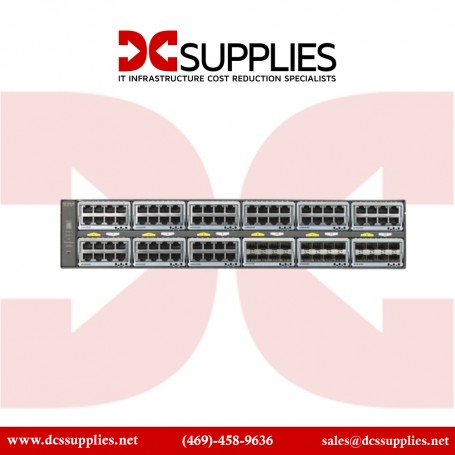

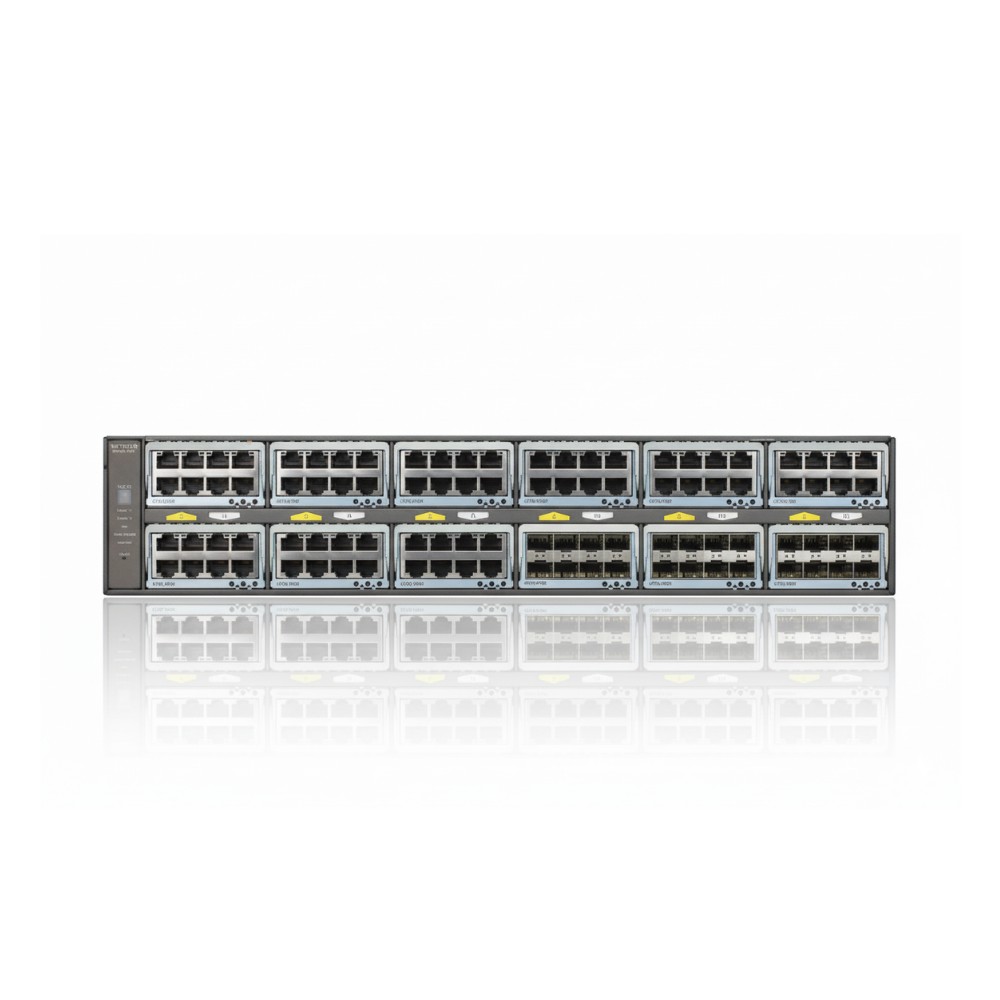

NETGEAR XSM4396K0-10000S - M4300-96X Modular Managed Switch
Overview :
The NETGEAR XSM4396K0-10000S is a 12-slot modular chassis designed for high-density networking environments. It supports up to 96 ports of 10G Ethernet or 24 ports of 40G Ethernet, offering flexibility for various network configurations. The chassis is compatible with NETGEAR's APM series expansion cards, allowing customization to meet specific networking needs. Ideal for data centers, enterprise networks, and AV-over-IP deployments, this empty chassis provides a scalable foundation for building robust network infrastructures.
Key Features
12-slot modular design for flexible port configurations
Supports up to 96 ports of 10G or 24 ports of 40G Ethernet
Compatible with NETGEAR APM series expansion cards
Redundant power supply support for enhanced reliability
Specifications
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | XSM4396K0-10000S |
| Product Type | Modular Managed Switch (Empty Chassis) |
| Form Factor | 2U Rackmount |
| Slot Configuration | 12 slots for APM series expansion cards |
| Port Density | Up to 96 ports of 10G or 24 ports of 40G |
| Power Supply Bays | 2 modular bays |
| Cooling | Front-to-back airflow |
| Management Ports | 1 x Out-of-band 1G Ethernet |
| Console Ports | 1 x RJ45 RS232, 1 x Mini-USB |
| USB Ports | 1 x USB 2.0 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Weight | Approximately 25.93 lbs |
| Dimensions (W x D x H) | 17.3 x 17.3 x 3.5 inches |
