Detailed Specifications

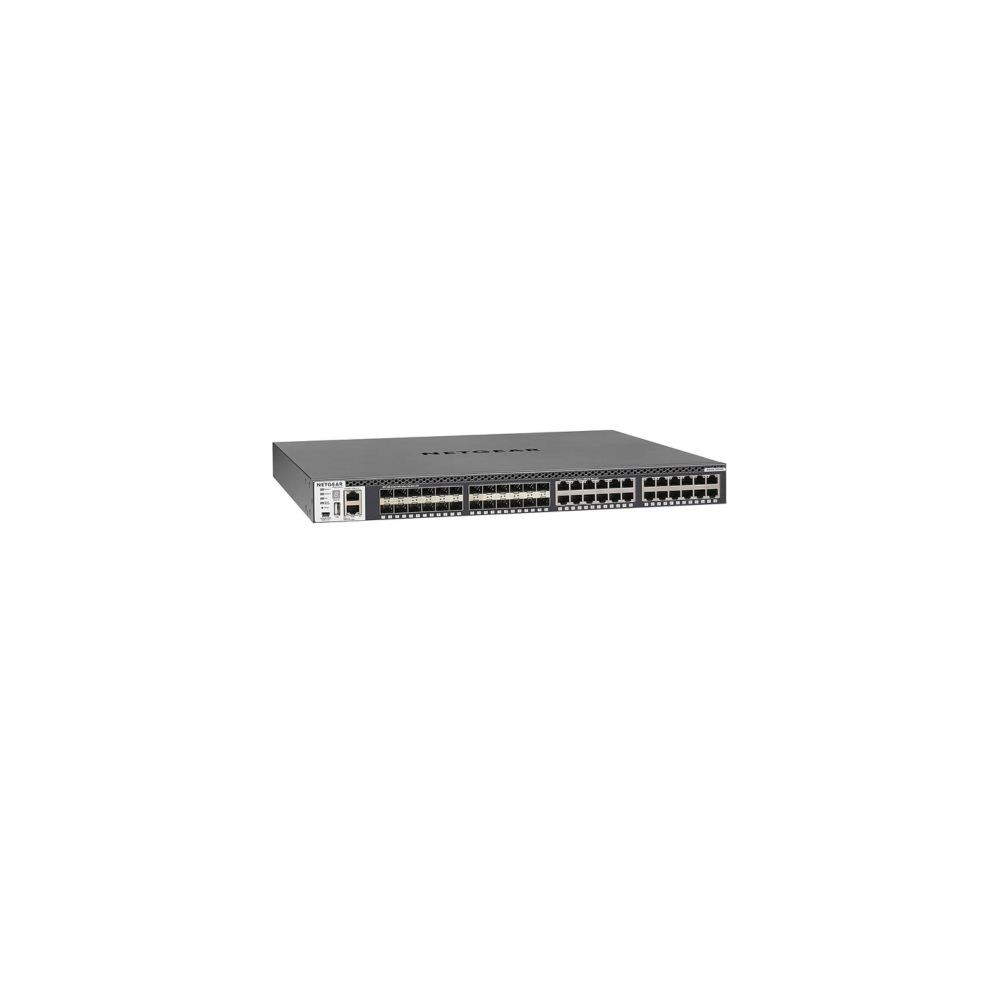

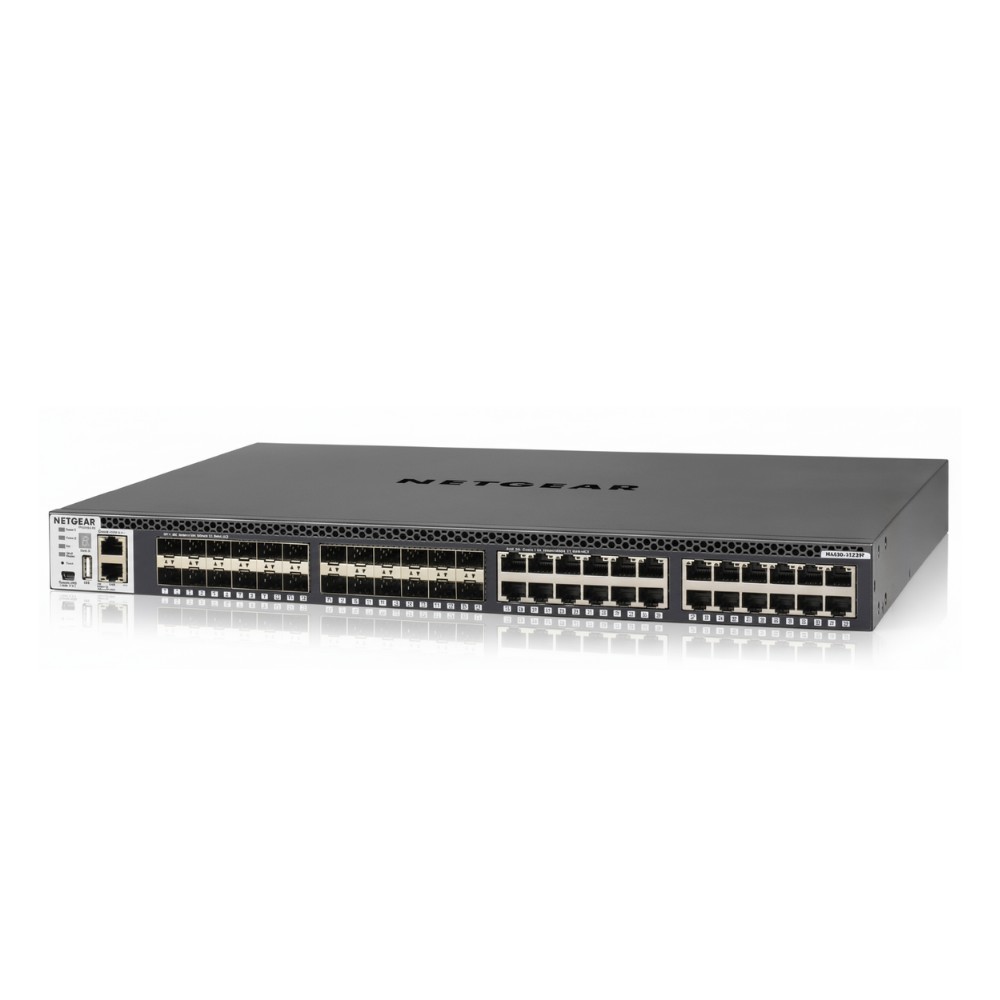

NETGEAR XSM4348S-100NES - M4300 Stackable Managed Switch
Overview :
The NETGEAR XSM4348S-100NES is a fully managed Layer 3 switch designed for high-density 10 Gigabit deployments in mid-enterprise edge and SMB core networks. It offers 24 10GBASE-T and 24 SFP+ ports, providing flexible connectivity options. The switch supports advanced Layer 3 features, including static, dynamic, and policy-based routing, and is stackable with other M4300 series switches for scalable network architectures. It is suitable for environments requiring high throughput and low-latency performance.
Key Features :
24x 10GBASE-T and 24x SFP+ ports
960 Gbps switching capacity
Stackable with other M4300 series switches
Layer 3 static, dynamic, and policy-based routing
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | XSM4348S-100NES |
| Product Type | Layer 3 Managed Switch |
| Ports | 24x 10GBASE-T, 24x SFP+ |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | 714 Mpps |
| Form Factor | 1U Rackmount |
| Redundant Power Supply | Yes (modular, 250W included) |
| Cooling | Fixed fan, front-to-back airflow |
| Management Ports | 1x 1G Ethernet, 1x RJ45 RS232, 1x Mini-USB, 1x USB |
| Stacking Support | Yes, with hitless failover |
| Layer 3 Features | Static, RIP, VRRP, OSPF, PIM |
| Power Consumption | Approximately 250W |
| Dimensions (WxDxH) | 17.32" x 13.58" x 1.73" |
