Detailed Specifications

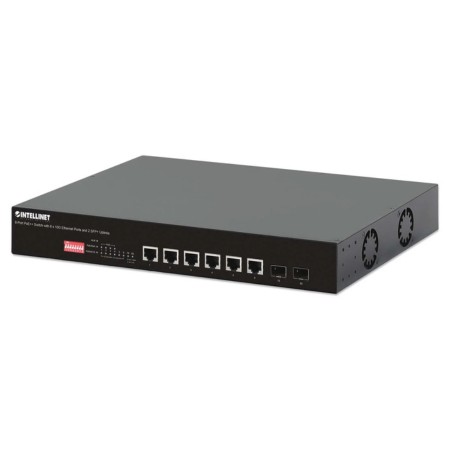

Intellinet 562317 8-Port PoE Switch
Overview :
Engineered for network administrators and enterprise procurement teams, this unmanaged multi-gigabit switch resolves high-density bandwidth bottlenecks in high-performance surveillance and edge deployments. It delivers rapid data distribution for high-demand hardware without complex configuration layers.
Equipped with six 10GBASE-T auto-sensing RJ45 ports and two open 10G SFP+ optical slots, it achieves a 160 Gbps switching fabric.Ports 1 through 4 support IEEE 802.3bt (4PPoE) delivering up to 90W per port, backed by a total 360W power budget, while ports 5 and 6 handle data-only multi-gigabit traffic.
Designed for standard IT equipment racks or desktop operation in enterprise distribution closets, campus data hubs, and high-density security infrastructures.Built-in DIP switches control baseline features like port isolation and QoS, while a Powered Device Monitor (PDM) automatically power-cycles unresponsive connected hardware.
Fully compatible with Wi-Fi 6/7 access points, PTZ security cameras, network-attached storage, and 10G servers. Do not use for legacy 10/100 fast Ethernet-exclusive environments where advanced multi-gigabit routing and high-power PoE++ capabilities are entirely unutilized.
Key Features :
Six ultra-fast 10GBASE-T RJ45 multi-gigabit ports
Four IEEE 802.3bt PoE++ ports providing up to 90W
Robust 360W total PoE power budget capacity
Two open 10G SFP+ slots for high-speed fiber uplinks
Built-in PDM watchdog for automated device recovery
Specifications :
| Specification | Value |
| Brand | Intellinet |
| Part Number | 562317 |
| Product Type | 8-Port PoE++ Switch |
| Switching Capacity | 160 Gbps |
| Total PoE Budget | 360 W |
| Max Power Consumption | 462 W |
| Ethernet Interfaces | Six 100M/1G/2.5G/5G/10G RJ45 |
| Uplink Interfaces | Two 10G SFP+ Open Slots |
| PoE Standards | IEEE 802.3bt (4PPoE) |
| Forwarding Rate | 119.04 Mpps |
| MAC Address Table | 16k entries |
| Form Factor | Desktop / 19-inch Rackmountable |
| Housing Material | Metal |
| Operating Temperature | 0 to 40 °C |
| Compliance | TAA, NDAA, FCC, CE, RoHS |
