Detailed Specifications

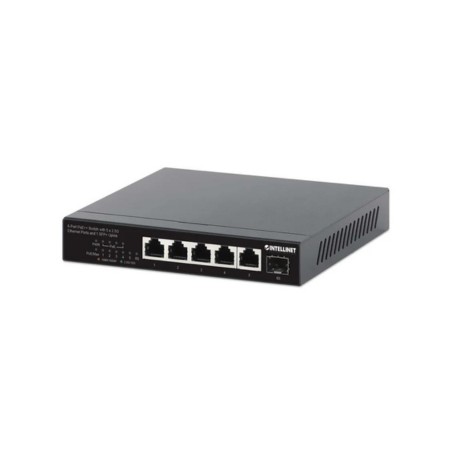

INTELLINET 562294 6-Port 2.5G Unmanaged PoE Ethernet Switch
Overview :
The INTELLINET 562294 is an unmanaged Multi-Gigabit Ethernet switch designed to provide high-speed network connectivity and Power over Ethernet for modern edge deployments. It features five 2.5GBASE-T RJ45 PoE++ ports and one 10G SFP+ uplink, making it suitable for high-bandwidth devices such as Wi-Fi 6/6E/7 access points, IP cameras, VoIP phones, and industrial network equipment.
Supporting IEEE 802.3bt, IEEE 802.3at, and IEEE 802.3af standards, the switch delivers up to 90 W per PoE port with a total PoE power budget of 120 W. A 45 Gbps switching capacity, store-and-forward architecture, and jumbo frame support ensure efficient forwarding of large data streams across enterprise and surveillance networks.
Its unmanaged, plug-and-play design requires no software configuration, enabling rapid deployment on desktops or wall-mounted installations. The fanless metal enclosure provides silent operation for branch offices, retail environments, network closets, and edge infrastructure.
The switch is compatible with IEEE 802.3bt/at/af-compliant powered devices and standard 10/100/1000/2500 Mbps Ethernet equipment. It is not intended for deployments requiring advanced Layer 2 management features such as VLANs, QoS configuration, or network routing.
Key Features :
- Five 2.5GBASE-T PoE++ RJ45 ports
- One 10G SFP+ uplink for fiber aggregation
- Delivers up to 90 W on PoE++ ports
- 120 W total PoE power budget
- Fanless metal housing with plug-and-play setup
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 562294 |
| Product Type | Unmanaged 2.5G PoE++ Ethernet Switch |
| Total Ports | 6 |
| RJ45 Ports | 5 × 10/100/1000/2500 Mbps PoE++ |
| Uplink Port | 1 × 10G SFP+ Slot |
| PoE Standards | IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af |
| Maximum PoE per Port | Up to 90 W (Ports 1-4) |
| Total PoE Budget | 120 W |
| Switching Capacity | 45 Gbps |
| MAC Address Table | 4K Entries |
| Jumbo Frame Support | Up to 12 KB |
| Switching Method | Store-and-Forward |
| Mounting Options | Desktop or Wall Mount |
| Housing | Metal, Fanless |
