Detailed Specifications

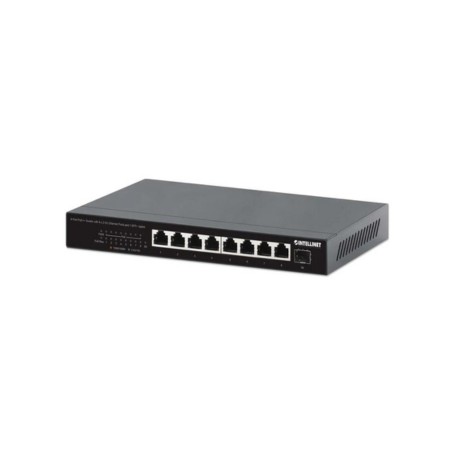

INTELLINET 562300 9-Port 2.5G Unmanaged PoE Ethernet Switch
Overview :
The INTELLINET 562300 is an unmanaged Multi-Gigabit Ethernet switch designed for high-bandwidth network deployments requiring both high-speed data connectivity and Power over Ethernet. It provides eight 2.5GBASE-T RJ45 PoE++ ports and one 10G SFP/SFP+ uplink slot for connecting access points, IP cameras, VoIP phones, thin clients, and other PoE-powered devices.
Supporting IEEE 802.3bt, 802.3at, and 802.3af standards, the switch delivers up to 90 W per PoE port with a total PoE power budget of 230 W. A 60 Gbps switching capacity enables high-throughput traffic for Wi-Fi 6/6E/7 access points, surveillance systems, and enterprise edge networks.
Its unmanaged, plug-and-play design requires no software configuration, making deployment straightforward in branch offices, network closets, retail locations, and enterprise edge environments. Automatic speed negotiation and Auto-MDIX simplify installation while built-in protection safeguards connected PoE devices.
The switch is compatible with IEEE 802.3bt/at/af-compliant powered devices and standard Ethernet equipment. It should not be used where Layer 2/Layer 3 management features such as VLAN configuration, QoS policies, or routing are required.
Key Features :
- Eight 2.5GBASE-T PoE++ RJ45 ports
- One 10G SFP/SFP+ uplink slot
- 230 W total PoE power budget
- Up to 90 W output per PoE port
- Plug-and-play unmanaged operation
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 562300 |
| Product Type | Unmanaged 2.5G PoE++ Ethernet Switch |
| Total Ports | 9 |
| RJ45 Ports | 8 × 10/100/1000/2500 Mbps PoE++ |
| Uplink Port | 1 × 10G SFP/SFP+ Slot |
| PoE Standards | IEEE 802.3bt, 802.3at, IEEE 802.3af |
| Maximum PoE per Port | 90 W |
| Total PoE Budget | 230 W |
| Switching Capacity | 60 Gbps |
| MAC Address Table | 16K Entries |
| Forwarding Mode | Store-and-Forward |
| Auto Features | Auto-MDIX, Auto-Negotiation |
| Management | Unmanaged |
| Housing | Metal |
