Detailed Specifications

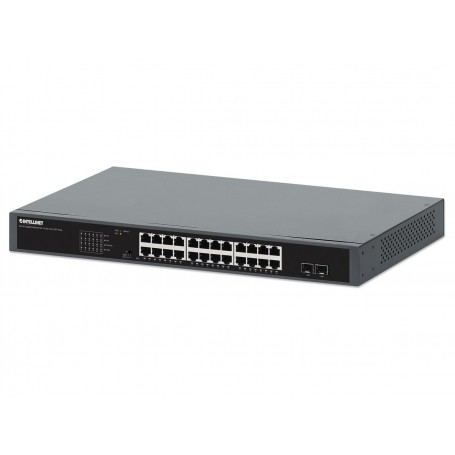

INTELLINET 561907 - 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
Overview :
The INTELLINET 561907 is a high-performance 24-port Gigabit Ethernet unmanaged switch featuring Power over Ethernet Plus (PoE+) capabilities and two dedicated 1G Small Form-Factor Pluggable (SFP) fiber uplink slots.It is engineered for network administrators and data center technicians to seamlessly pass both data and electrical power over standard Cat5e or Cat6 cables to numerous network devices.The unit solves the challenge of powering remote hardware×such as IP security cameras, wireless access points, and VoIP phones×without requiring separate electrical rewiring or bulky localized power adapters.
Technically, the switch delivers a total power budget of 370 watts, supporting up to 30 watts per port via the IEEE 802.3at/af standard.It includes advanced built-in features such as a Self-Healing Powered Device Monitor (PDM) network watchdog that automatically pings and reboots unresponsive PoE devices, a manual VLAN mode for port isolation, and a PoE Extend mode that stretches data and power delivery up to 250 meters at reduced speeds.It is housed in a sturdy 19-inch rack-mountable metal enclosure with dual high-volume cooling fans.
Deployment is optimized for enterprise surveillance systems, modern office local area networks, and multi-device IP deployments. Compatibility spans standard IEEE 802.3at/af compliant powered devices, 10/100/1000 Mbps Ethernet equipment, and optical fiber modules via the open SFP slots. However, this hardware is designed strictly for indoor rack installations and must be protected from extreme moisture and outdoor elements.
Key Features :
24 Gigabit RJ45 ports with auto-sensing 10/100/1000 Mbps speeds
Two dedicated 1G SFP fiber module slots for long-distance uplinks
Generous 370 W total PoE power budget (up to 30 W per port)
Self-Healing Powered Device Monitor (PDM) automatically restarts unresponsive PoE devices
Manual PoE Extend mode supports cable runs up to 250 m (820 ft.)
Manual VLAN mode isolates ports 1-24 while allowing communication with SFP uplinks
Robust 19-inch metal rackmount enclosure with dual internal cooling fans
Specifications :
| Specification | Details |
| Brand | Intellinet Network Solutions |
| Part Number | 561907 |
| Product Type | 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Slots |
| Total Ports | 26 ports (24 x RJ45, 2 x SFP) |
| PoE Power Budget | 370 Watts |
| Transmission Standards | IEEE 802.3, 802.3ab, 802.3az, 802.3af, 802.3at, 802.3u, 802.3x |
| Switching Capacity / Fabric | 52 Gbps |
| MAC Address Table | 8k entries with auto-learning and auto-aging |
| Buffer Memory | 4.1 Mbits |
| Environmental | Indoor 19" rack-mountable commercial deployment |
| Form Factor | 1U Rackmount metal housing |
