Detailed Specifications

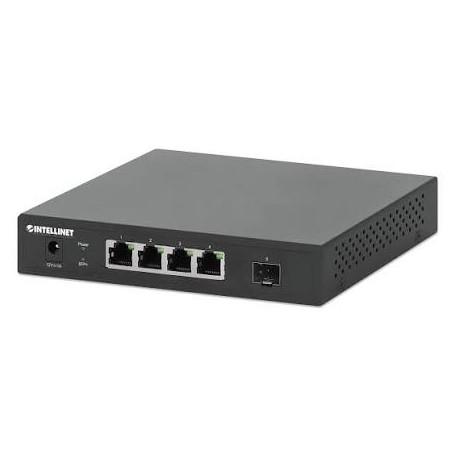

INTELLINET 562058 - 5-Port 2.5G Switch with 10G SFP+ Uplink
Overview :
The INTELLINET 562058 5-Port Desktop Switch provides multi-gigabit speeds to eliminate bandwidth bottlenecks across modern home and business networks.
Featuring four 2.5GBASE-T RJ45 Ethernet ports and one 10G SFP+ open slot, this unmanaged switch allows seamless connection to high-demand equipment like Wi-Fi 6/6E/7 access points, NAS units, servers, and NVRs.Its 40 Gbps switching fabric delivers reliable data transfers without requiring any complex setup.Encased in a compact, fanless metal housing, it ensures silent operation while supporting desktop placement or wall mounting.
Key Features :
4 x 2.5GBASE-T RJ45 ports (IEEE 802.3bz compliant) supporting auto-sensing speeds up to 2500 Mbps.
1 x 10G SFP+ open slot for high-speed fiber or DAC uplinks to servers, storage, or core switches.
40 Gbps switching capacity with a 29.76 Mpps forwarding rate.
Plug-and-play unmanaged operation with Auto-MDIX and NWay auto-negotiation.
Supports jumbo frames up to 12 KB and 802.3x flow control for smooth data transmission.
Fanless metal chassis for completely silent operation in home offices or work environments.
Flexible deployment options with included rubber feet and wall-mounting slots.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 562058 |
| Alphanumeric Part Number | IES-04-2.5G01 |
| EAN / UPC | 0766623562058 / 766623562058 |
| Product Type | 5-Port Unmanaged 2.5G Switch with 10G SFP+ Uplink |
| Total Network Ports | 5 Ports (4 x 2.5G RJ45, 1 x 10G SFP+ Open Slot) |
| Switch Fabric / Capacity | 40 Gbps |
| Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 4,000 entries |
| Buffer Memory | 8.1 Mbits |
| Jumbo Frames | Up to 12 KB |
| Power Supply Input | 100 to 240 VAC external power adapter (12V DC, 1.0A output) |
| Cooling System | Fanless (Silent) |
| Housing Material | Heavy-Duty Metal |
| Compliance | IEEE 802.3bz, IEEE 802.3ae, FCC, CE, RoHS, UKCA, NDAA |
| Dimensions (L x W x H) | 102 x 162 x 28 mm (4.02 x 6.38 x 1.10 in.) |
| Net Weight | 0.40 kg (0.88 lbs) |
