Detailed Specifications

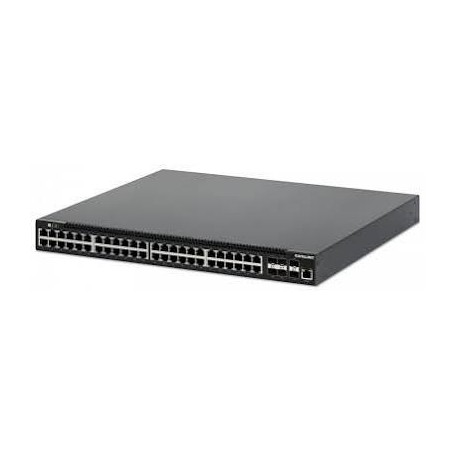

INTELLINET 562041 - 54-Port L3 Fully Managed PoE+ Switch
Overview :
The INTELLINET 562041 54-Port L3 Fully Managed PoE+ Switch delivers high-density power, ultra-fast core connectivity, and full Layer 3 routing for enterprise networks, IP surveillance systems, and VoIP deployments.
Featuring 48 Gigabit Ethernet PoE+ ports and 6 high-speed 10G SFP+ uplink slots, this switch offers dynamic IP routing capabilities (including OSPF, RIP, and VRRP) alongside a massive 216 Gbps switching fabric.It provides an 850 W total PoE budget with up to 30 W output per port.Equipped with a Self-Healing Powered Device Monitor (PDM / PD Alive Check), it automatically detects and restarts unresponsive connected PoE gear to eliminate unnecessary field support trips.
Key Features :
48 Gigabit Ethernet ports delivering data and 802.3at/af PoE+ power.
6 open SFP+ slots supporting 10 Gigabit high-speed fiber uplinks and stacking.
Dynamic Layer 3 IP routing including OSPF, RIP, VRRP, and static/policy routing.
Generous 850 W total PoE power budget with up to 30 W output per port.
Self-Healing Powered Device Monitor (PDM) automatically power-cycles non-responsive PoE equipment.
Advanced security and traffic optimization with VLANs, IPv4/IPv6 ACLs, QoS (CoS/DSCP), and IGMP Snooping.
Built-in 4 kV surge protection and 8 kV ESD protection for demanding networking environments.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 562041 |
| Alphanumeric Part Number | IPS-54GM06-10G-850W |
| Product Type | 54-Port L3 Fully Managed PoE+ Switch |
| Total Network Ports | 54 Ports (48 x RJ45 Gigabit PoE+, 6 x 10G SFP+ Open Slots) |
| Console Port | 1 x RJ45 Console Port |
| Switch Fabric / Capacity | 216 Gbps |
| MAC Address Table | 32,000 entries |
| Packet Buffer Memory | 16 Mbits |
| PoE Standards | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| Total PoE Power Budget | 850 W |
| Max Output Power per Port | 30 W |
| Management Protocols | Web Browser, SNMP, RMON, Telnet, SSH, CLI, Domotz Cloud |
| Cooling System | 3 x High-Volume Cooling Fans |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Compliance | FCC, CE, RoHS, UKCA, NDAA |
| Dimensions (L x W x H) | 350 x 440 x 44 mm (13.78 x 17.32 x 1.73 in.) |
| Net Weight | 5.5 kg (12.12 lbs) |
