Detailed Specifications

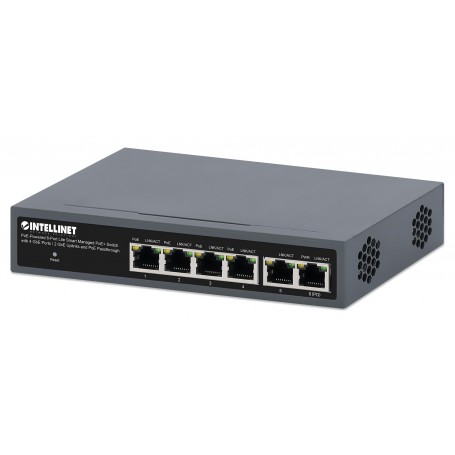

INTELLINET 562034 - PoE-Powered 6-Port Lite Smart Managed PoE+ Switch
Overview :
The INTELLINET 562034 6-Port Lite Smart Managed Gigabit PoE+ Switch delivers power and high-speed data distribution across IP surveillance, VoIP, and wireless network installations.
Featuring PoE Passthrough technology, this switch can draw operational power over its 95 W IEEE 802.3bt PD input port from a PoE++ switch or injector×eliminating the need for local AC power outlets while extending network range up to 200 m (656 ft.).Alternatively, it can be powered via standard AC power.It delivers up to 30 W per port with a 60 W total PoE budget across 4 PSE output ports.Equipped with a Self-Healing Network Powered Device Monitor (PDM), it automatically reboots unresponsive PoE devices to ensure maximum network uptime.
Key Features :
6 Gigabit Ethernet RJ45 ports (4 x PoE+ output ports, 2 x Gigabit uplink/PD input ports).
Dual power input flexibility: Powered via 95 W PoE++ PD input or included AC power cable.
Total PoE power budget of 60 W with up to 30 W output per port.
Extends network reach between PoE source and powered devices from 100 m to 200 m (656 ft.).
Self-Healing Powered Device Monitor (PDM) watchdog automatically power-cycles non-responsive PoE gear.
User-friendly Lite Smart Management web GUI with VLAN, QoS, port mirroring, and bandwidth control.
Built-in 4 kV surge protection, ESD protection, and grounding point for enhanced reliability.
Fanless metal housing design for silent operation on a desktop or wall mount.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 562034 |
| Product Type | 6-Port Lite Smart Managed PoE+ Switch with PoE Passthrough |
| Total Network Ports | 6 x 10/100/1000 Mbps RJ45 Ports |
| PoE Output Ports (PSE) | 4 x Gigabit PoE+ Ports (IEEE 802.3at/af, up to 30 W per port) |
| Uplink / Power Input Ports (PD) | 2 x Gigabit RJ45 Ports (1 x IEEE 802.3bt PD Input up to 95 W) |
| Total PoE Power Budget | 60 W (via AC or 95 W PD Input) |
| Switch Fabric / Capacity | 12 Gbps |
| Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8,000 entries |
| Packet Buffer Memory | 4.1 Mbits |
| Management Features | Web Interface, Domotz Cloud Compatible, VLAN, QoS, Bandwidth Control |
| Surge Protection | 4 kV Common Mode / 2 kV Differential Mode |
| Cooling System | Fanless (Silent) |
| Housing Material | Metal |
| Dimensions (L x W x H) | 94 x 168 x 32 mm (3.7 x 6.61 x 1.26 in.) |
| Net Weight | 0.55 kg (1.21 lbs) |
