Detailed Specifications

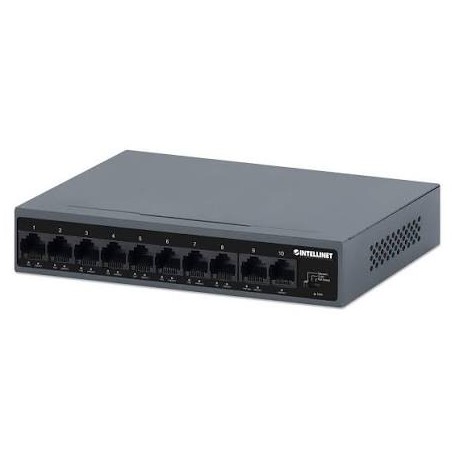

INTELLINET 562102 - 10-Port PoE+ Switch
Overview :
The INTELLINET 562102 10-Port PoE+ Switch delivers power and Fast Ethernet connectivity for IP surveillance cameras, VoIP phones, and wireless access points.
Equipped with 8 IEEE 802.3at/af-compliant PoE+ ports and 2 dedicated Fast Ethernet RJ45 uplink ports, it provides a 95 W total power budget with up to 30 W output per port.Despite being an unmanaged switch, it features an integrated Powered Device Monitor (PDM / PD Alive Check) that automatically monitors and restarts unresponsive connected PoE devices to reduce maintenance downtime.A front-panel slide switch allows easy hardware toggling between Default, Port Isolation (VLAN), and PoE Extend Mode (extending reach up to 250 m / 820 ft.).
Key Features :
8 Fast Ethernet PoE+ ports supplying both data and power over standard Ethernet cables.
2 dedicated RJ45 Fast Ethernet uplink ports for connecting to routers or additional switches.
Total PoE power budget of 95 W with up to 30 W available per port.
Self-Healing Powered Device Monitor (PDM) automatically power-cycles non-responsive PoE equipment.
Hardware DIP switch modes:
Default: Standard full-communication switch operation.
VLAN:Isolates ports 1 to 8 from each other while maintaining communication with uplink ports 9 & 10.
PoE Extend:Extends transmission distance up to 250 m (820 ft.) at 10 Mbps.
Compact, fanless design for quiet desktop or wall-mount deployment.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 562102 |
| Alphanumeric Part Number | IPS-08F02-95W |
| Product Type | 10-Port PoE+ Switch |
| Total Network Ports | 10 Ports (8 x PoE+ RJ45, 2 x Uplink RJ45) |
| Port Speed | 10/100 Mbps (Fast Ethernet) |
| Switch Fabric / Capacity | 2.0 Gbps |
| MAC Address Table | 1,000 entries |
| Buffer Memory | 448 Kbits |
| PoE Standards | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| Total PoE Power Budget | 95 W |
| Max Output Power per Port | 30 W |
| Special Modes | Hardware Switch (Default / VLAN / PoE Extend) |
| Cooling System | Fanless (Silent) |
| Power Supply Input | 55 V DC, 2 A (External Power Adapter) |
| Compliance | IEEE 802.3az, CE, FCC, NDAA |
| Dimensions (W x D x H) | 168 x 94 x 32 mm (6.61 x 3.7 x 1.26 in.) |
| Net Weight | 0.38 kg (0.84 lbs) |
