Detailed Specifications

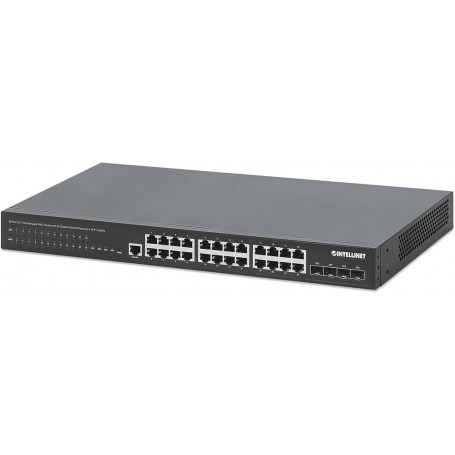

INTELLINET 561846 - 28-Port L2+ Fully Managed PoE+ Switch
Overview :
The INTELLINET 561846 28-Port L2+ Fully Managed PoE+ Switch delivers intelligent, high-density power and secure edge connectivity for small to medium enterprise networks, surveillance systems, and VoIP deployments.
Featuring 24 Gigabit Ethernet PoE+ ports and 4 high-speed 10G SFP+ uplink slots, this switch provides exceptional switching performance with a 128 Gbps fabric capacity.It supplies up to 30 W per port with a generous 370 W total PoE power budget.Equipped with an integrated Powered Device Monitor (PDM / PD Alive Check), the switch automatically detects and reboots unresponsive connected PoE devices to ensure maximum uptime.Advanced L2+ management features×including VLAN, QoS, IGMP Snooping, ACLs, and SSH/SNMP management×allow full network optimization and remote administration.
Key Features :
24 Gigabit Ethernet ports providing power and data to 802.3at/af PoE devices.
4 SFP+ slots supporting 10G uplinks or link aggregation (trunking up to 40G).
Total PoE power budget of 370 W with up to 30 W output per port.
Self-Healing Powered Device Monitor (PDM) automatically power-cycles non-responsive PoE equipment.
Comprehensive Layer 2+ management including Web GUI, SNMP, RMON, Telnet, SSH, and CLI console.
Advanced security and traffic optimization with VLANs, ACLs, QoS (CoS/DSCP), and IGMP Snooping.
Green Ethernet (IEEE 802.3az) technology reduces power usage based on cable length and port link status.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 561846 |
| Alphanumeric Part Number | IPS-28GM04-10G-370W |
| Product Type | 28-Port L2+ Fully Managed PoE+ Switch |
| Total Port Count | 28 Ports (24 x RJ45 Gigabit PoE+, 4 x 10G SFP+ Slots) |
| Console Port | 1 x RJ45 Console Port |
| Switch Fabric / Capacity | 128 Gbps |
| MAC Address Table | 16,000 entries |
| Buffer Memory | 12 Mbits |
| PoE Standards | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| Total PoE Power Budget | 370 W |
| Max Output Power per Port | 30 W |
| Housing Material | Cold-Rolled Metal (1U Rackmount) |
| Cooling System | Dual High-Volume Cooling Fans |
| Management Protocols | Web Browser, SNMP, RMON, Telnet, SSH, CLI |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (L x W x H) | 208 x 440 x 44 mm (8.19 x 17.32 x 1.73 in.) |
| Net Weight | 3.0 kg (6.61 lbs) |
