Detailed Specifications

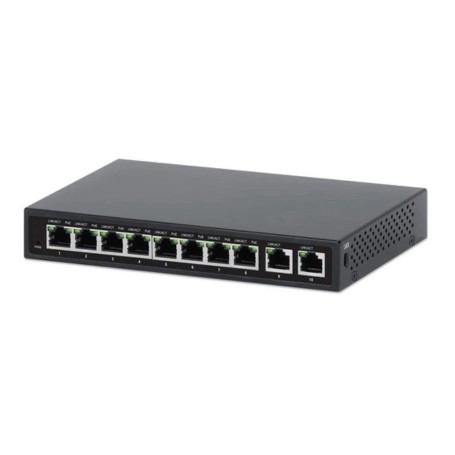

INTELLINET 562027 10-Port Gigabit PoE+ Ethernet Switch
Overview :
The INTELLINET 562027 is an unmanaged Gigabit PoE+ Ethernet switch designed to provide data connectivity and power delivery for IP-based network devices in commercial, surveillance, and branch office environments. It simplifies deployment by transmitting power and Gigabit Ethernet over a single network cable to compatible IEEE 802.3af/at devices.
The switch features eight Gigabit PoE+ RJ45 ports and two dedicated Gigabit RJ45 uplink ports. It supports up to 30 W per PoE port with a shared PoE power budget of 58 W, making it suitable for IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment. A 20 Gbps switching capacity and store-and-forward architecture ensure reliable Layer 2 forwarding performance.
Its fanless metal enclosure supports desktop or wall-mounted installation, making it suitable for network cabinets, retail locations, edge deployments, and surveillance installations where silent operation is preferred. Manual VLAN isolation and Flow Control modes provide additional deployment flexibility without requiring switch management.
The switch is designed for unmanaged Gigabit Ethernet networks using IEEE 802.3af/at PoE devices. It is not intended for deployments requiring Layer 2 management, advanced QoS, SNMP monitoring, or 10 Gigabit network connectivity.
Key Features :
- Eight Gigabit IEEE 802.3af/at PoE+ ports
- 58 W shared PoE power budget
- Dual Gigabit RJ45 uplink ports
- Fanless metal enclosure for silent operation
- VLAN isolation mode for enhanced security
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 562027 |
| Product Type | Unmanaged Gigabit PoE+ Ethernet Switch |
| PoE Ports | 8 × 10/100/1000 Mbps RJ45 PoE+ |
| Uplink Ports | 2 × 10/100/1000 Mbps RJ45 |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Maximum PoE Output | Up to 30 W per PoE port |
| Total PoE Budget | 58 W |
| Switching Capacity | 20 Gbps |
| Forwarding Mode | Store-and-Forward |
| MAC Address Table | 4K Entries |
| Jumbo Frame Support | Up to 9216 Bytes |
| Form Factor | Desktop, Wall Mount |
| Operating Temperature | 0°C to 40°C |
| Energy Features | IEEE 802.3az Energy Efficient Ethernet |
