Detailed Specifications

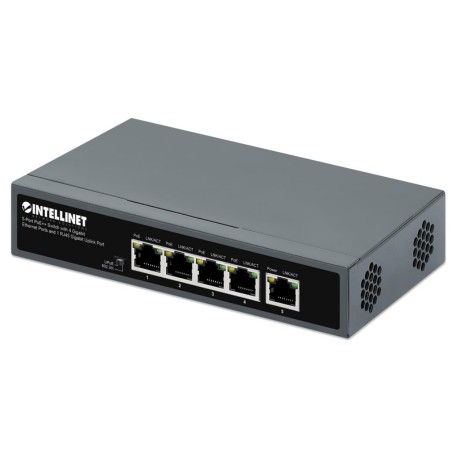

INTELLINET 562010 5-Port PoE Gigabit Ethernet Switch
Overview :
The INTELLINET 562010 is an unmanaged Gigabit Ethernet PoE++ switch designed for powering high-demand network devices while providing reliable Gigabit connectivity. It is commonly deployed in surveillance systems, enterprise edge networks, retail environments, and small business installations where high-power PoE is required.
The switch features four 10/100/1000 Mbps IEEE 802.3bt PoE++ ports capable of delivering up to 90 W per port, plus one dedicated Gigabit RJ45 uplink port. With a total PoE power budget of 140 W, it supports power-hungry devices such as PTZ IP cameras, POS terminals, thin clients, and high-performance wireless access points. The store-and-forward switching architecture, jumbo frame support, and automatic speed negotiation ensure dependable network performance.
Its fanless desktop metal enclosure supports both desktop and wall-mount installation, making it suitable for wiring closets, branch offices, edge computing, and surveillance cabinets where silent operation is preferred.
The switch is intended for unmanaged Gigabit Ethernet deployments requiring IEEE 802.3af/at/bt power delivery. It is not suitable for environments requiring Layer 2 management features such as VLANs, QoS configuration, or network monitoring.
Key Features :
- Four Gigabit IEEE 802.3bt PoE++ output ports
- Delivers up to 90 W per powered device
- 140 W shared PoE power budget
- Fanless metal chassis for silent deployment
- Dedicated Gigabit RJ45 uplink connection
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 562010 |
| Product Type | Unmanaged Gigabit PoE++ Ethernet Switch |
| PoE Ports | 4 × 10/100/1000 Mbps RJ45 PoE++ |
| Uplink Port | 1 × 10/100/1000 Mbps RJ45 |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (4PPoE) |
| Maximum PoE Output | Up to 90 W per PoE port |
| Total PoE Budget | 140 W |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K entries |
| Jumbo Frame Support | Up to 9216 Bytes |
| Switching Method | Store-and-Forward |
| Form Factor | Desktop, Wall Mount |
| Operating Temperature | 0°C to 40°C |
