Detailed Specifications

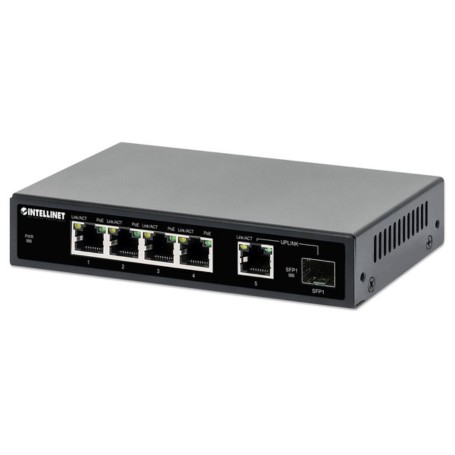

INTELLINET 561822 5-Port Gigabit Ethernet PoE+ Switch with SFP Port
Overview :
The INTELLINET 561822 is an unmanaged Gigabit Ethernet PoE+ switch designed for small business networks, surveillance systems, branch offices, and edge deployments. It delivers both data connectivity and Power over Ethernet (PoE) through a single network cable, reducing installation complexity for compatible devices.
The switch provides four IEEE 802.3af/at PoE+ Gigabit RJ45 ports, one additional Gigabit RJ45 uplink, and one dedicated Gigabit SFP uplink slot. With a total PoE power budget of 91 W and up to 30 W available per PoE port, it supports IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment while maintaining Gigabit network performance.
Its compact fanless metal enclosure supports desktop or wall-mounted installation, making it suitable for network closets, retail locations, surveillance deployments, and distributed enterprise environments where silent operation is preferred.
The switch is intended for Gigabit Ethernet environments requiring IEEE 802.3af/at PoE. It is not suitable for managed network deployments requiring VLANs, Layer 2 management, QoS configuration, or devices requiring PoE standards beyond IEEE 802.3at.
Key Features :
- Delivers 91 W shared IEEE 802.3af/at PoE budget
- Four Gigabit PoE+ ports support up to 30 W each
- Dedicated Gigabit RJ45 and SFP uplink interfaces
- Fanless metal enclosure for silent operation
- Desktop or wall-mount installation flexibility
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 561822 |
| Product Type | Unmanaged Gigabit PoE+ Ethernet Switch |
| Ethernet Ports | 4 × 10/100/1000 Mbps PoE+ RJ45 |
| Additional RJ45 Port | 1 × 10/100/1000 Mbps Gigabit RJ45 |
| SFP Port | 1 × Gigabit SFP slot |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output | Up to 30 W per PoE port |
| Total PoE Budget | 91 W |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.928 Mpps |
| Switching Method | Store-and-Forward |
| Mounting | Desktop, Wall Mount |
| Operating Temperature | 0°C to 40°C |
| Power Input | 100-240 VAC, 50/60 Hz |
