Detailed Specifications

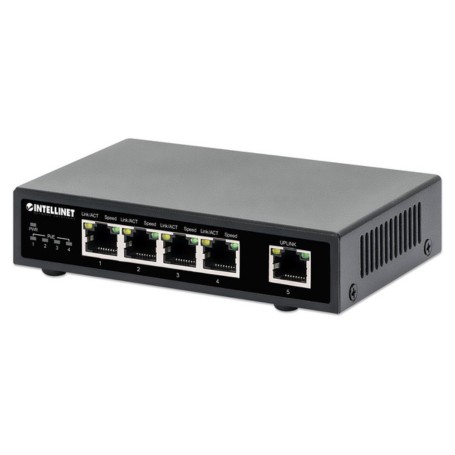

Intellinet 561839 5-Port Gigabit Ethernet PoE Switch
Overview :
The Intellinet 561839 is an unmanaged Gigabit Ethernet PoE+ switch designed to deliver both power and data over a single Ethernet cable to PoE-enabled network devices. It features four IEEE 802.3af/at compliant PoE+ output ports and one dedicated Gigabit uplink port, making it suitable for small business, surveillance, and edge networking applications.
The switch provides a total PoE power budget of 62 W, with up to 30 W available per PoE port. It supports Gigabit Ethernet connectivity on all ports, a 10 Gbps switching fabric, store-and-forward switching architecture, auto-MDI/MDIX, IEEE 802.3x flow control, and automatic PoE detection with overload and short-circuit protection. The fanless metal enclosure enables silent desktop operation.
Designed for desktop deployment, the switch is ideal for connecting IP cameras, wireless access points, VoIP phones, and other PoE-powered devices in offices, retail locations, and branch networks. It is not intended for deployments requiring Layer 2 management features such as VLAN configuration, QoS policies, or SNMP monitoring.
Key Features :
- Four IEEE 802.3af/at PoE+ output ports
- 62 W total PoE budget with 30 W per port
- 10 Gbps switching fabric for Gigabit traffic
- Fanless metal housing for silent operation
- Dedicated Gigabit uplink RJ45 port
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 561839 |
| Product Type | Unmanaged Gigabit PoE+ Ethernet Switch |
| Network Ports | 5 × 10/100/1000 Mbps RJ45 |
| PoE Ports | 4 × IEEE 802.3af/at PSE |
| Uplink Port | 1 × Gigabit RJ45 |
| PoE Budget | 62 W |
| Maximum PoE Output | 30 W per port |
| Switching Capacity | 10 Gbps |
| MAC Address Table | 2K entries |
| Switching Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Full Duplex |
| Housing | Metal, Fanless Desktop Design |
| Certifications | FCC, CE, RoHS, NDAA |
| Power Input | 100-240 VAC, 50-60 Hz (External Power Adapter) |
