Detailed Specifications
Intellinet 561426 24-Port Gigabit Ethernet PoE+ Web-Managed Switch
Overview :

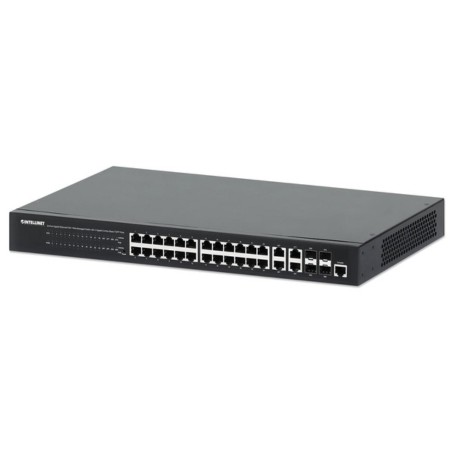

The Intellinet 561426 is a Layer 2 web-managed Gigabit Ethernet switch designed for enterprise, surveillance, campus, and edge network deployments that require centralized management and high-density Power over Ethernet (PoE+). It provides twenty-four Gigabit RJ45 PoE+ ports with four shared Gigabit Combo Base-T/SFP uplink ports for flexible copper or fiber connectivity.
The switch complies with IEEE 802.3af/at PoE standards and delivers a total PoE power budget of 370 W, supplying up to 30 W per port. It features a self-healing Powered Device Monitor (PDM), VLAN support, QoS, Link Aggregation, IGMP Snooping, STP/RSTP, IPv4/IPv6 management, SNMP, and web-based administration for reliable network operation.
Designed for standard 19-inch rack installation, the switch is suitable for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices in enterprise and surveillance environments. It is not intended for Layer 3 routing applications or networks requiring 10 Gigabit uplinks.
Key Features :
- Twenty-four Gigabit PoE+ ports with 370 W budget
- Four Gigabit Combo Base-T/SFP uplink ports
- Self-healing Powered Device Monitor function
- Layer 2 web management with IPv4/IPv6 support
- Standard 19-inch rackmount metal enclosure
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 561426 |
| Product Type | Web-Managed Gigabit PoE+ Ethernet Switch |
| Network Ports | 24 × 10/100/1000 Mbps RJ45 PoE+ |
| Uplink Ports | 4 × Gigabit Combo Base-T/SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output | 30 W per PoE port |
| Total PoE Budget | 370 W |
| Switching Capacity | 56 Gbps |
| MAC Address Table | 8K entries |
| Management | Web GUI, SNMP, IPv4/IPv6, QoS, VLAN |
| Layer 2 Features | STP/RSTP, IGMP Snooping, Link Aggregation |
| Special Feature | Powered Device Monitor (PDM) |
| Mounting | 19-inch Rackmount |
| Power Input | 100-240 VAC, 50/60 Hz |
