Detailed Specifications

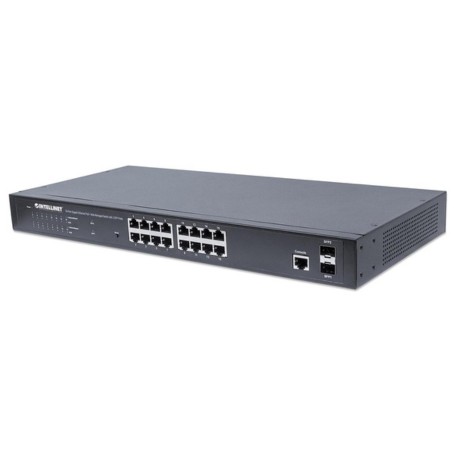

Intellinet 561198 16-Port Gigabit Ethernet PoE Web-Managed Switch
Overview :
The Intellinet 561198 is a Layer 2+ web-managed Gigabit Ethernet switch designed for enterprise, surveillance, and edge network deployments requiring centralized management and Power over Ethernet (PoE+). It provides sixteen Gigabit RJ45 PoE+ ports and two dedicated Gigabit SFP uplink ports for high-speed fiber connectivity.
Supporting IEEE 802.3af/at standards, the switch delivers a total PoE power budget of 374 W with up to 30 W per port. It offers a 36 Gbps switching fabric, 8K MAC address table, jumbo frame support, IPv4/IPv6 management, VLANs, Link Aggregation, QoS, SNMP, RMON, IGMP Snooping, and STP/RSTP for secure and efficient network operation.
Designed for standard 19-inch rack installation, the switch is well suited for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices in data centers, enterprise networks, and branch offices. It is not intended for deployments requiring Layer 3 routing or 10 Gigabit uplinks.
Key Features :
- Sixteen Gigabit PoE+ ports with 374 W budget
- Two dedicated Gigabit SFP uplink interfaces
- Layer 2+ web management with IPv4/IPv6 support
- 36 Gbps switching fabric for high throughput
- Rackmount design for enterprise deployments
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 561198 |
| Product Type | Web-Managed Gigabit PoE+ Ethernet Switch |
| Total Ports | 16 × Gigabit RJ45 PoE+ + 2 × Gigabit SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output | 30 W per PoE port |
| Total PoE Budget | 374 W |
| Switching Capacity | 36 Gbps |
| MAC Address Table | 8,000 entries |
| Packet Buffer | 512 KB |
| Jumbo Frame Support | Up to 9 KB |
| Management | Web GUI, SNMP v1/v2c/v3, Telnet, SSH, RMON |
| Layer Features | VLAN, QoS, STP/RSTP, Link Aggregation, IGMP Snooping |
| Mounting | 19-inch Rackmount |
| Power Input | 100-240 VAC, 50/60 Hz |
