Detailed Specifications

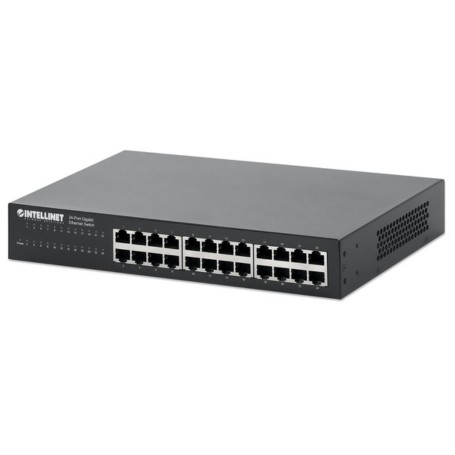

Intellinet 561273 24-Port Gigabit Ethernet Switch
Overview :
Intellinet 561273 is a 24-port unmanaged Gigabit Ethernet switch designed for expanding wired network infrastructure in small offices, server rooms, branch environments, and rack installations. It provides high-density copper connectivity for computers, servers, network printers, and other Ethernet devices.
The switch provides 24 x 10/100/1000 Mbps RJ45 ports with a 48 Gbps switching capacity, store-and-forward architecture, Auto-MDI/MDIX support, and IEEE 802.3az Energy Efficient Ethernet functionality. It operates without configuration and supports plug-and-play deployment.
The metal chassis supports desktop placement or 19-inch rack mounting, making it suitable for network cabinets and edge deployments. It is not intended for environments requiring managed switching, VLAN configuration, PoE delivery, or fiber uplink connectivity.
Key Features :
- 24 Gigabit RJ45 ports support high-speed Ethernet
- 48 Gbps switching capacity handles network traffic
- Auto-MDI/MDIX simplifies cable installation
- 19-inch rack mounting supports cabinet deployment
- IEEE 802.3az reduces unnecessary power usage
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 561273 |
| Product Type | Gigabit Ethernet Switch |
| Switch Type | Unmanaged Switch |
| Ports | 24 x RJ45 Gigabit Ethernet |
| Port Speed | 10/100/1000 Mbps |
| Switching Capacity | 48 Gbps |
| Switching Architecture | Store-and-forward |
| MAC Address Table | 16K entries |
| Jumbo Frame Support | Up to 9 KB |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3az, 802.3x |
| Auto-MDI/MDIX | Yes |
| Power Input | 100-240 V AC, 50/60 Hz |
| Power Consumption | 16 W maximum |
| Form Factor | Desktop / 19-inch Rack Mount |
| Housing Material | Metal |
| Operating Temperature | 0-40°C |
