Detailed Specifications

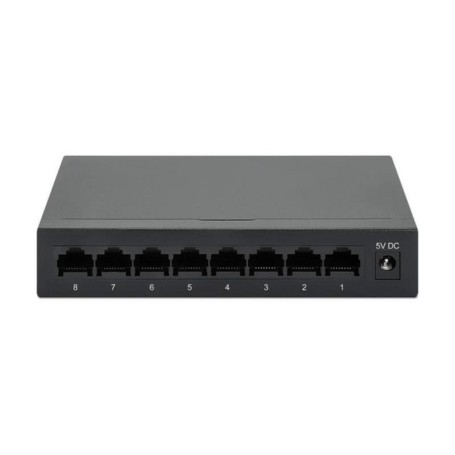

Intellinet 530347 8-Port Gigabit Ethernet Switch
Overview :
Intellinet 530347 is an unmanaged Gigabit Ethernet switch designed for small network expansions, edge connectivity, branch offices, and desktop networking deployments. It provides eight RJ45 Gigabit Ethernet ports for connecting computers, servers, printers, access points, and other network devices.
The switch supports 10/100/1000 Mbps auto-negotiation on all ports with Auto-MDI-X, store-and-forward switching, and a 16 Gbps switching capacity. IEEE 802.3az Energy Efficient Ethernet reduces power consumption during low network activity periods.
The compact metal-housing design is suitable for desktop, branch, and edge installations where plug-and-play Gigabit connectivity is required. It is not intended for managed network environments, advanced VLAN requirements, PoE deployments, or high-density enterprise switching applications.
Key Features :
- Eight Gigabit RJ45 ports for high-speed Ethernet links
- 16 Gbps switching capacity for non-blocking traffic
- Auto-MDI-X simplifies device cable connections
- Metal housing supports durable desktop deployment
- IEEE 802.3az reduces energy consumption
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 530347 |
| Product Type | Gigabit Ethernet Switch |
| Switch Type | Unmanaged Switch |
| Ports | 8 x RJ45 Gigabit Ethernet |
| Port Speed | 10/100/1000 Mbps |
| Switching Capacity | 16 Gbps |
| Switching Architecture | Store-and-forward |
| MAC Address Table | 8K entries |
| Buffer Memory | 4 Mbits |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3az, 802.3x |
| Auto-Negotiation | IEEE 802.3 NWay |
| Auto-MDI/MDI-X | Yes |
| Power Input | 5 V DC, 1 A |
| Power Consumption | 2.75 W maximum |
| Housing | Metal |
| Operating Temperature | 0-40°C |
