Detailed Specifications

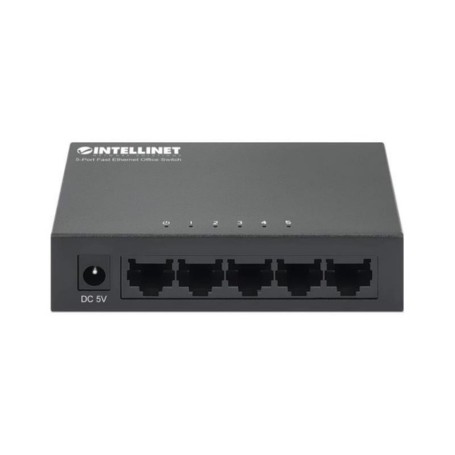

Intellinet 523301 5-Port Fast Ethernet Office Switch
Overview :
Intellinet 523301 is a compact unmanaged Fast Ethernet switch designed for small network expansions, workgroups, branch offices, and edge connectivity deployments. It provides five RJ45 ports for connecting computers, printers, IP devices, and other Ethernet-enabled equipment.
The switch supports 10/100 Mbps auto-sensing Ethernet connections with Auto-MDI/MDI-X functionality, NWAY auto-negotiation, and store-and-forward switching architecture. It is built with a metal housing and includes Green Ethernet technology to reduce power usage based on link status and cable length.
The standalone form factor is suitable for desktop, branch, and small infrastructure deployments. It is not intended for high-density data center environments, Gigabit Ethernet requirements, managed switching, or PoE-powered device deployments.
Key Features :
- Five 10/100 Mbps RJ45 ports for Ethernet expansion
- Auto-MDI/MDI-X simplifies device connections
- Store-and-forward switching improves packet handling
- Metal housing supports durable desktop deployment
- Green Ethernet reduces unnecessary power usage
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 523301 |
| Product Type | Fast Ethernet Unmanaged Switch |
| Switch Type | Unmanaged L2 Switch |
| Ports | 5 x RJ45 Fast Ethernet |
| Port Speed | 10/100 Mbps |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Switching Architecture | Store-and-forward |
| MAC Address Table | 1024 entries |
| Packet Buffer Memory | 48 KB |
| Auto-MDI/MDI-X | Yes |
| Duplex Mode | Full/Half Duplex |
| PoE Support | No |
| Form Factor | Desktop / Standalone |
| Housing Material | Metal |
| Power Consumption | 2.5 W typical |
