Detailed Specifications

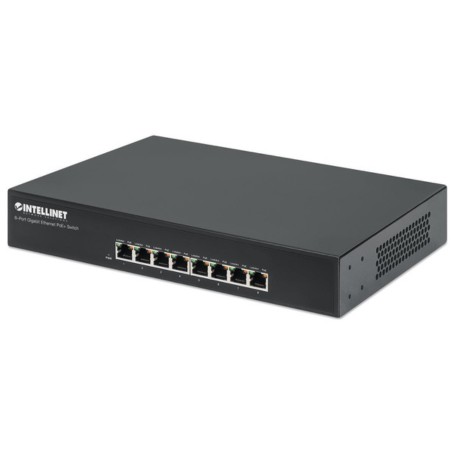

Intellinet 560641 8-Port Gigabit Ethernet PoE+ Switch
Overview :
The Intellinet 560641 is an 8-port Gigabit Ethernet PoE+ switch designed for network deployments requiring both data connectivity and power delivery over Ethernet cabling. It is used for IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compatible devices.
The switch provides eight 10/100/1000 Mbps RJ45 PoE ports with a total PoE power budget of 140 W and up to 30 W output per port. It uses store-and-forward switching architecture with a 16 Gbps backplane capacity and 256 KB buffer memory.
Suitable deployment environments include small data centers, edge racks, branch networks, surveillance installations, and PoE device aggregation points. It supports desktop installation and includes 19-inch rackmount brackets.
Use this switch where unmanaged Gigabit PoE connectivity is required. It is not intended for environments requiring advanced Layer 2/Layer 3 management, VLAN configuration, routing, or enterprise switching features.
Key Features :
- 8 Gigabit PoE+ ports support powered network devices
- 140 W PoE budget enables multiple endpoint deployment
- IEEE 802.3af/at support for compatible equipment
- 16 Gbps switching capacity supports Gigabit traffic
- Rack brackets included for flexible installation
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 560641 |
| Product Type | 8-Port Gigabit Ethernet PoE+ Switch |
| Ports | 8 x RJ45 Gigabit PoE ports |
| Network Speed | 10/100/1000 Mbps |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget | 140 W total |
| Maximum PoE Output | Up to 30 W per port |
| Switching Capacity | 16 Gbps backplane |
| MAC Address Table | 8K entries |
| Buffer Memory | 256 KB |
| Switching Architecture | Store-and-forward |
| Power Input | 100-240 VAC, 50-60 Hz |
| Form Factor | Desktop metal case with 19-inch rack brackets |
| Operating Temperature | 0-40°C |
