Detailed Specifications

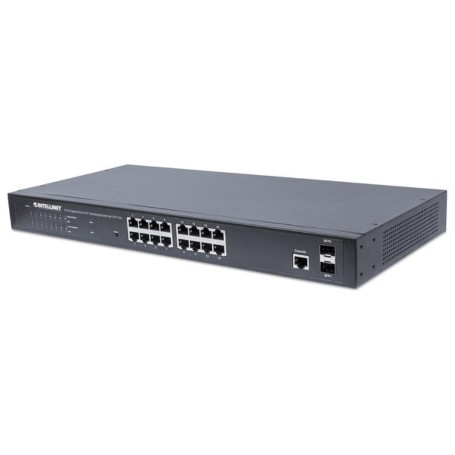

Intellinet 561341 16-Port Gigabit PoE Web-Managed Switch
Overview :
The Intellinet 561341 is a Layer 2+ web-managed Gigabit Ethernet switch designed to deliver both network connectivity and Power over Ethernet (PoE) to IP-based infrastructure. It features sixteen Gigabit RJ45 PoE+ ports and two dedicated SFP uplink ports, enabling centralized connectivity for wireless access points, IP cameras, VoIP phones, and other PoE-enabled devices.
The switch supports IEEE 802.3af/at PoE with a total PoE power budget of 220 W and provides up to 30 W per PoE port. Layer 2+ management capabilities include VLAN, QoS, Link Aggregation, STP/RSTP/MSTP, IGMP Snooping, SNMP, and Powered Device Monitor (PDM) for automatic recovery of unresponsive PoE devices. Gigabit switching performance and dedicated fiber uplinks make it suitable for high-bandwidth enterprise networks.
Designed for standard 19-inch rack installation, the switch is suitable for enterprise networks, branch offices, surveillance deployments, and edge infrastructure where centralized PoE distribution and managed networking are required.
The switch is intended for Gigabit Ethernet environments requiring managed PoE functionality. It is not appropriate for applications requiring 10 Gigabit Ethernet uplinks or Layer 3 routing capabilities.
Key Features :
- Sixteen Gigabit PoE+ ports with 220 W budget
- Two dedicated SFP uplinks for fiber connectivity
- Layer 2+ web management and VLAN support
- Powered Device Monitor restores failed PoE devices
- Standard 1U rackmount enterprise deployment
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 561341 |
| Product Type | Layer 2+ Web-Managed Gigabit PoE+ Switch |
| Ethernet Ports | 16 × 10/100/1000 Mbps RJ45 PoE+ |
| Uplink Ports | 2 × Gigabit SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget | 220 W |
| Maximum PoE Output | 30 W per port |
| Switching Capacity | 36 Gbps |
| MAC Address Table | 8K entries |
| Management | Web GUI, SNMP, VLAN, QoS, IGMP Snooping |
| Form Factor | 1U, 19-inch rack mount |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
