Detailed Specifications

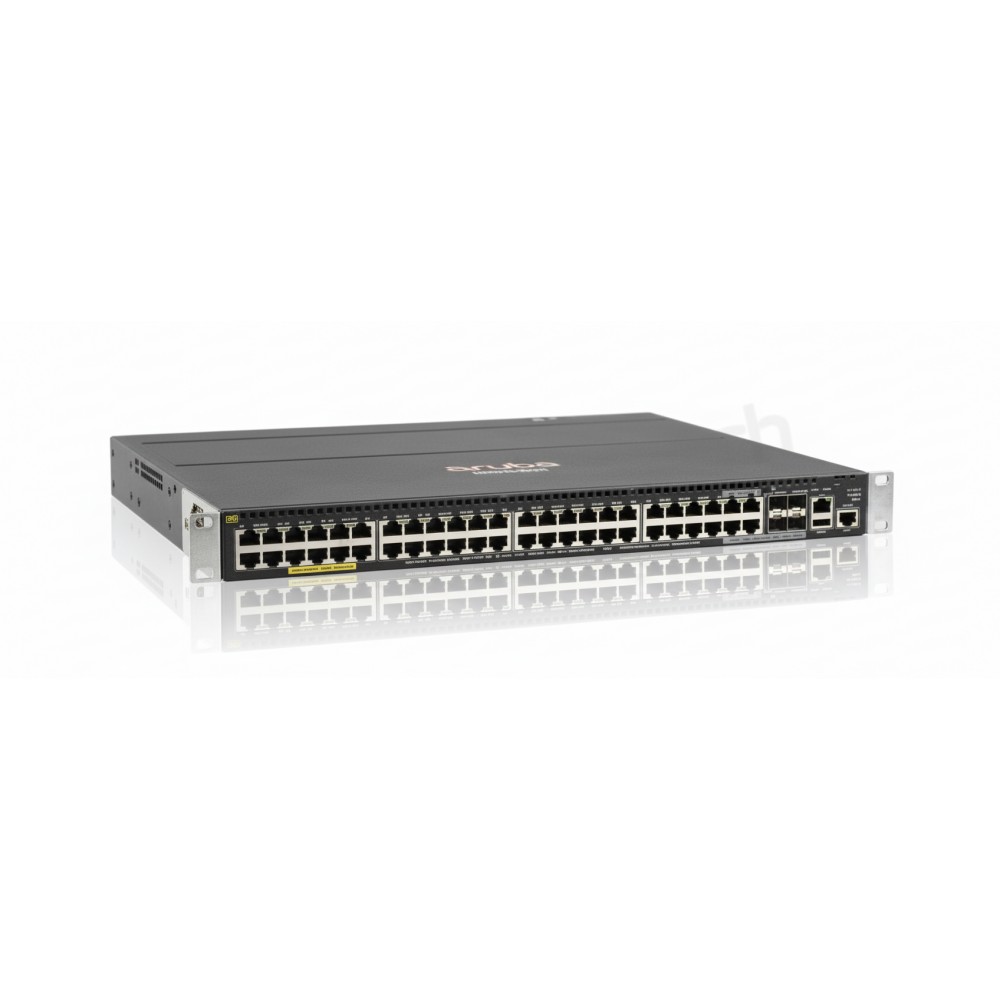

HPE JL322A
Aruba 2930M 48G PoE+ 1-Slot Managed Ethernet Switch - 44× GbE PoE+, 4× Combo SFP Uplinks, 1 Modular Uplink Slot
The JL322A Aruba 2930M 48G PoE+ Switch is a robust, stackable Layer-3 access switch with 48 ports×44 PoE+ plus 4 combo uplinks×designed for enterprise and SMB environments. It delivers high-speed connectivity, power delivery, and security, seamlessly integrating wired and wireless networks through Aruba's unified management ecosystem.
Features
Powered by Aruba's ProVision ASIC, this model offers a full-duplex 176 Gbps switching fabric and wire-speed forwarding (112 Mpps)
Advanced Options
The hot-swappable uplink slot supports optional 10 GbE or 40 GbE modules, enabling future scalability. Zero-touch provisioning and integrated policy enforcement make deployment simple×even across multiple sites.
Product Key Features
48-port Gigabit PoE+: 44× 10/100/1000 RJ-45 + 4 combo RJ-45/SFP × up to 1440 W PoE+ budget
Layer-3 Routing & Stacking: Static, RIP, OSPF, PIM, IPv6, VRRP×with hot-swappable modular uplink slot for 10/40 GbE
Smart Wired-Wireless Integration: Aruba ClearPass, AirWave, and Central unify network policy & zero-touch AP adoption
High Performance: ProVision ASIC provides 176 Gbps switching capacity and up to 112 Mpps wire speed; <3.1 µs latency for GbE
Scalable Design: Stack up to 10 switches via 100 Gbps backplane; dual PSU slots for redundancy
Advanced QoS & Security: ACLs, 802.1X, MACsec, DHCP snooping, sFlow, LLDP-MED, plus SDN-ready with OpenFlow/REST API support
Reliability & Performance
Offering dual modular power supplies, the JL322A ensures uptime and PoE redundancy. It delivers consistent, low latency (<3.1 µs at GbE, <3.4 µs at 10 GbE), with enterprise-grade QoS, security, and SDN features. Aruba's unified management tools streamline lifecycle operations for campus edge and branch deployments.
Key Features (Bullet List)
44 × 10/100/1000 PoE+ RJ-45 + 4 × combo RJ-45/SFP
1 hot-swappable uplink slot (10/40 GbE)
Layer 3 routing: static, RIP, OSPF, PIM, IPv6, VRRP
Stacking up to 10 switches, 100 Gbps backplane
Dual PSU slots (power supplies sold separately)
1440 W PoE+ budget; 60 W class-6 support on select ports
Aruba ClearPass, AirWave, Central, SDN-enabled (OpenFlow/REST)
QoS, ACLs, MACsec, 802.1X, DHCP snooping, LLDP-MED, sFlow
| Specification | Details |
|---|
| Model Number | JL322A |
| Type | 1U Layer 3 Stackable Managed Switch with PoE+ |
| RJ-45 Ports | 44 × 10/100/1000 PoE+ |
| Combo Uplink Ports | 4 × RJ-45/SFP (GbE) |
| Uplink Slot | 1 × Modular (10 GbE SFP+ / 40 GbE QSFP+) |
| Switching Capacity | 176 Gbps |
| Forwarding Performance | 112 Mpps |
| Latency | <3.1 µs (1 GbE), <3.4 µs (10 GbE) |
| Stacking | Up to 10 units, 100 Gbps backplane |
| PoE Budget | Up to 1440 W; PoE+ (30 W/port), some port Class 6 (60 W) |
| Routing & QoS | Static, RIP v1/2/ng, OSPF v2/v3, PIM, VRRP; ACLs, QoS, sFlow |
| Security Features | 802.1X, MACsec, DHCP Snooping, LLDP-MED, ACLs |
| SDN Interfaces | OpenFlow 1.3, REST API |
| Management | Aruba Central, ClearPass, AirWave, CLI, SNMP, Web UI |
| Power Supplies | Dual modular (JL086A/JL087A), sold separately |
| Fan & PSU Redundancy | Yes |
| Physical (WxDxH) | 17.42″ × 12.77″ × 1.73″ (44.3 × 32.4 × 4.4 cm) |
| Weight | ~10.25 lb (4.65 kg) |
| Operating Temp / Humidity | 0-55 °C / 15-95% non-condensing |
