Detailed Specifications

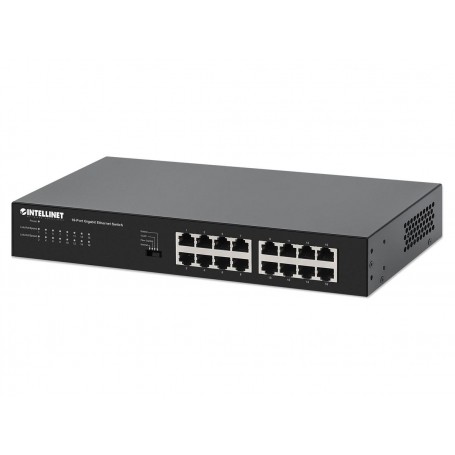

INTELLINET 561815 - 16-Port Gigabit Ethernet Switch
Overview :
The INTELLINET 561815 16-Port Gigabit Ethernet Switch expands network capacity with high-performance throughput and energy-efficient operations.
Featuring 16 auto-sensing 10/100/1000 Mbps RJ45 ports and a 32 Gbps backplane capacity, it offers smooth data transmission for network endpoints, servers, and storage units. Built-in DIP switches enable manual VLAN mode to isolate ports 1-14, an Extend mode for transmissions up to 250 m at 10 Mbps, and flow control customization. Housed in a durable fanless metal enclosure, it operates silently and includes 19" brackets for optional rack mounting.
Key Features :
16 auto-sensing 10/100/1000 Mbps RJ45 ports with Auto-MDIX support.
32 Gbps switching capacity delivers high bandwidth performance.
Manual VLAN mode isolates ports 1-14 while allowing communication with uplink ports 15 and 16.
Manual Extend mode increases cable distance up to 250 m (820 ft.) at 10 Mbps.
IEEE 802.3az Green Ethernet technology reduces power output based on link status and cable length.
Durable, fanless metal housing for silent operation; includes 19" rackmount brackets.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 561815 |
| Alphanumeric Part Number | IES-16GDB |
| Product Type | 16-Port Gigabit Ethernet Switch |
| Port Count | 16 x 10/100/1000 Mbps RJ45 Ports |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8,192 entries |
| Buffer Memory | 512 KB |
| Special Modes | Manual VLAN Mode, Manual Extend Mode (250m @ 10Mbps) |
| Form Factor | Desktop / 19" Rackmountable (Brackets Included) |
| Enclosure / Noise Level | Metal Housing / Fanless Silent Operation |
| Power Consumption | Max 10.1 W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
