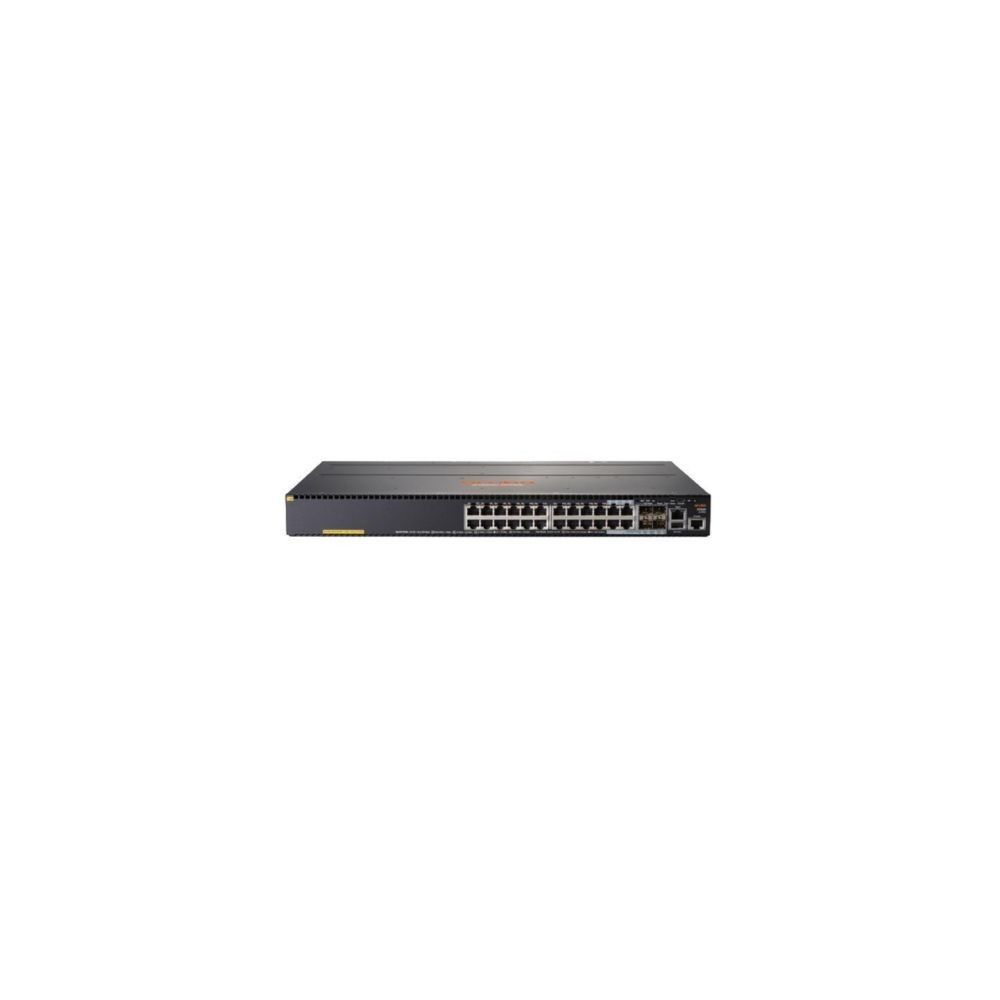

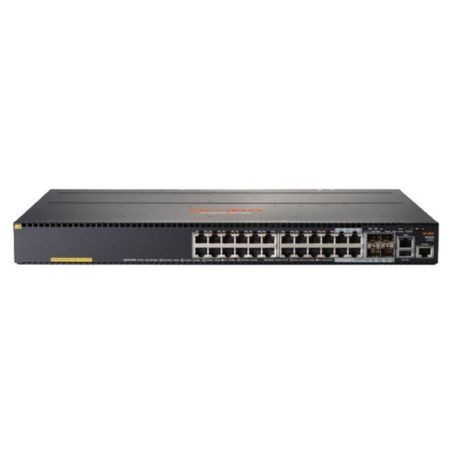

HPE Aruba JL319A 2930M 24G 1-Slot 24 Ports Managed Ethernet Switch

New

In Stock

HPE Aruba JL319A is a 24-port managed Layer 3...

×




$1,566.00

  • New
  • Refurbished

Detailed Specifications

HPE JL319A

Aruba JL319A 2930M 24G 1‑Slot Managed Ethernet Switch – 24-Port Gigabit, Stackable, Layer 3

The HPE Aruba JL319A 2930M 24G 1‑Slot Switch offers a powerful, stackable Layer 3 switching solution with comprehensive management and security features. Designed for enterprise edge deployments—campuses, SMB branches, and digital workplaces—it seamlessly unifies wired and wireless environments, reducing complexity and enhancing performance.

Features

Built around Aruba’s ProVision ASIC, the 2930M delivers low-latency switching (95.2 Mpps, 128 Gbps fabric) with full support for IPv4/IPv6, VLANs, multicast,

Advanced Options

and SDN/OpenFlow. The modular uplink slot enables flexible network growth with 10 GbE or 40 GbE connectivity. Stacking supports up to ten units with high-speed, ring or chain topologies—simplifying topology management with single IP interface and redundancy.

Product Key Features

    •  24× 1 GbE Ports + Combo Uplinks: 20 RJ-45 + 4 combo RJ-45/SFP ports for flexible connectivity b

    •  Layer 3 Routing & Stacking: Static, RIP, Access OSPF, VLAN routing, VRRP, IPv6 support—stack up to 10 switches (100 Gbps backplane)

    •  Advanced Management: Features Aruba ClearPass, AirWave, and Aruba Central for unified wired–wireless policy enforcement

    •  Modular Uplink Flexibility: Supports optional 10GbE/40GbE modules, plus Smart Rate 2.5–5 GbE ports for APs

    •  PoE+ & Power Redundancy: Models support up to 1,440 W PoE+, dual modular power supplies for high availability

    •  Robust QoS & Security: ACLs, MACsec, 802.1X, LLDP-MED, DHCP snooping, firewall features, sFlow analytics

Reliability & Performance

This switch offers enterprise-grade resiliency with support for dual hot-swappable power supplies, high PoE budgets, and wireless adoption features like roles-based access and tunnel node support that auto-configure ports based on attached APs. Energy-efficient design (80 PLUS Silver PSU, IEEE 802.3az), extensive compliance certifications, and cloud-managed provisioning all contribute to reliable operation and simplified lifecycle management.

Key Features (Bullet List)

  • 20 × 10/100/1000 RJ‑45 + 4 × combo RJ‑45/SFP

  • Single modular uplink slot: 10 GbE/40 GbE capable

  • Layer 3 routing: static, RIP v1/v2, RIPng, OSPFv2/v3, VRRP

  • Supports IPv4/IPv6, VLANs, multicast snooping, ACLs

  • Aruba Central, ClearPass, AirWave and SDN-ready (OpenFlow 1.3)

  • PoE+ capable, modular power redundancy

  • Stacking up to 10 switches, 100 Gbps backplane

  • Advanced security: 802.1X, MACsec, DHCP Snooping, LLDP-MED

  • Robust QoS, sFlow, jumbo frames up to 9,220 bytes

  • Energy-efficient with 80 PLUS Silver PSU

SpecDetails
Model Number JL319A
Switch Type Layer 3 Managed, Stackable, 1U Rack
Ports 20 × GbE RJ‑45 + 4 × combo RJ‑45/SFP
Uplink Slot 1 modular slot (10 GbE/40 GbE options)
Switching Capacity/Throughput 128 Gbps / 95.2 Mpps, latency ~3.1 μs
VLANs 4K VLANs, 2K simultaneous
L3 Routing Static, RIP v1/v2/ng, OSPFv2/v3, VRRP, ECMP
Stacking Up to 10 units, 100 Gbps stack bandwidth
QoS & Security Features ACLs, 802.1p, sFlow, MACsec, 802.1X, LLDP-MED
PoE Support Up to 1,440 W PoE+ (with modules)
Power Supply Internal + optional modular dual supplies
Management CLI, HTTP/HTTPS, SNMP v1/2/3, Aruba Central, AirWave
Dimensions (W×D×H) 17.42″ × 12.77″ × 1.73″ (44.2×32.4×4.4 cm)
Weight ~4.5 kg (9.9 lb)
Operating Temp/Humidity 0–50 °C / 15–95% non-condensing
Certifications FCC, CISPR, IEC, UL, CSA etc. compliant
