Detailed Specifications

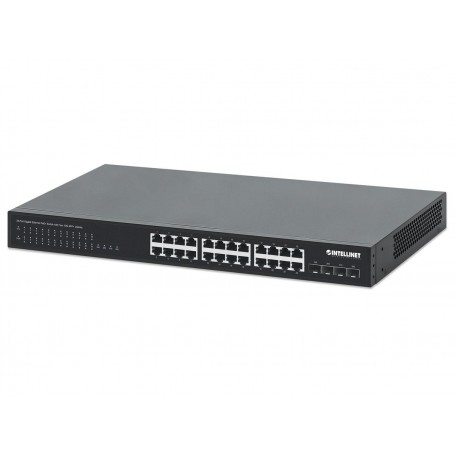

INTELLINET 561761 - 24-Port Gigabit Ethernet PoE+ Switch with 4 10G SFP+ Uplinks
Overview :
The INTELLINET 561761 24-Port Gigabit Ethernet PoE+ Switch with 4 10G SFP+ Uplinks provides high-power, high-throughput network connectivity and high-speed backbone expansion for demanding IP surveillance, VoIP, and enterprise wireless infrastructure setups.Engineered for network administrators, IT integration teams, and security installers, it delivers plug-and-play simplicity paired with 10 Gigabit uplink performance.
Equipped with 24 10/100/1000 Mbps RJ45 ports supporting IEEE 802.3at/af PoE+ standards, the switch delivers up to 30 watts per port with a substantial 370-watt total power budget.Four dedicated 10G SFP+ slots enable ultra-fast fiber uplinks to core switches, servers, or NVRs without sacrificing copper RJ45 port density.Built-in Green Ethernet technology automatically optimizes power consumption based on cable length and active connection status.
The unit features a standard 19-inch 1U rackmount steel enclosure with dual high-volume cooling fans for reliable thermal management.It is ideal for powering IP cameras, Wi-Fi access points, and VoIP phones in enterprise facilities, campus environments, and data centers.Do not exceed the maximum 370 W total PoE power budget or deploy in unconditioned outdoor locations without protective housing.
Key Features :
24 Gigabit RJ45 PoE+ ports deliver data and electrical power over standard Cat5e/Cat6 cabling.
Robust 370 W PoE power budget supplies up to 30 W per port for high-power devices.
4 SFP+ slots support 10 Gbps fiber uplinks for ultra-high bandwidth backbones.
128 Gbps switching capacity ensures smooth data flow under heavy network loads.
Heavy-duty 1U metal housing includes 19" rackmount brackets for server cabinet mounting.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 561761 |
| Alphanumeric Part Number | IPS-28G04-10G-370W |
| Product Type | 24-Port Gigabit Ethernet PoE+ Switch with 4 10G SFP+ Uplinks |
| Network Architecture | Unmanaged Layer 2 Ethernet |
| Total Port Count | 28 Ports (24x RJ45 + 4x SFP+) |
| RJ45 Port Speed | 10/100/1000 Mbps Auto-Sensing |
| SFP Uplink Slots | 4x 10 Gbps SFP+ Slots |
| Switch Fabric / Backplane | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| PoE Protocol Support | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| Total PoE Power Budget | 370 W |
| Max Power Output Per Port | Up to 30 W |
| MAC Address Table | 16k Entries |
| Buffer Memory | 12 Mbits |
| Form Factor | 1U 19-inch Rackmount |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Standards Compliance | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3af/at, FCC Class A, CE, RoHS, NDAA |
