Detailed Specifications

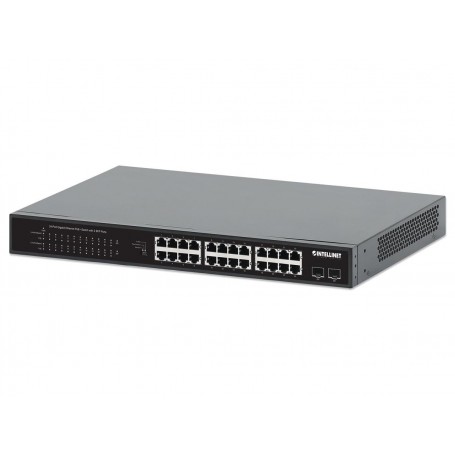

INTELLINET 561891 - 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
Overview :
The INTELLINET 561891 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports provides high-power, high-throughput network connectivity and power distribution for demanding IP surveillance, VoIP, and wireless infrastructure setups. Engineered for network administrators, IT integration teams, and security installers, it delivers unmanaged plug-and-play simplicity combined with flexible port management controls.
Equipped with 24 10/100/1000 Mbps RJ45 ports supporting IEEE 802.3at/af PoE+ standards, the switch delivers up to 30 watts per port with a substantial 370-watt total power budget. Two dedicated 1G SFP slots enable long-distance fiber uplinks without sacrificing copper RJ45 port density. Built-in slide switches allow manual toggle between Normal mode, Flow Control Off, and Port VLAN mode to isolate access ports 1 through 24 for enhanced security and broadcast storm prevention. Integrated Green Ethernet technology automatically optimizes power consumption based on cable length and port activity.
The unit features a standard 19-inch 1U rackmount steel enclosure with dual cooling fans for consistent thermal management. It is ideal for powering IP cameras, access points, and IP phones in enterprise buildings, educational facilities, and security centers. Do not exceed the maximum 370 W total PoE power budget or deploy in unconditioned outdoor locations without protective housing.
Key Features :
24 Gigabit RJ45 PoE+ ports deliver data and electrical power over existing Cat5e/Cat6 cabling.
Generous 370 W PoE power budget provides up to 30 W per port for high-power devices.
2 SFP expansion slots offer fiber uplinks for long-distance network connections.
Slide-switch toggle enables Port Isolation (VLAN) to enhance network security and efficiency.
Heavy-duty 1U metal housing with rackmount brackets included for standard 19" server racks.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 561891 |
| Alphanumeric Part Number | IPS-24G02-370W |
| Product Type | 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports |
| Network Architecture | Unmanaged Layer 2 Ethernet |
| Total Port Count | 26 Ports (24x RJ45 + 2x SFP) |
| RJ45 Port Speed | 10/100/1000 Mbps Auto-Sensing |
| SFP Uplink Slots | 2x 1 Gbps SFP Slots |
| Switch Fabric / Backplane | 52 Gbps |
| Forwarding Rate | 36.688 Mpps |
| PoE Protocol Support | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| Total PoE Power Budget | 370 W |
| Max Power Output Per Port | Up to 30 W |
| MAC Address Table | 8k Entries |
| Buffer Memory | 512 KB |
| DIP Switch Modes | Normal / Flow Control Off / Port Isolation VLAN |
| Form Factor | 1U 19-inch Rackmount |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Standards Compliance | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3af/at, FCC Class A, CE, RoHS, NDAA |
