Detailed Specifications

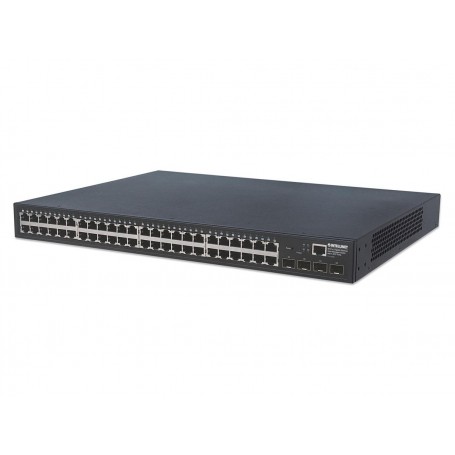

Intellinet 561334 - 48-Port Web-Managed Gigabit Switch
Overview:
The Intellinet 561334 is a 48-port web-managed Gigabit Ethernet switch with 4 dedicated SFP uplink ports, designed for intelligent edge connectivity in small-to-medium enterprise and branch office networks . Network administrators use this Layer 2 switch to gain remote control and monitoring capabilities over their network infrastructure through SNMP, RMON, and web-based management .
This switch solves the challenge of managing network traffic without investing in complex enterprise-grade chassis switches. Technical capability includes a 104 Gbps switching fabric, 8K MAC address table, 1.5 MB packet buffer memory, and support for VLANs, QoS, ACLs, and Link Aggregation . The four SFP slots are true dedicated uplinks (not combo ports), enabling fiber connectivity for greater distances while maintaining full Gigabit performance on all 48 RJ45 ports .
Deployment is in a 1U rack-mountable metal chassis with fanless design for silent operation . The switch supports IPv4/IPv6 dual protocol, IEEE 802.1x port-based security, and broadcast storm control . It is fully NDAA-compliant and carries a 3-year warranty . The switch does not support Power over Ethernet (PoE) and is not suitable for deployments requiring powered device connectivity or outdoor installation .
Key Features:
48 auto-sensing Gigabit RJ45 ports plus 4 dedicated SFP slots
Web-based GUI, SNMP, RMON, and Telnet management
Supports VLAN, QoS, ACL, 802.1X, and Link Aggregation
104 Gbps switching capacity, 8K MAC address table
Fanless design with IEEE 802.3az Energy Efficient Ethernet
Specifications:
| Specification | Value |
|---|
| Brand | Intellinet Network Solutions |
| Part Number | 561334 |
| Product Type | Web-Managed Gigabit Ethernet Switch |
| RJ45 Ports | 48 x 10/100/1000 Mbps (auto-sensing, Auto-MDIX) |
| SFP Slots | 4 x Gigabit SFP (dedicated uplinks) |
| Switching Capacity | 104 Gbps |
| MAC Address Table | 8,000 entries |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 9 KB |
| Forwarding Rate | 1,488,000 pps (1000 Mbps) |
| VLAN Support | Tag-based and port-based |
| Management | Web GUI, SNMP v1/v2/v3, RMON, Telnet, SSH |
| Security | IEEE 802.1x, TACACS+, SSHv2 |
| Power Supply | Internal AC 100-240V, 50-60 Hz |
| Max Power Consumption | 36 W |
| Form Factor | 1U Rack-mountable |
| Housing | Metal |
| Cooling | Fanless |
| Operating Temp. | 0°C to 40°C |
| Humidity | 10-90% RH, non-condensing |
| Certifications | FCC Class A, CE, UKCA, NDAA-compliant |
