Detailed Specifications

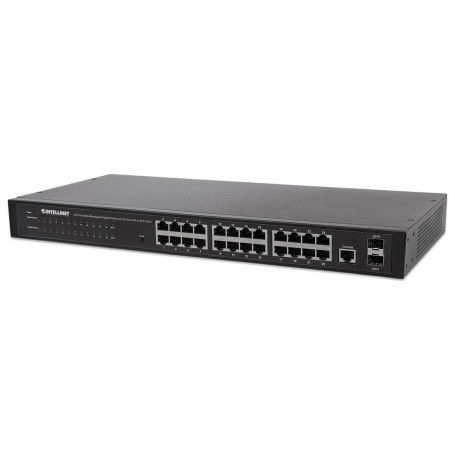

Intellinet 560917 - Web-Managed Gigabit Switch
Overview:
The Intellinet 560917 is a 24-port web-managed Gigabit Ethernet switch with 2 additional SFP uplink ports, designed for intelligent edge connectivity in small-to-medium enterprise and branch office networks . Network administrators use this Layer 2 switch to gain remote control and monitoring capabilities over their network infrastructure through SNMP and web-based management.
This switch solves the challenge of managing network traffic without investing in complex enterprise-grade chassis switches. Technical capability includes a 52 Gbps switching fabric, 8K MAC address table, 512 KB buffer memory, and support for VLANs, QoS, ACLs, and Link Aggregation . The two SFP ports are true dedicated uplinks (not combo ports), enabling fiber connectivity for greater distances while maintaining full Gigabit performance on all 24 RJ45 ports .
Deployment is in a 1U rack-mountable metal chassis with fanless design for silent operation . The switch is fully NDAA-compliant and carries a 3-year warranty . It is not suitable for PoE applications (no PoE support), large core networks requiring 10G uplinks, or outdoor deployment without environmental protection .
Key Features:
24 auto-sensing Gigabit RJ45 ports plus 2 dedicated SFP uplinks
Web-based GUI, SNMP, RMON, and Telnet management
Supports VLAN, QoS, ACL, 802.1X, and Link Aggregation
52 Gbps switching capacity, 8K MAC address table
Fanless design, IEEE 802.3az Energy Efficient Ethernet
Specifications:
| Specification | Value |
|---|
| Brand | Intellinet Network Solutions |
| Part Number | 560917 |
| Product Type | Web-Managed Gigabit Ethernet Switch |
| RJ45 Ports | 24 x 10/100/1000 Mbps (auto-sensing, Auto-MDIX) |
| SFP Slots | 2 x Gigabit SFP (dedicated, not combo) |
| Switching Capacity | 52 Gbps |
| MAC Address Table | 8,000 entries |
| Packet Buffer | 512 KB |
| Jumbo Frames | Up to 9 KB |
| Forwarding Rate | 1.488 Mpps (1000 Mbps) |
| VLAN Support | Tag-based and port-based |
| Management | Web GUI, SNMP v1/v2, RMON, Telnet |
| Power Supply | Internal AC 100-240V, 50-60 Hz |
| Max Power Consumption | 20 W |
| Form Factor | 1U Rack-mountable |
| Housing | Metal |
| Cooling | Fanless |
| Operating Temp. | 0°C to 40°C |
| Humidity | 10-90% RH, non-condensing |
| Certifications | FCC Class A, CE, NDAA-compliant |
