Detailed Specifications

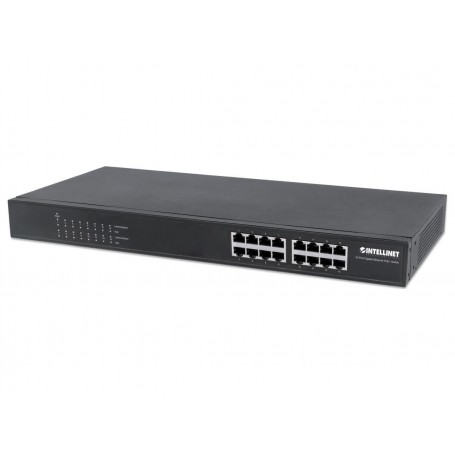

Intellinet 560993 - 16-Port PoE+ Switch
Overview:
The Intellinet 560993 is a 16-port Gigabit Ethernet unmanaged switch with Power over Ethernet Plus (PoE+) capabilities, designed to deliver both data and electrical power to connected PoE-compatible devices over a single Ethernet cable . It is used by network integrators, security system installers, and IT technicians to simplify the deployment of IP cameras, VoIP phones, and wireless access points in locations without direct AC power access.
This switch solves the challenge of powering network devices in hard-to-reach locations by eliminating the need for separate power cabling and adapters. Technical capability includes up to 30W per PoE port, a total PoE budget of 220W, and a 32 Gbps backplane for switching capacity . The unit supports all 16 ports with IEEE 802.3at/af PoE output, providing flexibility for mixed deployments of powered and non-powered devices .
Deployment is in a 19-inch rack-mountable form factor with two high-volume cooling fans for thermal management . The switch is unmanaged and operates in plug-and-play mode, requiring no configuration. It is not suitable for environments requiring managed switching features (VLANs, QoS, SNMP) or outdoor deployment without additional environmental protection.
Key Features:
16x Gigabit ports with IEEE 802.3at/af PoE+ support
220W total PoE budget, 30W per port max
Unmanaged plug-and-play operation with Auto-MDIX
32 Gbps switching capacity, 8K MAC table
19-inch rackmount with 3-year warranty
Specifications:
| Specification | Value |
|---|
| Brand | Intellinet Network Solutions |
| Part Number | 560993 |
| Product Type | Unmanaged Gigabit PoE+ Switch |
| Total Ports | 16 x RJ45 10/100/1000 Mbps |
| PoE Ports | 16 (IEEE 802.3at/af) |
| Max Power per Port | 30 W |
| Total PoE Budget | 220 W |
| Switching Capacity | 32 Gbps |
| MAC Address Table | 8192 entries |
| Packet Buffer | 256 KB |
| Packet Forwarding Rate | 1,488,000 pps (1000 Mbps) |
| Architecture | Store-and-forward |
| Cooling | 2 x high-volume fans |
| Input Power | 100-240V AC, 50/60 Hz |
| Max Power Consumption | 260 W |
| Certifications | FCC Class A, CE, RoHS, NDAA |
| Warranty | 3-Year |
| Product Status | Active |
