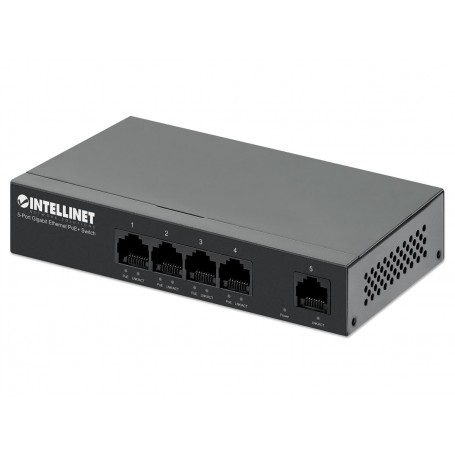

Intellinet 561792 - 5-Port Gigabit PoE+ Switch
Overview :
Five-port Gigabit Ethernet switch with Power over Ethernet Plus (PoE+) capability, delivering both data and power to PoE-enabled devices. Deployed by network engineers, security system integrators, and IT procurement teams for powering IP cameras, wireless access points, VoIP phones, and other PoE endpoints in small to medium-sized network installations.
Provides PoE power budget of 40 watts total, with four PoE output ports supporting IEEE 802.3at PoE+ and backward compatibility with IEEE 802.3af PoE devices. The fifth port serves as a standard Gigabit Ethernet uplink to the upstream network, ensuring full bandwidth connectivity to the core infrastructure.
Auto-negotiation and auto-MDI/MDIX on all ports eliminate the need for crossover cables and simplify deployment. Compact desktop form factor with optional wall-mount capability provides flexible installation options for various environments.
Plug-and-play design requires no configuration, making it suitable for desktop deployment, small office networks, retail environments, surveillance installations, and branch office connectivity. Compatible with all IEEE 802.3af/at compliant powered devices including IP cameras, WAPs, and VoIP handsets.
Not suitable for high-power PoE++ (802.3bt) devices requiring up to 60W or 90W per port. Total power budget of 40 watts limits simultaneous high-power device connections; power distribution must be managed based on individual device requirements. Not designed for managed network environments requiring VLANs, QoS, or advanced switching features.
Key Features :
40W PoE budget supports up to 4 PoE devices
Four PoE+ ports for IEEE 802.3at compliance
Gigabit ports for full network throughput
Auto-MDI/MDIX on all five ports
Plug-and-play deployment with wall-mount option
