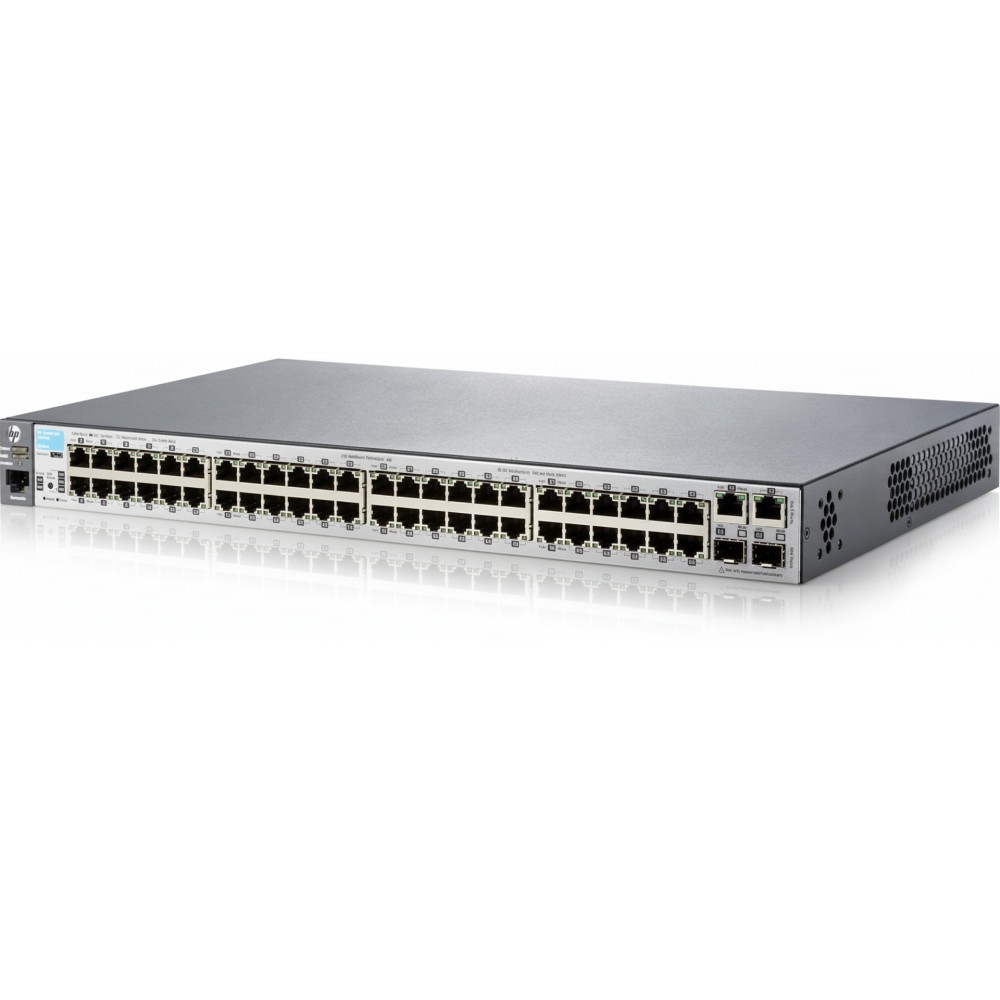

HPE J9781A Aruba 2530 managed Ethernet switch 48 ports

New

HPE J9781A Aruba 2530-48 - switch - 48 ports - managed -...

×




  • New

Detailed Specifications

HPE J9781A

Aruba 2530-48G – 48-Port Gigabit Layer 2 Managed Ethernet Switch

The HPE Aruba J9781A 2530-48G is a reliable Layer 2 managed Gigabit switch offering 48 auto-sensing Ethernet ports and versatile uplink options. Ideal for enterprise edge, mid-sized businesses, and growing networks, it delivers robust performance, silent operation, and advanced management features in a cost-effective solution.

Features

Part of Aruba’s 2530 Switch Series, this model is optimized for wired client connectivity in secure business environments. With four uplink options (2 SFP, 2 combo ports) and support for static routing,

Advanced Options

QoS, and VLANs, the switch allows flexible network design. Its fanless chassis is perfect for open-office installations, classrooms, and retail spaces where noise is a concern.

Product Key Features

    • 48 x Gigabit Ethernet Ports for high-speed wired connectivity

    • 4 Dual-Purpose Uplink Ports (2 SFP + 2 Combo RJ-45/SFP)

    • Layer 2 Managed with full CLI, Web GUI & SNMP support

    • Enterprise Security with 802.1X, RADIUS, and ACLs

    • Fanless Operation for silent deployment in quiet spaces

    • Aruba Central Ready with REST API and cloud-based monitoring

Reliability & Performance

Designed for energy efficiency, the J9781A complies with IEEE 802.3az standards and includes advanced features like port security, traffic prioritization, and loop protection. Whether deployed at the access layer or in small aggregation roles, it ensures consistent, secure data delivery with minimal downtime.

Key Features (Bullet List)

  • 48 x 10/100/1000BASE-T auto-sensing Gigabit ports

  • 4 x uplinks (2 SFP + 2 combo RJ-45/SFP)

  • Layer 2 features: VLANs, QoS, Static Routing

  • Fanless design for silent operation

  • Aruba Central cloud management compatible

  • Comprehensive CLI, Web GUI, and SNMP support

  • Energy Efficient Ethernet (EEE – 802.3az)

  • Robust security: ACLs, RADIUS, 802.1X authentication

SpecificationDetails
Model Number J9781A
Product Type Layer 2 Managed Ethernet Switch
Total Ports 48 x 10/100/1000BASE-T
Uplink Ports 2 x SFP + 2 x combo (RJ-45/SFP)
Switching Capacity 104 Gbps
Forwarding Rate 77.4 Mpps
Network Management Aruba Central, CLI, Web GUI, SNMP
Operating System ArubaOS-Switch
VLAN Support Yes (IEEE 802.1Q)
Jumbo Frame Support Yes (up to 9,220 bytes)
Fanless Yes – Silent Operation
Dimensions (WxDxH) 17.42 x 10.36 x 1.73 in (44.2 x 26.3 x 4.4 cm)
Weight 8.82 lb (4 kg)
Power Supply Internal, fixed
Operating Temperature 32°F to 113°F (0°C to 45°C)
Mounting Options 1U Rack-mountable
