Detailed Specifications

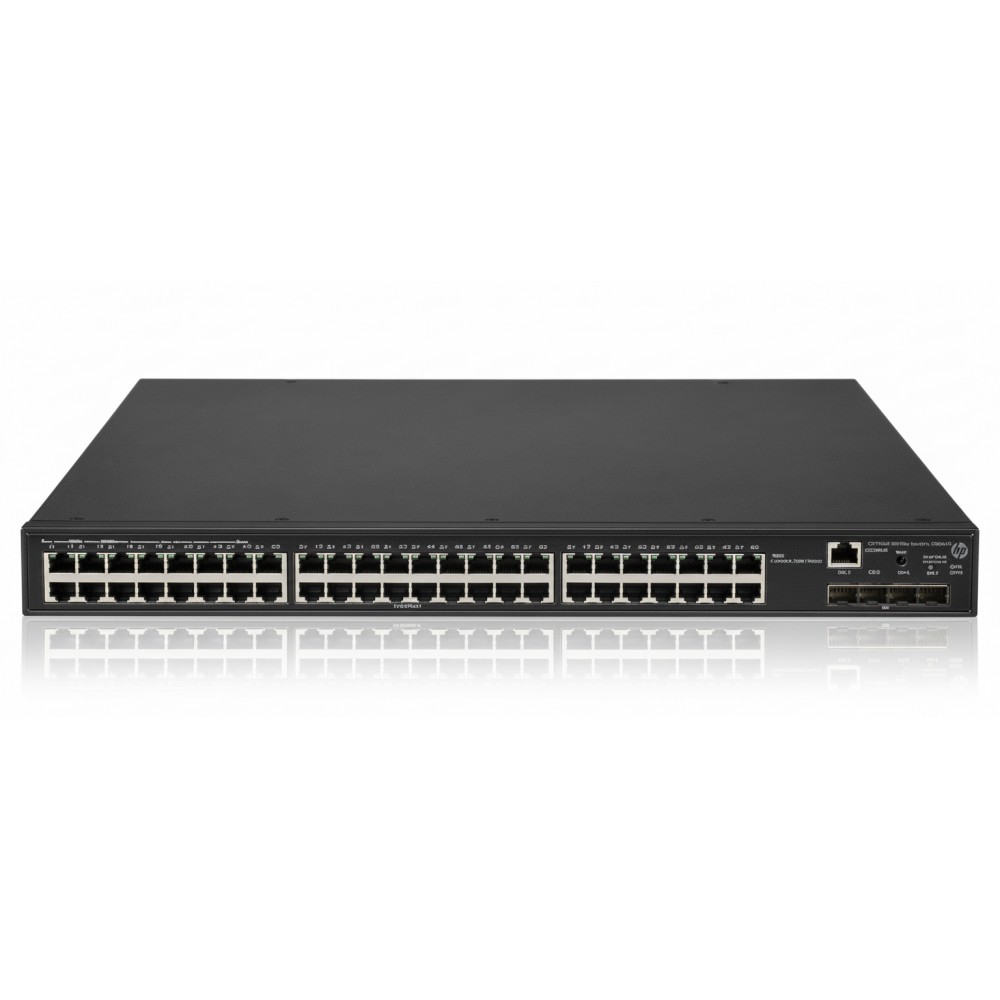

HPE JG937A FlexNetwork 5130-48G-PoE+-4SFP+ EI Switch
Overview
The HPE JG937A is a fully-managed, enterprise-class access-layer switch designed for dense deployments in wiring closets, network access racks or edge aggregation zones. It offers 48 auto-sensing RJ-45 ports at 10/100/1000 Mbps with full Power over Ethernet + (PoE+) support and four fixed SFP+ uplink ports capable of 1 Gb or 10 Gb connections, enabling high-speed aggregation or stacking. The platform supports advanced services including static IPv4/IPv6 routing, RIP routing, IRF-based stacking up to nine devices and full management via CLI, web GUI and SNMP, making it suited for infrastructure engineers requiring scalability, resilience and convergence of wired-and-wireless access domains. With a 1U form-factor, ~17.3 in width, high MTBF and multi-watt PoE budget, it fits enterprise edge racks where space, power and future-ready uplinks matter.
Key Features
48 × 10/100/1000 Mbps RJ-45 ports with PoE+ support.
Four fixed SFP+ ports supporting 1 Gb/10 Gb uplinks or stacking links.
Advanced Layer 2/Layer 3 features including static IPv4/IPv6 routing and IRF stacking.
Up to 370 W PoE+ budget and hot-swappable fans for high-density edge deployment.
Compact 1U rack design (~17.3″ width), high MTBF (~48 years) and 1.5 MB packet buffer for enterprise resilience.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JG937A |
| Product Type | FlexNetwork 5130 48G-PoE+-4SFP+ EI Switch |
| RJ-45 Ports | 48 × 10/100/1000 Mbps autosensing |
| SFP+ Uplink Ports | 4 × 1/10 Gbps SFP+ |
| Memory Installed | 1 GB SDRAM, 512 MB flash |
| Packet Buffer Size | 1.5 MB |
| PoE+ Budget | 370 W |
| Maximum Power Rating | 490 W |
| Dimensions (H×W×D) | 1.72 in × 17.32 in × 14.17 in |
| Weight | ~17.64 lbs |
| Operating Temperature | 0 °C to 45 °C |
| MTBF | ~48.3 years |
| Switching Capacity | × (model typical supports ~176 Gbps class) |
| Packet Forwarding Rate | × (64-byte packet rate ~130 Mpps) |
