Detailed Specifications

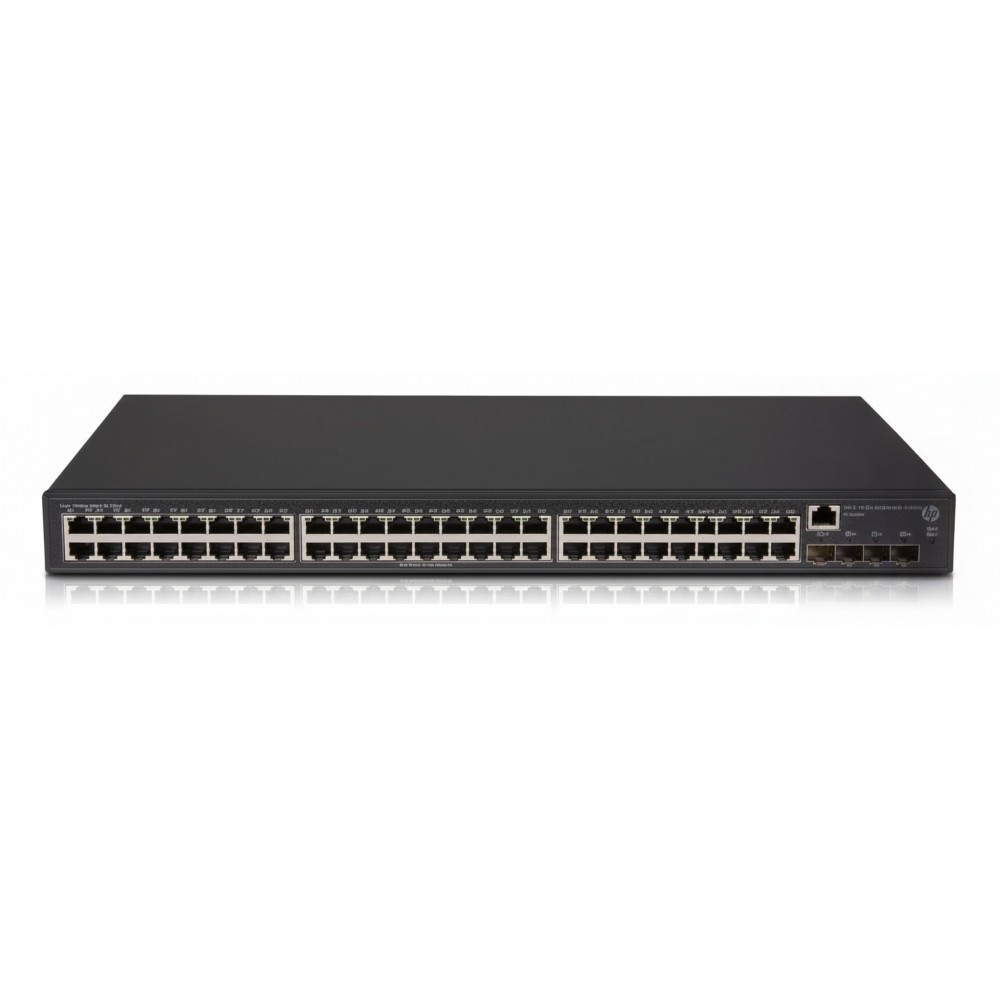

HPE JH326A FlexNetwork 5130 48G PoE+ 4SFP+ HI Switch
Overview
The HPE JH326A is a 1U rack-mount managed switch designed for enterprise access-layer deployments where high port density, inline power (PoE+), and high-speed uplinks are required. It offers 48 autosensing RJ-45 10/100/1000 Mbps PoE+ ports plus four 10 Gbps SFP+ uplink ports and includes one interface expansion slot for additional uplink/fabric options. With switching capacity of 256 Gbps and forwarding rate up to 190.5 Mpps, it can support high traffic loads from wired and wireless aggregation in campus or branch environments. The unit supports advanced security and management features (including MACsec on ports 1-8) and is suitable for wiring-closet or access-rack installation in business networks.
Key Features
48 × autosensing 10/100/1000 Mbps RJ-45 PoE+ ports (IEEE 802.3at)
Four fixed 10 Gbps SFP+ uplink ports and one expansion slot for module upgrade
Switching capacity up to 256 Gbps, forwarding rate approximately 190.5 Mpps
Ports 1-8 support MACsec encryption for enhanced security at the edge
1U rack-mount form with dual power-supply slots for redundant power
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JH326A |
| Product Type | Managed Switch - FlexNetwork 5130 48G PoE+ 4SFP+ HI |
| RJ-45 PoE+ Ports | 48 × 10/100/1000 Mbps (IEEE 802.3at) |
| Fixed Uplink Ports | 4 × 10 Gbps SFP+ |
| Expansion Slot | 1 × interface module slot (supports additional 1/10G or SFP+) |
| Switching Capacity | Up to 256 Gbps |
| Forwarding Rate | Up to ~190.5 Mpps |
| Form Factor (H × W × D) | 1.72 in × 17.32 in × 18.11 in |
| Weight | ~27.56 lbs |
| Maximum Power Consumption | 670 W |
| PoE Budget | Up to 1,440 W |
| Operating Temperature | 0 °C to 45 °C |
