Extreme Networks 5320 16P 2MXT 2X 16 Port PoE Stackable Access Switch View larger

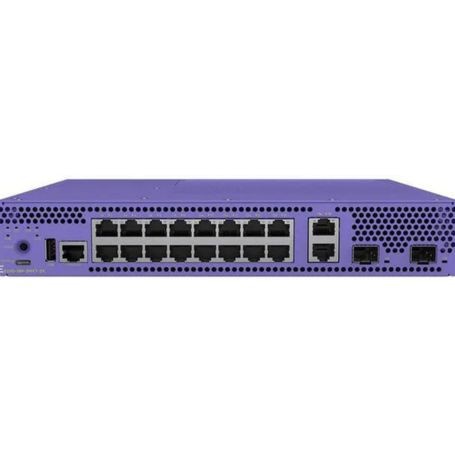

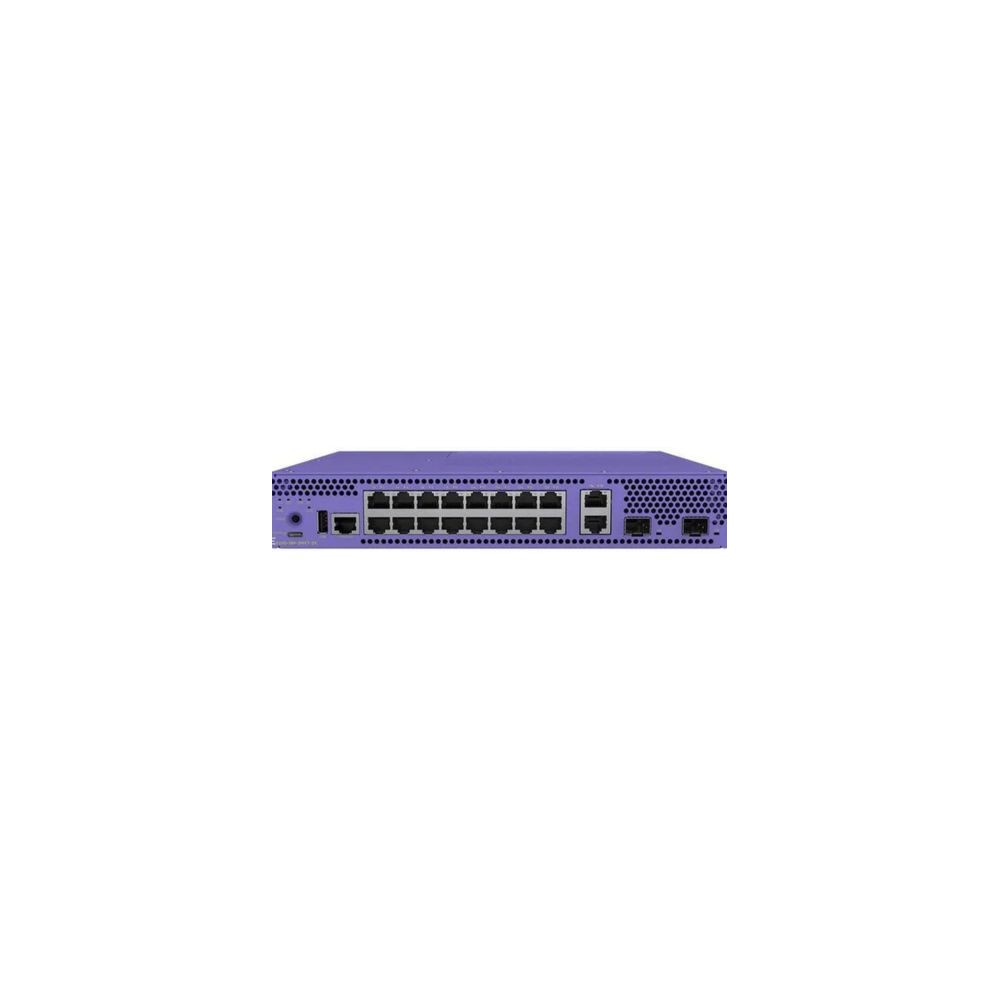

Extreme Networks 5320 16P 2MXT 2X 16 Port PoE Stackable Access Switch

5320-16P-2MXT-2X

New

Enterprise fanless access switch with multi-gig uplinks and 10G aggregation

×




Detailed Specifications

Extreme Networks 5320-16P-2MXT-2X – 16-Port PoE+ Access Switch

Overview :

The 5320-16P-2MXT-2X is part of the Extreme Networks 5320 Universal Edge switching platform, designed for enterprise campus access layers, branch deployments, and wiring closet aggregation.

It delivers a fanless, compact 1U access switch design with:

  • 16 × 10/100/1000BASE-T PoE+ ports (802.3at)
  • 2 × multi-gig uplinks (1/2.5/5/10GBASE-T)
  • 2 × 10G SFP+ uplinks (stacking / aggregation)

This model is optimized for silent enterprise deployments such as offices, classrooms, and edge wiring closets while still supporting high-speed uplinks for aggregation to distribution switches.

It supports Fabric Engine / Switch Engine operating modes, enabling advanced segmentation, automation, and cloud management via ExtremeCloud IQ.

Not suitable for:

  • Data center spine/leaf roles
  • High PoE budget environments requiring 60W+ per port

Key Features :

  • 16-port Gigabit PoE+ access switching for enterprise endpoints
  • Dual multi-gig uplinks up to 10GbE for flexible aggregation
  • 10G SFP+ ports for stacking or uplink redundancy
  • Fanless silent design suitable for office deployments
  • Supports Extreme Fabric Engine and cloud-managed operations

Specifications :

Spec CategoryValue
BrandExtreme Networks
Part Number5320-16P-2MXT-2X
Product TypeStackable Layer 2/3 Access Switch
Downlink Ports16 × 10/100/1000BASE-T PoE+ (30W per port)
Uplink Ports2 × 1/2.5/5/10GBASE-T
Stacking Ports2 × 10G SFP+
PoE StandardIEEE 802.3at PoE+
Switching Capacity~128 Gbps (platform family rating)
Forwarding Rate~95 Mpps (platform family rating)
ManagementExtremeCloud IQ / CLI / Switch Engine
Operating SystemFabric Engine / Switch Engine
Form Factor1U fixed access switch
AirflowFanless design
Serial ConsoleRJ-45 + USB-C console
USB PortsUSB-A (management / storage)
Operating Temperature0°C to 60°C
MountingRack / wall / desk mounting kits
Use CaseEnterprise access / campus edge
