Detailed Specifications

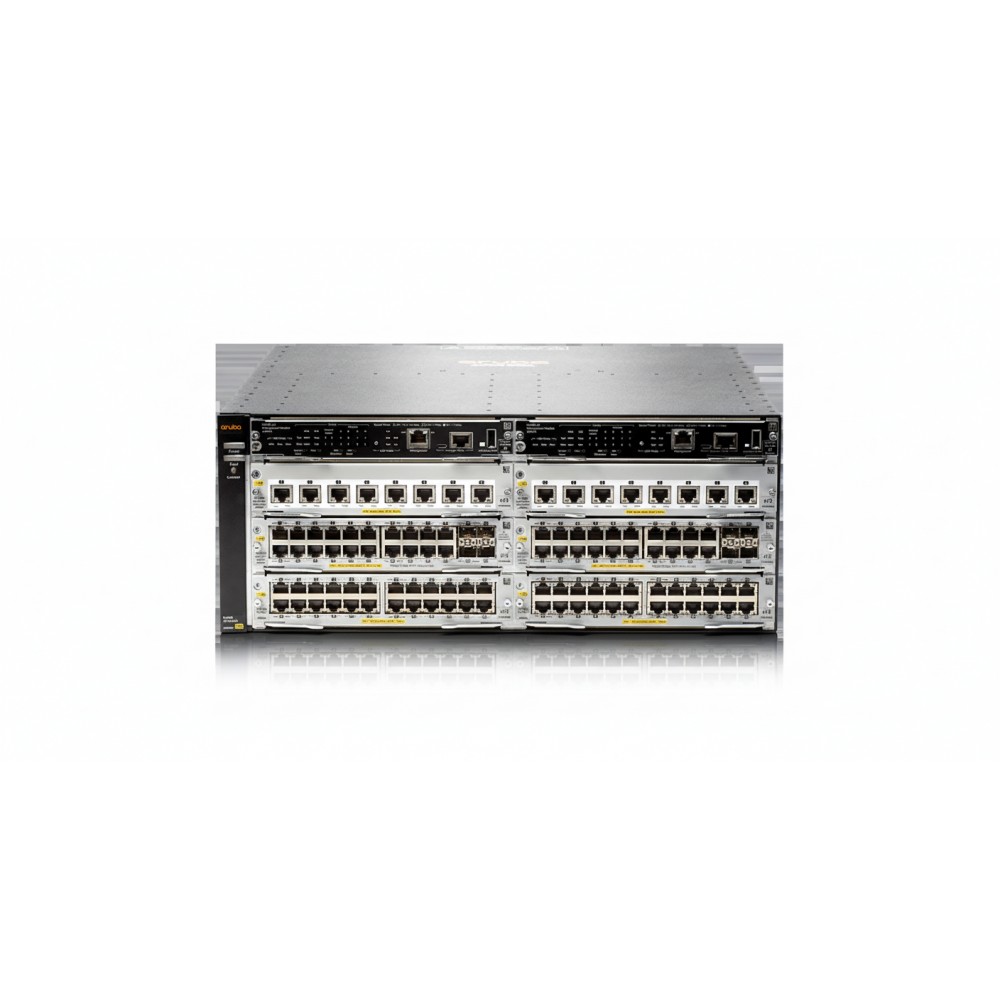

HPE J9822A Aruba 5412R zl2 Switch
Overview
The HPE J9822A is a modular chassis switch designed for IT infrastructure and network engineering teams deploying scalable campus aggregation or core-layer networks. It supports up to 12 open module slots and enables flexible port configurations×including combinations of autosensing 10/100/1000 Mb/s, SFP fibre, SFP+, multi-gig and 40 GbE line cards×making it suitable for high-density, high-performance environments. With a switching capacity of up to 1.92 Tb/s, low latency (as low as ~2.1 µs), and support for Virtual Switching Framework (VSF) stacking, it addresses mobile-first campus access with wireless aggregation and converged wired-wireless fabrics. The unit ships without power supplies or line modules; engineers must populate the chassis with appropriate modules and PSUs for their deployment needs. It is suitable for campus wiring-closet aggregation racks or data-centre edge roles within campus infrastructure.
Key Features
12 open module slots supporting up to 288 autosensing 10/100/1000 ports or 24 40 GbE ports.
Up to 1.92 Tb/s (1920 Gb/s) switching capacity in this chassis class.
Support for VSF stacking, hitless software upgrade and mobile-first fabric integration.
Four PSU slots (two minimum required) for redundant, scalable power infrastructure.
Module-based architecture with flexible port types (copper, fibre, multi-gig) for converged access.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | J9822A |
| Product Type | Aruba 5412R zl2 Switch (modular chassis) |
| Module Slots | 12 open slots |
| Maximum Autosensing Ports | Up to 288 × 10/100/1000 Mb/s or 96 SFP+ or 24 40 GbE |
| Power Supply Slots | 4 slots (2 minimum required) |
| Dimensions (W × D × H) | 17.5 in × 17.75 in × 12.1 in |
| Weight | 38.1 lbs |
| Routing/Switching Capacity | Up to 1.92 Tb/s (1920 Gb/s) |
| Packet Forwarding Rate | Up to ~1,142.8 Mpps |
| MAC Address Table Size | 64,000 entries |
| Latency (64-byte packets) | < 2.1 µs (for 40 GbE line rate) |
| Operating Temperature | 0 °C to 45 °C |
| Rack Units | 7 U |
